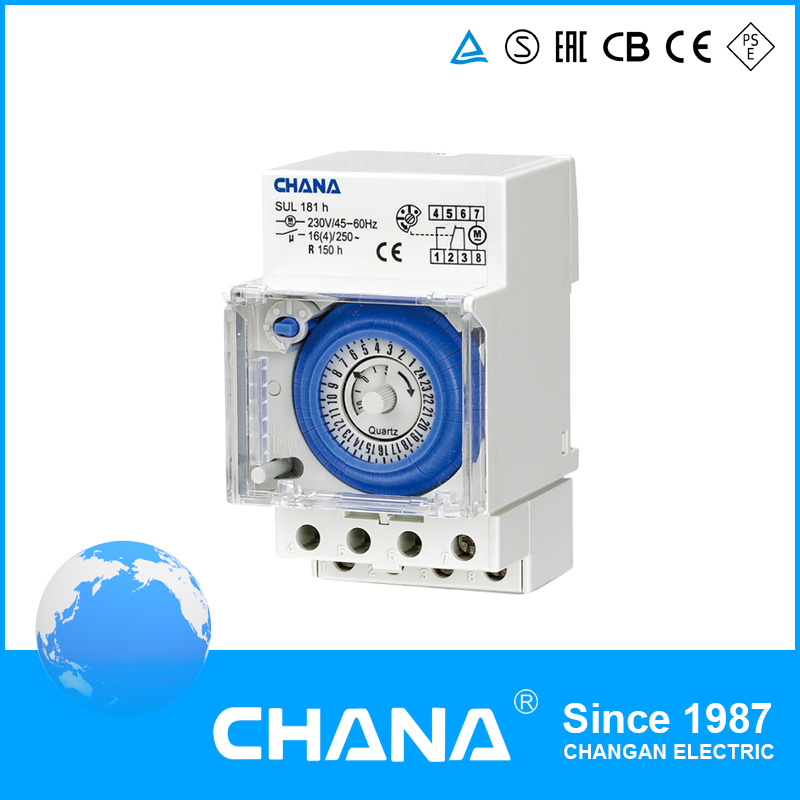

Name: Sul181h Mechanical Timer Relay Sul181h
Brand: all-electronics-online.com
SKU: 814774025
Availability: InStock
Rating: 4.6 (136 reviews)

Price:	US $ 7.5-8.4/Piece
Min Order:	100/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	SUL181H
Frequency:	50-60Hz
Drive:	Quartz-Controlled Stepper Motor
Width:	3modules
Installation Type:	DIN Rail
Type Of Connection:	Screw Terminals
Type Of Contact:	Changeover Contact
Type Of Protection:	IP20

Product Description

1. Technical Data

Classification		24 Hours Timer
Model		SUL181H
Contact Capacity		AC250V 16A
Full Timing Range		24h
Contact Resistance		≤50mΩ
Insulation Resistance		≥100mΩ
Coil Voltage		110,230V AC
Life	Electrical	10^5 times
	Mechanical	10^7 times
Operating Temperature		-40ºC+55ºC
Storage Battery (Working Reserve)		Time 150h
Minimum Setting Unit		30Minutes
Set up Times		30m/per times 48 times

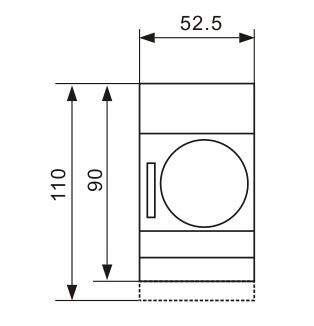

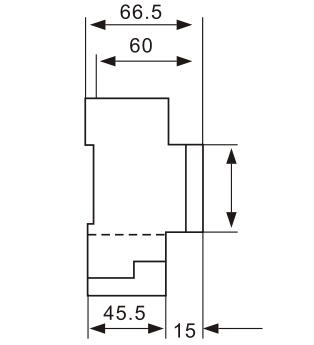

2. Dimensions (mm)

3. Company Profiles

4. Featured Products

Established in 1987, CHANGAN GROUP Co., Ltd. Has been acknowledged as one of the most respected nation-wide manufacturers and exporters of low-voltage electrical apparatus in P. R. China.

Comprising more than 62 factories with over 2500 employees and the whole corporation occupies 82000m2 ground during past 27 years.

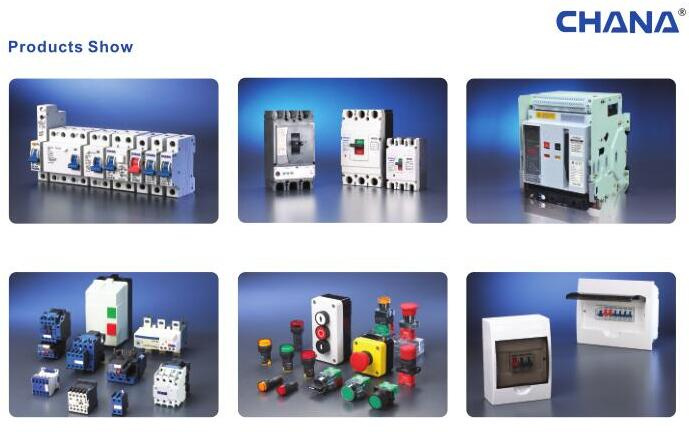

We manufacture and export varieties of low voltage electrical appliance including all kinds of CIRCUIT BREAKER, CONTACTOR, RELAY, SWITCH, SOLAR INVERTER etc.

All of our production procedures strictly follow ISO9001, ISO14001 and OHSAS18001, most of our products are certified such as SEMKO, TUV, CB and CE which can prove our guarantee quality and our products also have been chosen as "Chinese FAMOUS BRAND PRODUCT".

We not only make efforts in developing our own products with "CHANA"brand but also provide OEM services. Hope to establish good business relationships with your esteemed company in near future.
