Sulf-Support Aerial Use ADSS Fiber Optical Cables

Name: Sulf-Support Aerial Use ADSS Fiber Optical Cables
Brand: all-electronics-online.com
SKU: 784683035
Availability: InStock
Rating: 4.7 (130 reviews)

Price:	US $ 0.68-0.8/Meter
Trade Terms:	FOB,CFR,CIF
Min Order:	5000/Meter
Pay Type:	L/C,T/T,Money Gram,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	adss
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Model Number:	ADSS
Fiber Range:	2-288
Fiber Core:	12
Fiber Type:	Sm/mm
Jacket Material:	HDPE/at
Jacket Color:	Black
Working Temperature:	-40~+70
Export Markets:	Global
Span:	100m/200m/300m
Length:	3km/4km/5km
Application:	Communication
Type:	Single-mode Fiber
Connection Structure:	LC
Certification:	ISO9001
Sheath Material:	HDPE
Brand:	ADP

Product Description

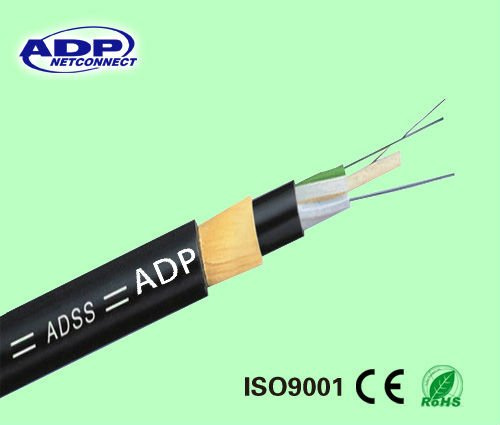

sulf-support aerial use ADSS fiber optical cables

Application:

The ADSS Cable is Telecommunication Cable.The fibers,250μm, either of single-mode or multimode type, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A layer of aramid yarn or high strength glass is applied around the cable core as additional strength member. Then, the cable is completed with a black or color HDPE/AT sheath.

1. Usable in Duct or Aerial or direct buried
2. Long-haul communication system
3. Junction communication system
4. Local area network systems

Features:

1. Can be installed without shutting off the power
2. Excellent AT performance, The Maximum inductive at the operating point of AT sheath can reach 25 KV
3. Light weight and small diameter reducing the load caused by ice and wind and the load on towers and backprops
4. Large Span lengths and the largest span is over 1000m
5. Accurate control on Aramid application greatly improving the strength of cables
6. Accurate fiber excess length and stranding pitch to ensure the good performance of tensile strength and the temperature
7. The design life span is over 30 years

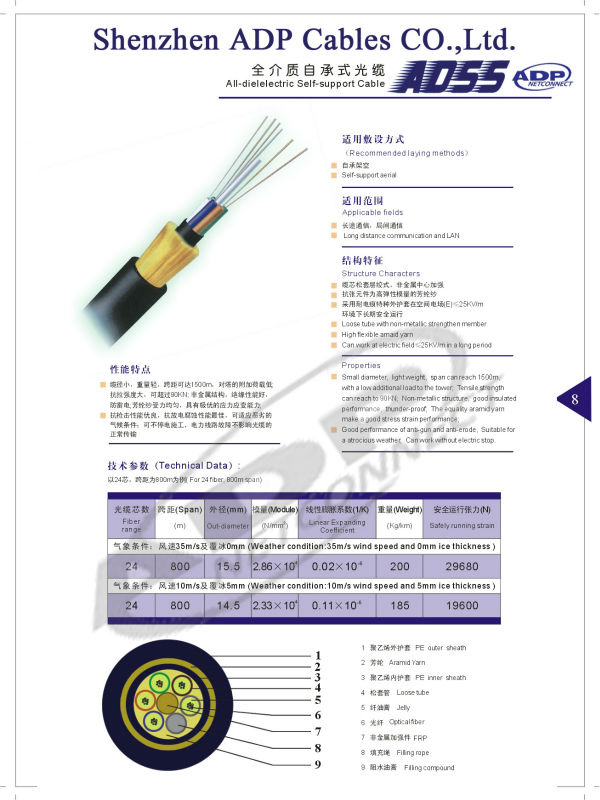

Data Sheet

Fiberr range	Span(m)	Out-diameter	Module N/mm2	Linear Expanding Coeffcient	Weight(kg/km)	Safty running strain
Weather condition:35m/s wind speed and 0mm ice thickness
24	800	15.5	2.86×104	0.02×10-6	200	29680
Weather condition : 10m/s wind speed and 5mm ice thickness
24	800	14.5	2.33×104	0.11×10-6	185	19600

Ms.Joan Xia

Shenzhen ADP Cables Co., Ltd. Was established in 2002 and is a professional manufacturer for Fiber Optic Cable, LAN cables, Coaxial cable, Security Alarm Cable.
Fiber Optic Cable indoor and outdoor, fiber pigtails, fiber patch cable; CAT3/CAT5E/CAT6/CAT6A/CAT7 cable, RJ11/RJ45 patch cord; 1pair -200pair Telelphone cable; Coaxail Cable RG6/RG58/RG59/RG11...SYV/SYWV serises...Fire Alarm Cable. And fiber patch cord, connector, accessories.

Our company is equipped with full sets coloring machines fiber ribbon forming machine, secondary coating lines, cabling lines, meshing machines, twisting machines, inspection equipment and instrument for all electrical, mechanical, temperature and environmental performance.

Our products strictly adhere to ISO 9001, CE and RoHS international standards, which also cover our design, development, services, and management. We have more than 100 employees, including 10 technical personnel. Our annual production value researches to USD200, 000, 000, giving us stable development and increased competitive power within the market.

We will continue being a people-oriented and faithful supplier offering technical support and good customer service. For more information, please visit our website or contact us directly with your questions or inquiries.
