| Appearance: |
Low Frequency Design with Isolated Transformer |
| Input Voltage: |
380VAC+N+W, 3 Phase |
| Crest Ratio: |
3:1 |
| Phase: |
Three Phase |
| Type: |
On-line |
| Protection: |
Overvoltage |
| Brand: |
Supstech |
Product Description

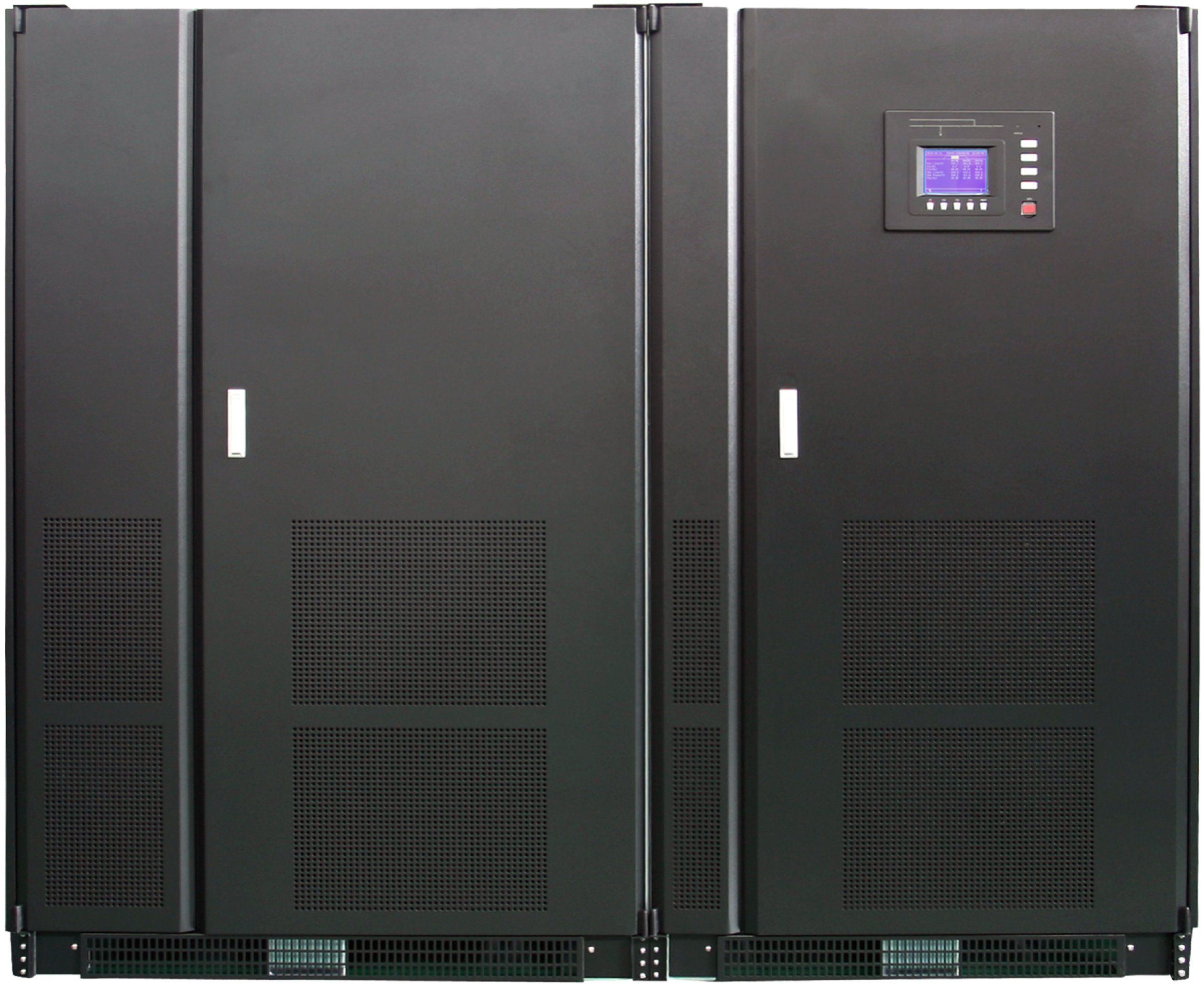

SUN-33T Series Low Frequency / Transformer Based Online UPS (160-500KVA)Sun-33T(160-500KVA) Series is a high end 3 Phase Input/Output transformer based UPS system. It adapts the innovative designing concept of integration. It also has significantly improved the efficiency and reliability. Product Performance Index has reached international level. With Multiple Digital Control Modules, such as DSP, MCU, and CPLD, RP-N can be non-prioritized paralleled up to 8 units to lower operating costs without compromising reliability, performance, and availability.High Performance Index
Advanced Rectifier and IGBT Technology. Input THDI≤4%, Input Power Factor ≥0.99 to save more energy.
Wide Input Voltage Range. High adaptive capacity and Generator Capability.
High Overload Ability -- can still working under 120% Overload for more than 10 minutes, 150% Overload
for more than 1 minutes.
Input Power Factor>0.99, THDI<4.5% with optional filters ;
Output Power Factor 0.9
Self-Evaluation and Alarm of Phase Misconnection or Lost.
Safe and Reliable
Series use full-digitized control to operate all power conversion sections during the operations, which has
higher system reliability
Cooling Fans internal Parallel Redundancy Design.
Output Isolated Transformer Built-in. It can reduce impacts and interferences from Load Harmonic Wave
Current and N-Wire Voltage.
90% of system components are from international brands. All devices has been aged and fully tested for at least 24 hours before leaving the factory.
Rich Accessories
Multiple communication interfaces integrated (RS232, RS485, Dry Contact, EPO, Etc.) ;
Optional SNMP communication adapter available
Compatible applications/loads
Front Maintenance. Available for top connections with protection devices.
Intuitive User Interface with large Dot-matrix LCD Screen and multi-functional keyboard.
| Capacity | 160KVA
144KW | 200KVA
180KW | 250KVA
225KW | 300KVA
270KW | 400KVA
360KW | 500KVA
450KW |
| Host Machine Specification |
| UPS Structure | Online Double Conversion |
| Appearance | Low Frequency with Output Isolated Transformer |
| Overall Efficiency (AC-AC) | 94% (Optional Accessories ) |
| Overall Efficiency (ECO ) | 98% |
| Noise(In 2 Meters) | 67dB |
| Working Temp. | 0-40ºC |
| Storage Temp | -15 ~ 50ºC(without batteries) |
| Humidity | <95%Non-Condensing |
| Safety Standard | IEC60950-1 ,IEC62040-1-1 |
| EMC Standard | IEC62040-2 ,IEC62040-3 |
| Parallel Redundancy | Parallel Redundancy Upto 8 Units |
| Protection | Overload, Short-Circuit, Over Temp., Utility Power Voltage High/low, BAT Voltage High/low |
| DC Start | Available |
| Generator Compatibility | Available |
| Display | LCD Display(Multi-Language with all kinds of messages)+LED |
| Mute | Auto |
| Cabinet Standard | IP20 |
| Cooling System | Intelligent Speed Control Cooling Fan |
| Elevation | <1500M without Derated |
| Rectifier Specification |
| Input Voltage | 380/400/415Vac+N+W, 3 phase |
| Input Voltage Range | 298-498Vac |
| Input Frequency Range | 50/60Hz ±10% |
| Soft-Start | Can be set for 5-600 Seconds |
| Input PF | 0.95(with input filter ) |
| THDI | <5%(with optional accessories) |
| Output Specification |
| Output Voltage | Line Voltage: 380×(1±1%)AC or Phase Voltage: 220×(1±1%)AC |
| Output Power Factor | 0.9 |
| Output Voltage Regulation | 380Vac±1%(Static Load);380Vac±2%(50-0% Sudden Change);380Vac±3%(100-0% Sudden Change) |
| Voltage Dynamic Response | ±5%,(0 ~100% Sudden Change) |
| Voltage Dynamic Response Time | <5ms |
| Synchronization Range | ±5% |
| Output Freq | ±0.02% (BAT Mode) |
| Input/Output Phase Swift | ≤1°(Balanced Load),≤2°(50% Balanced Load) |
| Frequency Tracking Range | 45-65Hz |
| Output Waveform | Pure Sine Wave |
| Overload | With output PF 0.9, 105%: Long time Operation,110%: 1 Hour,125%: 10 Mins,150%:1 Min |
| Crest Ratio | 3∶1 |
| Short-Circuit | Circuit Auto-Protection, Bypass Switch Tripping |
| Output Abnormal | INV. Output Auto-Locked Protection |
| Bypass Specification |
| Static Bypass Transfer Time | 0ms |
| Static Bypass Input Range | 380/400/415Vac(±10%,±15%,±20% Selectable) 3 Phase+N(3 Phase+N+PE) |
| Frequency Tracking Speed | 50/60Hz±10% |
| Bypass --> INV Transfer Time | 2ms |
| Frequency Tracking Speed | 200%: 5 Mins;1000%:10 Seconds |
| Manual Maintenance | Available |
| Battery Specification |
| Type | Sealed Lead Acid Maintenance Free |
| BAT Rated Volts/Units | 12V,384Vdc /32 Units |
| Float Charge Vottage | Equalized Charge, Float Charge, Intelligent Battery Management |
| BAT Low | Shutdown Protection |
| Communication Specification |
| Communication Port | RS232/SNMP/485/Dry Contact(Optional Accessory) |
| Remote Software | Multi-functional Monitoring System, Online and BAT Mode Status, BAT Fault, Remote Control |
| Physical Parameters |
| Size mm (D) | 855 | 855 | 855 | 855 | 855 | 860 |
| Size mm (H) | 1900 | 1900 | 1900 | 1900 | 1900 | 1900 |
| Size mm(W) 6 pulse | 1245 | 1245 | 1645 | 1645 | 2265 | -- |
| Size mm(W) 12 pulse | 1770 | 1770 | 2285 | 2285 | 2265 | 2900 |
| Net Weight Kg (6 pulse) | 1075 | 1075 | 1580 | 1580 | 2105 | -- |
| Net Weight Kg (12 pulse) | 1685 | 1685 | 2090 | 2090 | 2500 | 3000 |
