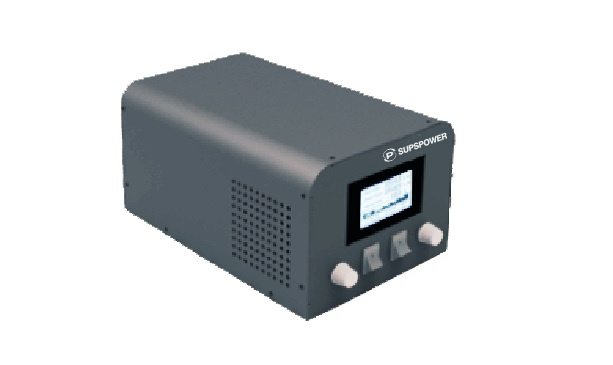

Sun-C Series Super Battery Charger

Name: Sun-C Series Super Battery Charger
Brand: all-electronics-online.com
SKU: 809748735
Availability: InStock
Rating: 4.7 (107 reviews)

Price:	US $ 20-250/Piece
Min Order:	200/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	SUN-C
Input Frequency:	40-70Hz
Display:	LCD
Efficiency:	>95%
Type:	Lead-Acid Battery Charger
Charging Type:	Electric Charger
Principle:	Single-Shock Charger

Product Description

SUN-C Series Super Charger

SUN-C Series super charger is designed for fast charging of different kinds of batteries, such as Lead-Acid, Gel Type, and Fiber Glass Type Batteries. It adapts MOSFET HF Circuit design, which can generate large charging current and save the batteries lifetime.

High Performance Index

Full Digitized CPU Control Design

Three stages variable charging voltage algorithm by timing for maximizing the battery lifetime ;

Wide Input Voltage and Frequency Range to adapt different grid systems;

Output Voltage, Current Adjustable ;

High Overall Efficiency and Integrity Design ;

Smart fan control for maximizing the performance and fan lifetime ;

Battery Node Misconnection Protection Function.

Compatible applications/loads

Sun-C Series is Suitable in the following Environments: SOHO, Office, POS, Manufacturing, and etc.

Model	Sun 40 - 12C	Sun 40 - 24C
Power	720W	1440W
Host Machine Specification
Efficiency	80% at 230Vac Full load, at 25 ºC working Temperature
Noise(In 2 Meters)	< 50dB
Working Temp.	_10ºC to +40ºC B8
Storage Temp.	--25 ~ 60ºC(Without BATs)
Humidity	< 95% Non-condensing
RFI Standard	GB7260.2/EN50091-2CLASS
Protections	Over Charged, Over-Temp. Overload
Display	LCD Display :Input Voltage/Frequency, BAT Voltage, Output Current
Cooling System	Smart Fan Control
AC Input Parameters
Input Voltage	220Vac
Input Voltage Range	90-280VAC(180-280VAC full performance ,90-180VAC automatically derated to 50% of full load current )
Input Frequency	40-70Hz
DC Output Parameters
Input Voltage	220/200/230/240Vac Single Phase
Output Nominal Voltage	12V or 24V manual adjustable (Can Parallel 2 Chargers together )
Output Voltage	14.4V dc
Efficiency	>95%
Output Current( A)	Normal is 40A; When working under derated mode is 20A	Normal is 20A; When working under derated mode is 10A
Current Accuracy	±6%
Physical Parameters
Size mm(DxWxH)	2224x255x80
Net Weight Kg	1.7
