Sunbow Aromatic Polyamide Paper Tubing
| Price: |
US $ 0.03-19.33/Meter |
| Min Order: |
3000/Meter |
| Pay Type: |
L/C,T/T,Western Union,Paypal |
| Prod Model: |
SB-APPT |
| Materials: |
Aromatic Polyamide Paper |
| Length: |
10~1000mm |
| I.D Range: |
2.0~65mm |
| Thickness: |
0.05~1mm |
| Application: |
Wire Harness etc |
| Type: |
Insulation Sleeve |
| Chemistry: |
Organic Insulation |
| Maximum Voltage: |
<10KV |
| Material: |
Aromatic Polyamide Paper |
| Thermal Rating: |
220c |
| Certification: |
Ts16949 |
| Color: |
All Colors |
| Brand: |
Sunbow |
Product Description

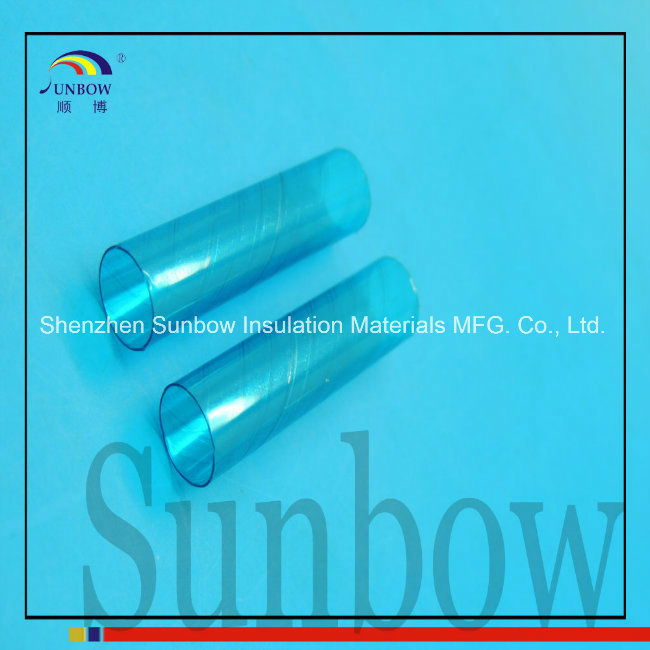

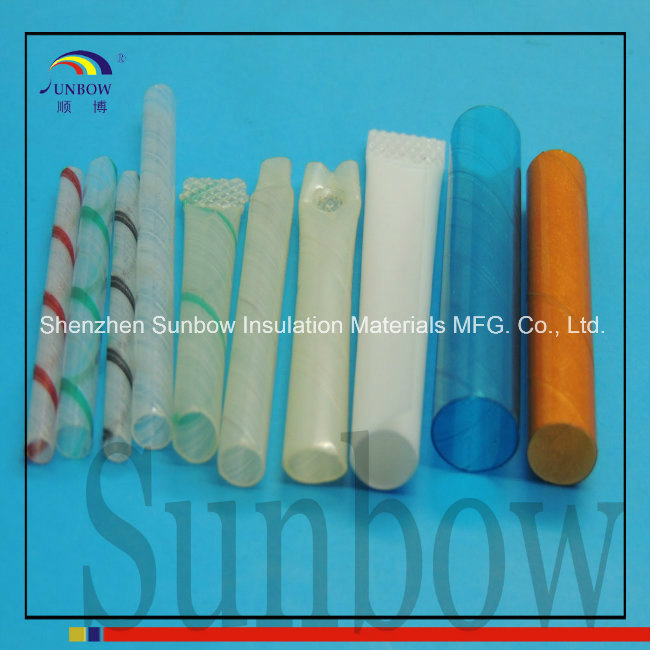

Model Number:SB-APPTWorking temperature:
-60ºC ~ +220ºCStructureAromatic polyamide paper tubing is manufactured by twisted aromatic polyamide paper then adhesive by special glue. The glue possesses similar chemical characteristics with polyester film. UsageMain application range: insulation and mechanical protection for soldering, connection, wire harness, transformer, motor, cable, heating element, capacitor, telephone, electrical appliance etc. Characteristics| Dimension | Inside diameter 2.0-65(mm),Thickness 0.05-1(mm), Length 10-1000(mm) |
| Color | Natural color, clear, yellow, stripe available |
| Dielectric strength | After polishing, it can withstand 18~40KV/mm short time voltage field strength. It is not necessary to do further treatment with vanish or resin. Due to the low dielectric strength of Aromatic polyamide paper product, the electric field is distributed averagely between insulation and cooling dielectric. |
| Mechanical tenacity | Excellent intensity, high flexibility, high performance of wear resistance |
| Thermal stability | Compliant with UL standard and can work under 220°C stably more than 10 years. |
| Chemical compatibility | Resistance to acid and alkali. It is compatible with all varnish, adhesive, transformer liquid, lubricant and coolant. Beside, Aromatic polyamide paper is not easy to be destroyed by insect, epiphyte and mildew. |
| Low temperature performance | In the boiling point(77k)of nitric, the strength of T410insulation paper and Aromatic polyamide paper exceed the strength under room temperature |
| Humidity resistance | Although the product is wet more than 95%, its dielectric strength is totally dry in 90%. Consequently, many mechanical characteristics changed |
| Radiation resistance | Even though the ionization strength up to 800 Mrad (8MGy), Aromatic polyamide paper won't be affected. Moreover, it will maintain its mechanical and electrical properties after 8 times radiation. |
| Non-toxic/fire endurance | It is no harmful to human and environment. It doesn't melt in air. It's fireproof. Its oxygen restriction index is higher than 20.8 in 220°C, so it won't catch fire. Aromatic polyamide paper products compliant with all restrictions in UL94 V-0 standard. |
Note: Besides above dimension, can manufacture other dimension upon request.

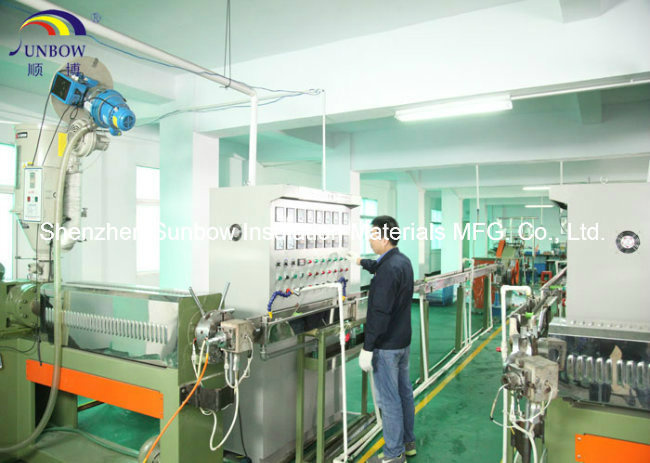

Shenzhen Sunbow Insulation Materials MFG. Co., Ltd, established in 2003, mainly engaged in the research & development, manufacture and sale of various insulation sleeving. And we had leading R&D engineers, had a batch of advantageous equipment and testing instruments. Now we had excess of 10 independent patents, gained high-tech enterprise in Shenzhen.
Our main products include fiberglass sleeving, silicone rubber tube, PVC tube, heat shrink tube, PTFE/FEP tube and so on. All our fiberglass sleeving had been obtained the UL and CSA certificates in 2010 (Cert No: E333178--UZIQ2, VW-1 for flame resistance requirement & E333177--UZFT2/8, 200C, 600V for thermal resistance requirement); Our heat shrink tube, silicone rubber tube and PTFE tube had been obtained UL certificate in 2013 (Cert. No. E360625); PVC tube had been obtained the UL certificates In in Apr. 2014 (Cert. No. E467953); In May. 2012, our products successfully had been passed CQC test (Certificate No. CQC12134072554). It provides security for domestic and foreign home appliance supplier in Chinese mainland market. Till now, we are the only one fiberglass sleeving manufacturer which obtained UL, CSA, and CQC certificates. Also we are the only one manufacturer which can provide certificates for all color and maximum size range (from 0.55mm to 25.4mm). Also all our products are in conformance with the European RoHS requirements, furthermore, based on European new requirements, we re-applied and obtained German PFOA and PFOS certificates and European Reach report.
Our products are widely used in H&N Motor, home appliance, electric heating equipment, Lighting, electronic instruments, wiring harness, transformer, power adapter, communication equipment, high/low voltage power distribution complete equipment, petrochemical industry, coal-mining industry, electric system and space flight and aviation area etc.

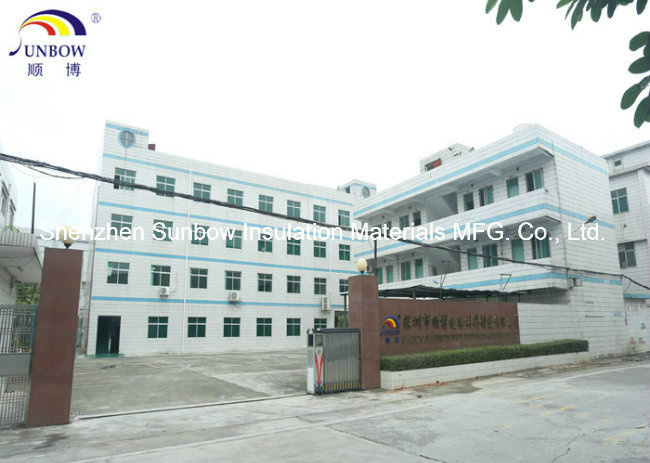

Due to business expansion, our factory moved to Gongming street, Guangming New District in Shenzhen. It occupies nearly 10, 000 square meters. We successfully passed ISO9001: 2008 and TS16949 international quality management system, now ISO14001 system is also pushing.
Over the years, we have been enjoying good reputation in our industry by adhering to the business philosophy of "Faith, Practical, and Responsive. " We also get supports and trusts from many international well-known enterprises. Thanks greatly for so many help and cooperation from our partnership, such as Philips, Whirlpool, Conair, Emerson, GE, Black & Decker, SEB, ABB, Schneider, Siemens, Electrolux, Toshiba, Panasonic, Hitachi, Mitsubishi, Samsung, China's Huawei, Haier, CRRC, and many other famous enterprises' trust directly and indirectly; Furthermore, as the second level supplier for automotive system, Sunbow products have been indexed in IMDS. We also have successfully become the qualified supplier for Volvo, Land-Rover, GM, Honda, Suzuki, Nissan, Hyundai and so on.
We know that our task is long-term and arduous, but opportunities are aside with challenges. We "Sunbow" people will take on a new look and work hard to provide our customers the best quality products, first-rate service, the most competitive price and the most reliable technical supports. Return to our customers, return on the community.
