Sunbow Cold Shrink Silicone Rubber Breakouts for Cables

Sunbow Cold Shrink Silicone Rubber Breakouts for Cables
Price: US $ 0.2-33.22/Piece
Min Order: 100/Piece
Pay Type: L/C,T/T,Western Union,Paypal
Prod Model: SB-WCSF
Core No.: 3 or 4 or 5 or 6
Application Range: 38~130mm
Application: Cables etc
Type: Insulation Sleeve
Chemistry: Organic Insulation
Material: Rubber
Thermal Rating: 200 200
Maximum Voltage: <10KV
Certification: Ts16949
Color: All Colors
Brand: Sunbow

Product Description

Sunbow Cold Shrink Silicone Rubber Breakouts for Cables

Model Number: SB-WCSF
Cold shrink silicone rubber breakouts are factory expanded and mounted on removable inner supporting plastic cores. They are supplied for field installation in a pre-stretched condition. The supporting cores are removed after the seal has been positioned for installation around the breakout area of a 3,4,5,6/C (3,4,5,6 conductor) cable. Core removal allows the silicone rubber boot to shrink down to a predetermined diameter; creating an environmental Enclosure for individual cable phase legs and the overall cable jacket.

Features and Benefits
Versatile: installs quickly and accommodates a wide range of cable sizes;
No torches or heat required;
No specific user skills or craftsmanship required;
Excellent resistance to ozone and ultra-violet radiation;
Good solvent resistance compatible with industry approved cable cleaners;
Excellent thermal stability.

Dimension
No.CoreID (As supplied)
¢C
Application
range Rc
D (As supplied)
¢F
Application
range Rc
LFLC
13Ø77/ Ø36Ø38-Ø67Ø32/ Ø14Ø16- Ø2645130
2Ø88/ Ø 43 Ø45-Ø78 Ø35/ Ø16 Ø18- Ø2945135
3Ø104/ Ø50Ø52-Ø94Ø40/ Ø 20 Ø22- Ø3445150
4Ø120/ Ø59 Ø61-Ø110Ø47/ Ø23Ø25- Ø4145165
5Ø140/ Ø72Ø74-Ø130 Ø60/ Ø 28Ø30- Ø5455180
64Ø65/Ø20 Ø22-Ø55 Ø20/Ø6 Ø8-Ø14 35125
7Ø80/Ø28Ø30-Ø70Ø25/Ø8Ø10-Ø1940137
8Ø88/Ø40 Ø42-Ø78 Ø32/Ø10Ø12-Ø2640145
9Ø104/Ø40 Ø42-Ø94 Ø40/Ø10Ø12-Ø3640145
105Ø80/Ø26 Ø28-Ø70Ø20/Ø6Ø8-Ø14 40123
11Ø88/Ø36 Ø38-Ø78 Ø25/Ø8 Ø10-Ø1940134
12Ø110/Ø47 Ø49-Ø100Ø35/Ø11Ø13-Ø2945138
13Ø120/Ø47Ø49-Ø110Ø40/Ø11 Ø13-Ø3645138
146Ø104/Ø35 Ø37-Ø94 Ø32/Ø10 Ø12- Ø2660135


Shenzhen Sunbow Insulation Materials MFG. Co., Ltd, established in 2003, mainly engaged in the research & development, manufacture and sale of various insulation sleeving. And we had leading R&D engineers, had a batch of advantageous equipment and testing instruments. Now we had excess of 10 independent patents, gained high-tech enterprise in Shenzhen.

Our main products include fiberglass sleeving, silicone rubber tube, PVC tube, heat shrink tube, PTFE/FEP tube and so on. All our fiberglass sleeving had been obtained the UL and CSA certificates in 2010 (Cert No: E333178--UZIQ2, VW-1 for flame resistance requirement & E333177--UZFT2/8, 200C, 600V for thermal resistance requirement); Our heat shrink tube, silicone rubber tube and PTFE tube had been obtained UL certificate in 2013 (Cert. No. E360625); PVC tube had been obtained the UL certificates In in Apr. 2014 (Cert. No. E467953); In May. 2012, our products successfully had been passed CQC test (Certificate No. CQC12134072554). It provides security for domestic and foreign home appliance supplier in Chinese mainland market. Till now, we are the only one fiberglass sleeving manufacturer which obtained UL, CSA, and CQC certificates. Also we are the only one manufacturer which can provide certificates for all color and maximum size range (from 0.55mm to 25.4mm). Also all our products are in conformance with the European RoHS requirements, furthermore, based on European new requirements, we re-applied and obtained German PFOA and PFOS certificates and European Reach report.

Our products are widely used in H&N Motor, home appliance, electric heating equipment, Lighting, electronic instruments, wiring harness, transformer, power adapter, communication equipment, high/low voltage power distribution complete equipment, petrochemical industry, coal-mining industry, electric system and space flight and aviation area etc.

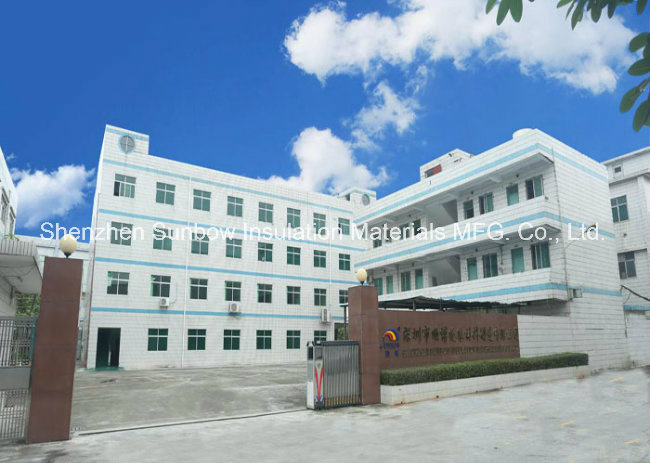

Due to business expansion, our factory moved to Gongming street, Guangming New District in Shenzhen. It occupies nearly 10, 000 square meters. We successfully passed ISO9001: 2008 and TS16949 international quality management system, now ISO14001 system is also pushing.

Over the years, we have been enjoying good reputation in our industry by adhering to the business philosophy of "Faith, Practical, and Responsive. " We also get supports and trusts from many international well-known enterprises. Thanks greatly for so many help and cooperation from our partnership, such as Philips, Whirlpool, Conair, Emerson, GE, Black & Decker, SEB, ABB, Schneider, Siemens, Electrolux, Toshiba, Panasonic, Hitachi, Mitsubishi, Samsung, China's Huawei, Haier, CRRC, and many other famous enterprises' trust directly and indirectly; Furthermore, as the second level supplier for automotive system, Sunbow products have been indexed in IMDS. We also have successfully become the qualified supplier for Volvo, Land-Rover, GM, Honda, Suzuki, Nissan, Hyundai and so on.

We know that our task is long-term and arduous, but opportunities are aside with challenges. We "Sunbow" people will take on a new look and work hard to provide our customers the best quality products, first-rate service, the most competitive price and the most reliable technical supports. Return to our customers, return on the community.
