Sunbow Waterproof Polyurethane Fiberglass Braided Insulation Electrical Sleeving

Sunbow Waterproof Polyurethane Fiberglass Braided Insulation Electrical Sleeving
Price: US $ 0.19-0.25/Meter
Min Order: 3000/Meter
Pay Type: L/C,T/T,Western Union,Paypal
Prod Model: SB-PUGS
Size: 0.5~35.0mm
Working Temperature: -40~155c
Thermal Endurance: No Crack (400+/-5c 6hrs Aging)
Flame Resistance: Yes
Properties: No Flexibility, Insulation, Oil Resistance
Certifications: RoHS
Thickness: 0.41-1.1mm
Product Name: Sunbow Waterproof Polyurethane Fiberglass Sleeving
Average Voltage: 1.5kv 2.5kv 4.0kv
Tensile Strength: Excellent
Application: Bus Bars
Type: Insulation Sleeve
Chemistry: Hybrid Insulation
Material: Fiberglass
Maximum Voltage: <10KV
Thermal Rating: 500
Certification: RoHS
Color: All Color Is Available
Brand: Sunbow

Product Description

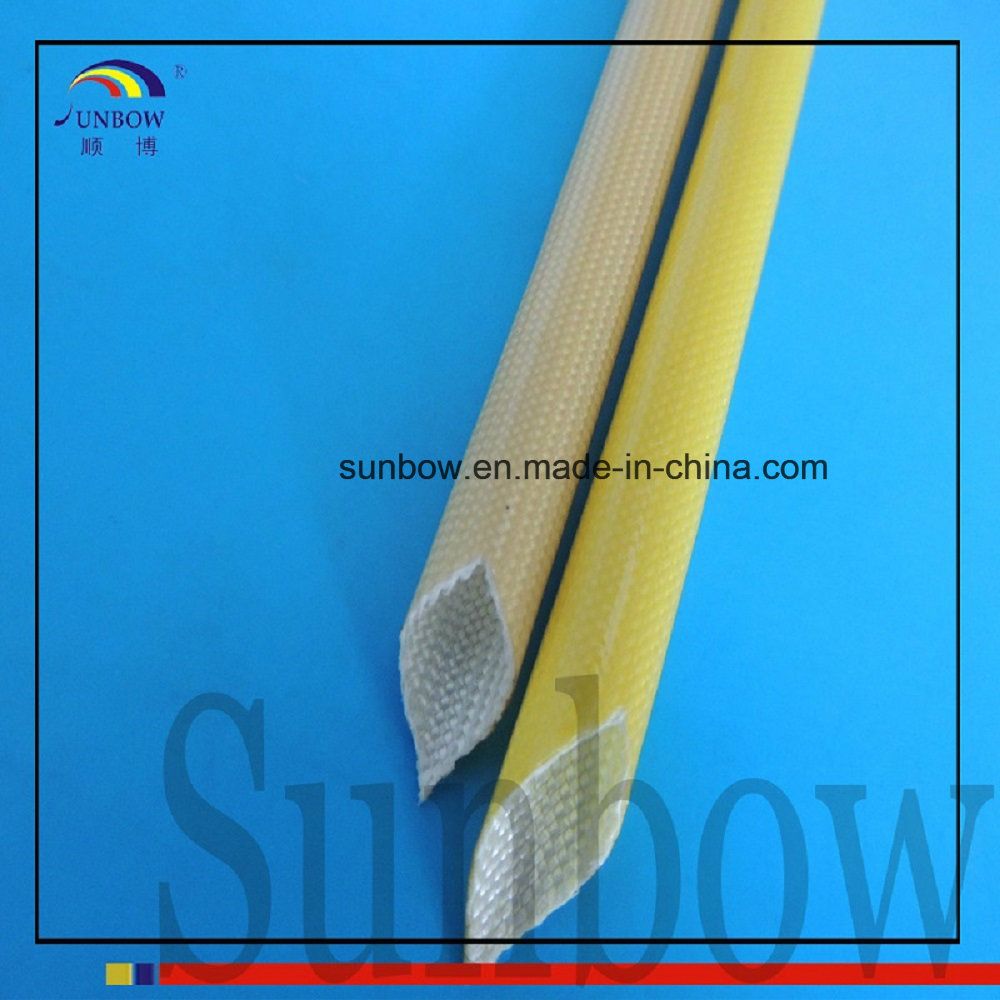

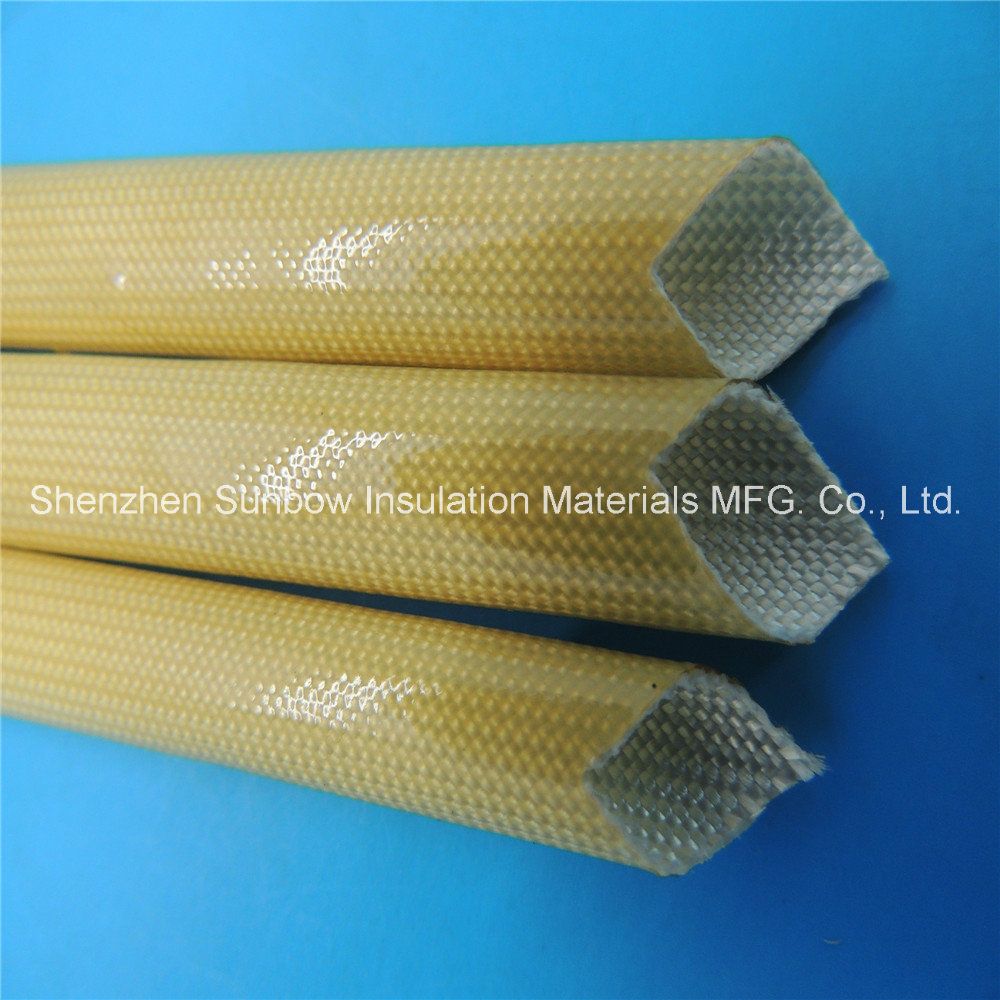

Sunbow Waterproof Polyurethane Fiberglass braided Insulation electrical sleeving

1. Model

SB-PUGS



2. Working Temperature

155C



3. Structure

1) non-alkali fiberglass braided,
2)coated with polyurethane resin and treated in high temperature.



4. Characteristics

1) thermal property: it can endure 170°c high temperature for about 3 hours.

2) chemical property: it has excellent oil resistance and benzene resistance.

3) electrical property: 300V rated voltage

4) excellent mechanical wearproof and elasticity

5) SGS, RoHS certifications

5. Usage

 F Grade electrical machinery and electric appliances.


6.Dimension

   I.D.(mm)

Tolerance

(mm)

Thickness(mm)

Breakdown voltage

1500V

Thickness(mm)

Breakdown voltage

2500V

Thickness(mm)

Breakdown voltage

4000V

Thickness(mm)

Breakdown voltage

7000V

0.5 to 3.5+0.2-0.10.38±0.120.41±0.120.45±0.150.52±0.15
4.0 to 9.0+0.2-0.10.42±0.150.46±0.150.48±0.150.55±0.15
10 to 16+0.5-0.10.50±0.200.52±0.200.58±0.200.65±0.20
18 to 35+0.7-0.10.65±0.250.70±0.250.75±0.251.10±0.30

7.Performance

PropertyStandard
Heat resistance170ºCx3 hours   No cracking in the surface
Chemical resistanceExcellent oil resistance and benzene resistance
Electrical performanceRated voltage 300V
The polyurethane glassfiber sleeving is manufactured according to European and American standard. It possesses excellent compatibility and adaptability in the applications of all kinds of electrical equipment and electrical machine. There are still many good features of this sleeving need to explore.


9.Certification

8. Our Services


1) 3~5 workdays of delivery

 2 years quality guarantee

3) prompt feedback

4) 24hrs on line service



9. About Sunbow

1) 10-year exporting experience

2) 15-year manufacturing experience

3) ISO9001:2008 approved

4) product certifications: CUL (E333178---UZIQ2 VW-1; E333177---UZFT2/8  200C  600V)

5) business partners:

Sanyo, Panasonic & Tiger, SEB, Philips, Black & Decker, Emerson & Conair, HOT, IKEA and Midea


Shenzhen Sunbow Insulation Materials MFG. Co., Ltd, established in 2003, mainly engaged in the research & development, manufacture and sale of various insulation sleeving. And we had leading R&D engineers, had a batch of advantageous equipment and testing instruments. Now we had excess of 10 independent patents, gained high-tech enterprise in Shenzhen.

Our main products include fiberglass sleeving, silicone rubber tube, PVC tube, heat shrink tube, PTFE/FEP tube and so on. All our fiberglass sleeving had been obtained the UL and CSA certificates in 2010 (Cert No: E333178--UZIQ2, VW-1 for flame resistance requirement & E333177--UZFT2/8, 200C, 600V for thermal resistance requirement); Our heat shrink tube, silicone rubber tube and PTFE tube had been obtained UL certificate in 2013 (Cert. No. E360625); PVC tube had been obtained the UL certificates In in Apr. 2014 (Cert. No. E467953); In May. 2012, our products successfully had been passed CQC test (Certificate No. CQC12134072554). It provides security for domestic and foreign home appliance supplier in Chinese mainland market. Till now, we are the only one fiberglass sleeving manufacturer which obtained UL, CSA, and CQC certificates. Also we are the only one manufacturer which can provide certificates for all color and maximum size range (from 0.55mm to 25.4mm). Also all our products are in conformance with the European RoHS requirements, furthermore, based on European new requirements, we re-applied and obtained German PFOA and PFOS certificates and European Reach report.

Our products are widely used in H&N Motor, home appliance, electric heating equipment, Lighting, electronic instruments, wiring harness, transformer, power adapter, communication equipment, high/low voltage power distribution complete equipment, petrochemical industry, coal-mining industry, electric system and space flight and aviation area etc.

Due to business expansion, our factory moved to Gongming street, Guangming New District in Shenzhen. It occupies nearly 10, 000 square meters. We successfully passed ISO9001: 2008 and TS16949 international quality management system, now ISO14001 system is also pushing.

Over the years, we have been enjoying good reputation in our industry by adhering to the business philosophy of "Faith, Practical, and Responsive. " We also get supports and trusts from many international well-known enterprises. Thanks greatly for so many help and cooperation from our partnership, such as Philips, Whirlpool, Conair, Emerson, GE, Black & Decker, SEB, ABB, Schneider, Siemens, Electrolux, Toshiba, Panasonic, Hitachi, Mitsubishi, Samsung, China's Huawei, Haier, CRRC, and many other famous enterprises' trust directly and indirectly; Furthermore, as the second level supplier for automotive system, Sunbow products have been indexed in IMDS. We also have successfully become the qualified supplier for Volvo, Land-Rover, GM, Honda, Suzuki, Nissan, Hyundai and so on.

We know that our task is long-term and arduous, but opportunities are aside with challenges. We "Sunbow" people will take on a new look and work hard to provide our customers the best quality products, first-rate service, the most competitive price and the most reliable technical supports. Return to our customers, return on the community.
