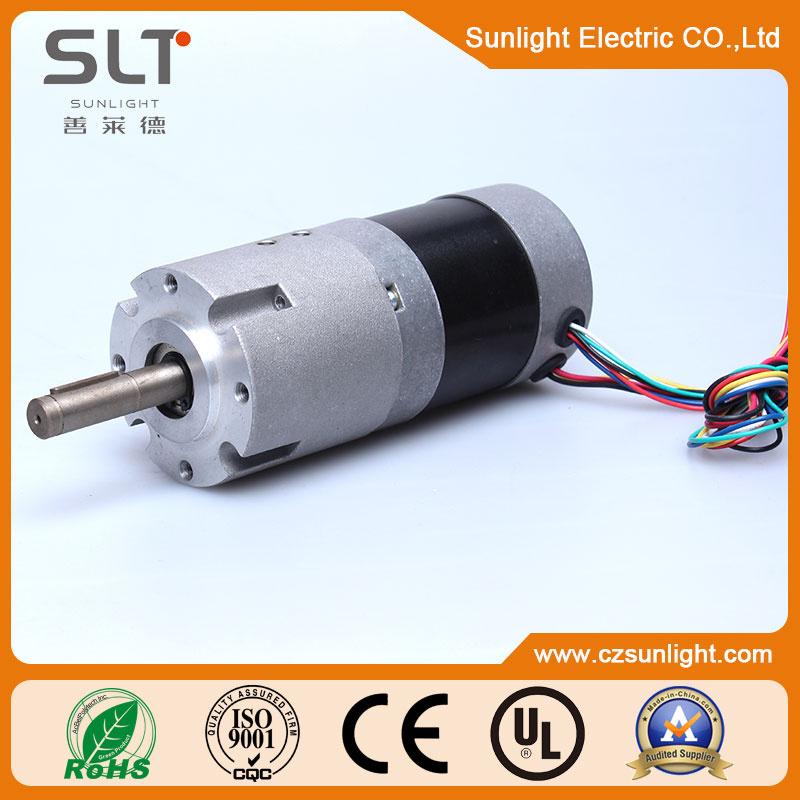

Sunlight 24V 5A Torque Control DC Brushless Motor for Bus

Prod Model:	SLT57BG02
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Ratio:	16I
Voltage:	24V
No Load Speed:	500rpm
Rated Torque:	220n.M
Rated Speed:	3650rpm
Rated Current:	5A
Stall Torque:	550mnm
Rotor Inertia:	11.9kgmm²
Weight:	1kg
Rotor:La:	41mm
Application:	Medical Equpiments
Operating Speed:	Constant Speed
Excitation Mode:	Compound
Structure And Working Principle:	Brushless
Certification:	Ce
Brand:	Slt

Product Description

Parameters:

Model:SLT57BG02
Voltage:24V
No Load Speed:5000rpm
Rated torque:220N.m
Rated Speed:3650rpm
Rated Current:5A
Stall torque:550mNm
Weight:1Kg
Rotor:La:41mm


Advantages of SUNLIGHT 24V 5A Torque Control DC Brushless Motor for Bus

a: Save cost, price is low
b: Better reliability.
c: Low energy consumption.
d: Speed is steady.
e: Easy to run and adjust the speed.
f: Small size, easy to carry.
g: Application range is super wide.

SUNLIGHT 24V 5A Torque Control DC Brushless Motor for Bus Specification

SLT57BG02-Brushless Motor
Model				SLT57BG02
output shaft speed		RPM		310
Ratio		i		16
Motor  Parameter
Voltage		V	24
No load speed		rpm	5000
Rated torque		Nm	220
Rated speed		rpm	3650
Rated current		A	5
Stall torque		mNm	550
Stall current		A	12
Rotor inertia		Kgmm²	11.9
Black-EMFconstant		V/krpm	3
Torque Constant		Nm/A	48
Resistance(20ºC)		ohm	0.65
Weight		Kg	1
Rotor:La		mm	41

Applications of SUNLIGHT 24V 5A Torque Control DC Brushless Motor for Bus

A:Car (Fan,View mirror,wiper blade,car seat adjustment and so on.)
B.Home Applicance ( Electric cooker, Electric mop and other products.)
C.Medical equipments and beauty products.
D.Office products (such as printer, scanner......)
E.Other Fields.
