| Prod Model: |
ENS12/24-20D |
| Charging Voltage: |
12/24V auto detection |
| Rated Charge Current: |
20A |
| Rated Discharge Current: |
20A |
| Max.PV Input Power: |
300W@12V*2/24V |
| Efficiency: |
Max. 90% |
| Battery Type: |
GEL,AGM |
| N.W.,G.W.: |
770g,880g |
| Casing Material: |
Plastic and Alluminum alloy |
| Warranty: |
2 years |
| Delivery Time: |
7 days for sample order,30-45days for batch order |
| Task: |
Adjust |
| Structure: |
Combination |
| Mathematical Model: |
Non-Linear |
| Signal: |
Continuous |
| Function: |
Automatic Control |
| Certification: |
CE |
| Condition: |
New |
| Customized: |
Customized |
| Material: |
Aluminum Alloy |
Product Description

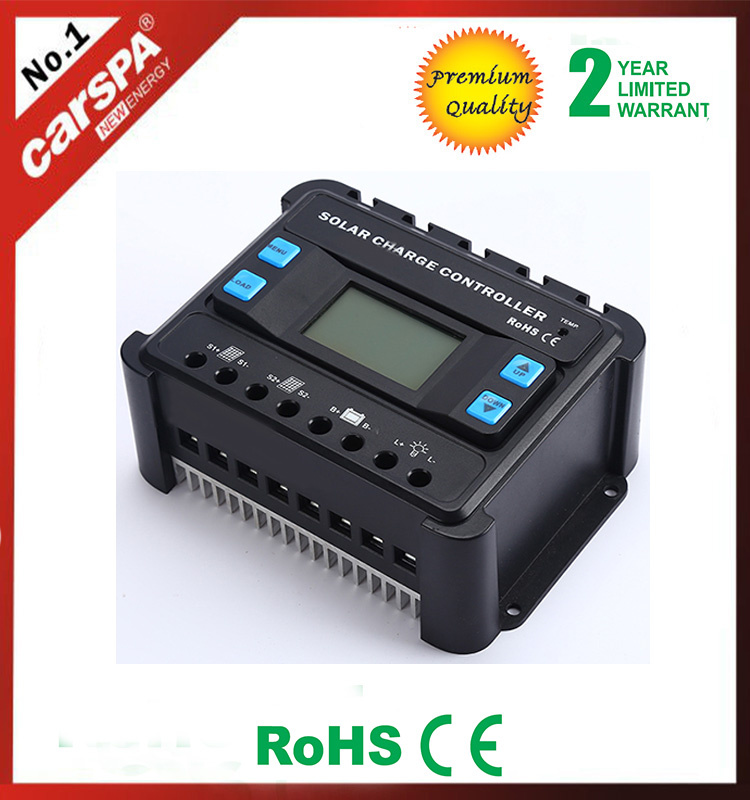

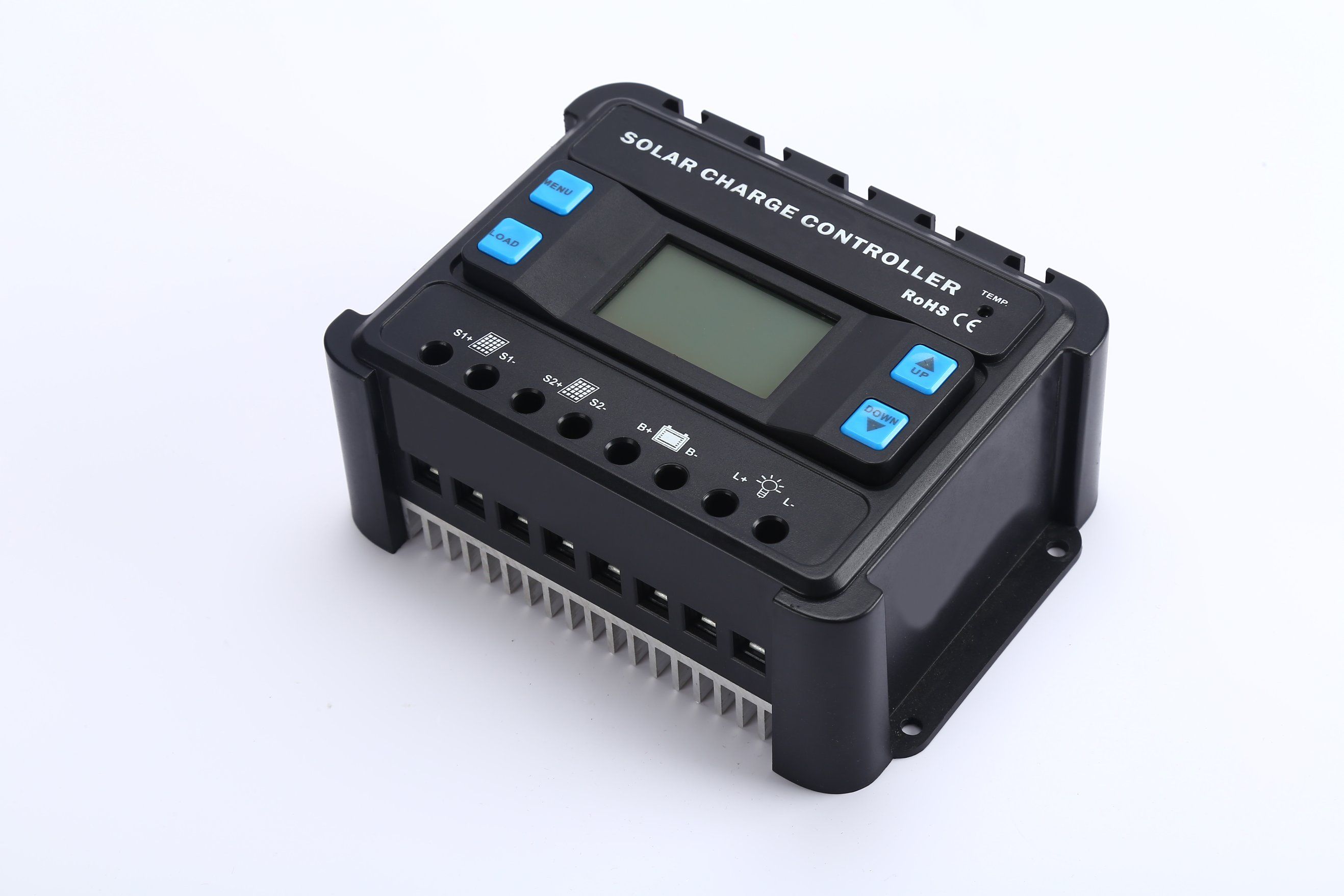

Sunpulse 12V 20A PWM Solar Charge Regulator Solar Panel Regulator
The solar charge controller is one of key components of the PV off-grid solar system;CARSPA ENS series PWM solar controller can adopt different charge way based on different batteries and the environment.It is designed with big clear LCD display with 4 buttons to switch different screens.Double solar panel inputs applied makes it more reliable,and the bottom aluminum radiation can make it work properly when the unit gets hot.
Products Features:
1.Pulse Width Modulation Technology,which offers the good efficiency of your PV system.
2.Automatically detects 12/24V or 24/48V system voltage.
3.LED indicators or LCD display by symbol and data.
4.Temperature-compensated,3-stage I-U curve charge regulation.
5.Full electronic protection -reverse polarity,over-current,short-circuit,over temperature,current drawback,lightning etc.
6.High efficiency.
7.Dual terminals for solar input.
8.Battery type can be:GEL,AGM and solar battery etc.
LCD Screen Display Function:
The PWM controller is equipped with a big LCD display panel and 4 buttons.There is one main window and sever different screens display different states by pressing the menu button to change the states.
If LCD screen in main menu,press"MENU",then change to submenu.If in sunmenu,press "UP" or "DOWN",you can change to different states.

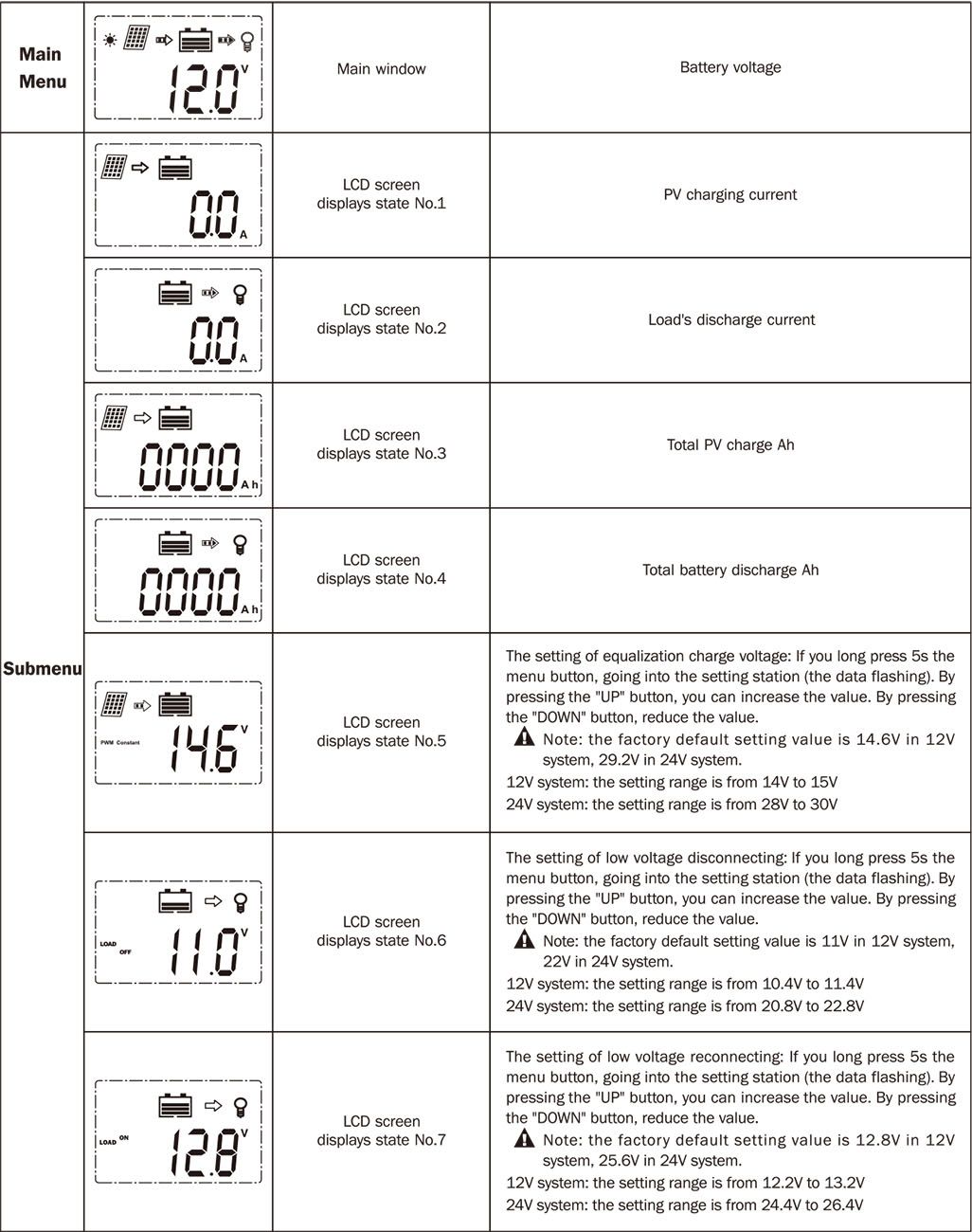

LCD screen display explanation:

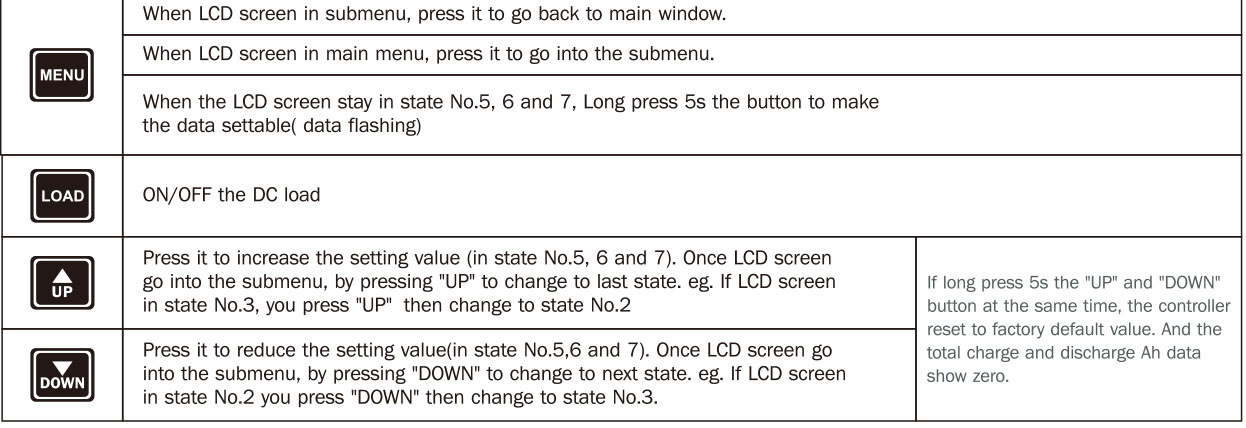

Button function explanation:
Specifications:
| Model | ENS12/24-20D |
| Nominal batteyr charge voltage | 12/24V auto.detection |
| Rated charge current | 20A |
| Rated discharge current | 20A |
| Max.PV input power | 300W@12V;600W@24V |
| LCD screen display | Battery voltage,PV charge current,Load discharge current,total PV charge Ah,total battery discharge Ah,the setting of constant voltage charging,the setting of low voltage disconnect,the setting of low voltage reconnet |
| Buttons | Menu,Load(on/off),Up,Down |
| Temperature compensation | -3 mv/cell*k |
| Float charge | 13.8V@12V;17.6V@24V |
| Constant voltage charge | 14.6V@12v;29.2V@24V |
| Low disconnect voltage | 11V@12V;22V@24V |
| Low Reconnect voltage | 12.8V@12V;25.6V@24V |
| Grounding | Positive |
| Battery type | GEL,AGM |
| Ambient temperature range | -40 to +50ºC |
| Case protection | IP22 |
Company Information
Why choose us
1.Professional Manufacturer---12 years experience.
2.High Quality Products---Hot selling in European market.
3. Reliable Service---We serve for our clients with a golden team.
4. Powerful R&D Team---We have R&D centers in Shanghai & Shenzhen, which can provide the ODM service for you.
5. Advanced Technology---We have adopted the SMT & used the imported components.
6. Factory Management---5S System Management provides us with clean, ordered and joyful working environment.
7. Imported Main Components---We used the main components from oversea market, such as USA, JAPAN, TAIWAN, etc.
FAQ
Question 1: Can I get one for sample?
Yes, we accept sample order or trial order for testing first.
Question 2: What's the price and MOQ?
Please just send me inquiry, your inquiry will be replied within 24 hours, we will let you know the latest price and MOQ.
Question 3: What's you delivery time?
It depends on your quantity, but usually, 7 days for sample order, 30-45days for batch order
Question 4: How about your payment and shipment?
Payment: We accept T/T, Western Union,Paypal etc. terms of payment.
Shipment: For sample order, we use DHL, TNT, FEDEX, EMS etc. express;for batch order, by sea or by air( through our forward)
Question 5.How about your warranty?
we provide1.5 and 2 years warranty for different products and whole life technical support.
Question 6.Do you have you own factory?
Yes,we are professional manufacturer mainly in power inverter for about 12 years.Our factory is located in Yueqing,Zhejiang,China.
Through unremitting efforts over manny years, the scale has leaping development. In 2010, we moved to our new building, and we changed our company name to "Zhejiang Carspa New Energy Co., Ltd" (former name is Wenzhou Carspa Electronics Technology Co., Ltd) in 2011.
We have research center in Shenzhen (Shenzhen Sunpulse Industrial Co., Ltd), and in 2012, we establish our own import & export company ( Wenzhou Sunpulse Import & Export Co., Ltd).
We are a high and new technology manufacturer and exporter in China which is mainly specialized in researching, developing, manufacturing and marketing of power inverter which including mini car inverter, smart inverter, modified sine wave power inverter, pure sine wave power inverter, battery charger, pure sine wave inverter with charger, modified sine wave inverter with charger, domestic and industrial use UPS, DC voltage booster, negative booster, stabilizer, air purifier & ozone sterilizer and other car electrical products, solar modules, PV on grid inverter, microinverter, High-tech off grid inverter, solar charge controller, solar and wind system and other solar related products. Also, we deal with some other low voltage electric appliances and power supply products.
Established in 2004, Carspa Company located in wenzhou, the largest manufacturing base of low voltage electric equipment in China, and has developed very quickly in this field. With the powerful technology support and advanced production and inspection devices, Carspa products have exported to many regions and many countries. Along with several leading experts, our company has developed a sound operation system consists of manufacturing, studying, researching, marketing, and servicing.
Our company has obtained ISO9001 quality certificate, CE-EMC/LVD, RoHS, E-MARK, SONCAP etc. Certification. And we have won numerous honors at home and abroad for our good quality, competitive prices and considerate services. Our motto is '' Harmony, Sincerity, Creativity and Win-Win ". We have been constantly pursuing to promote the development of the technology of the renewable energy, we try to make great efforts for saving global energy resources, making our future brighter.
We accept OEM and small trial orders, contact us now for more information. All inquiries will be replied with in 24 hours. We also cordially welcome all clients to visit us and discuss business and place orders with us by any means of communication. We believe that with our best quality products and your marketing channel, we are certain to establish a lasting mutual benefit cooperation relationship with you.
