| Prod Model: |
DC-W1206A |
| Input Voltage: |
100-220V 50Hz |
| Input Current: |
0.5A |
| Max Output Current: |
6A |
| Type: |
Lithium Battery |
| Charger Type: |
Electric Charger |
| Nominal Voltage: |
12V |
| Compatible Battery Type: |
CTA ;Ios9001 |
| Certification: |
CTA ;Ios9001 |
Product Description

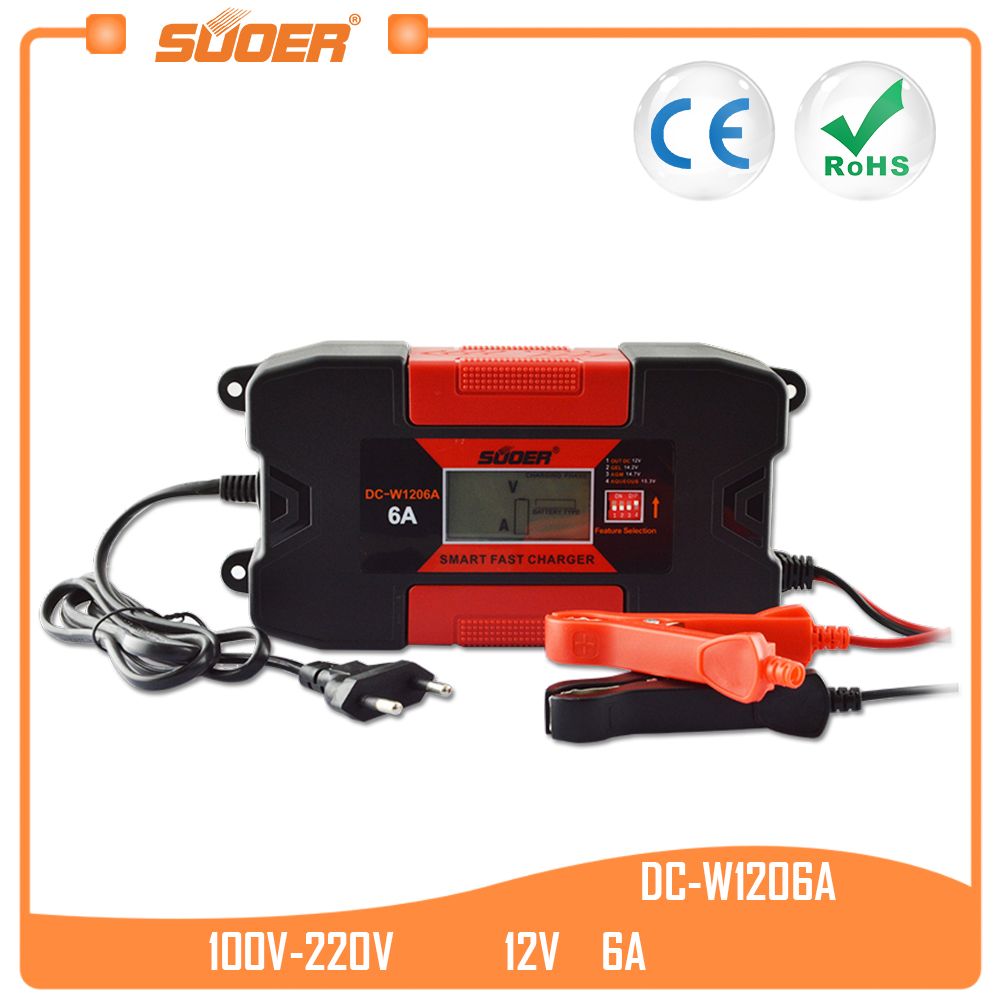

Suoer 12V 6A Smart Automatic Fast Solar Car Battery Charger With CE(DC-W1206A)
Features
1.Input voltage:100V-240V @50Hz
2.Max output charging current:4A/6A
3.Applicable for lead-acid battery(15.2V),maintenance-free battery(14.7V),gel battery(13.7V)
4.Output DC voltage can be manually regulated(15.2V,14.7V,13.7V)
5.LCD screen display
6.Compatibility has been greatly improved
Application

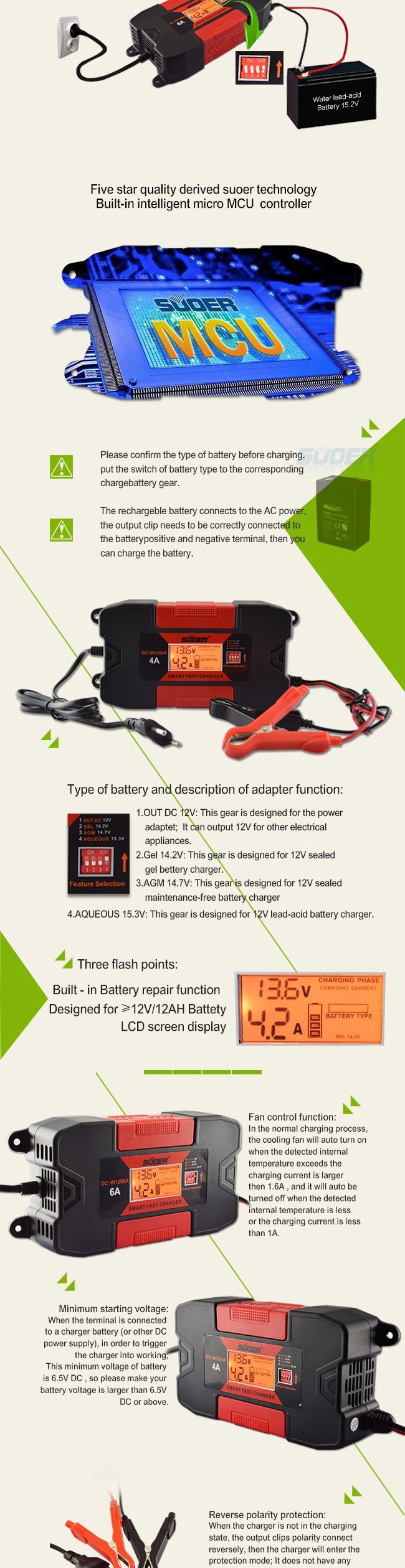

Fan control function
In the normal charging process, the cooling fan will auto turn on when the detected internal temperature exceeds 50ºC or the charging current is larger than 1.6A;and it will auto be turned off when the detected internal temperature is less than 35ºC or the charging current is less than 1A.
Minimum starting voltage
When the terminal is connected to a charger battery (or other DC power supply ), in order to trigger the charger into working ;this minimum voltage of battery is 6.5V DC, so please make sure your battery voltage is larger than 6.5V DC or above.
Reverse polarity protection
When the charger is not charging state, the output clips polarity connect reversely ,then the charger will enter the protection model ;it does not have any adverse impact on the performance of the charger .
Short circuit protection :
If the clips are connected each other ,the charger will enter the protection mode when the short circuit occurs ,And this would not damage the charge at all .

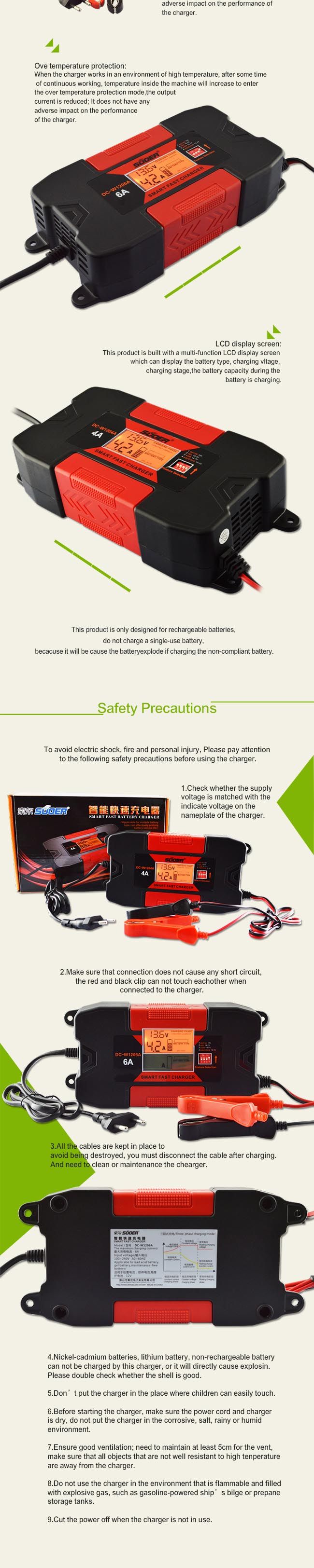

Over-temperature protection
When the charger works in an environment of high temperature ,after some time of continuous working ,temperature inside the machine will increase to enter the overtemperature protection mode ,the output current is reduced ;it does not have any adverse impact on the performance of the charger .
LCD display screen
This product is built with a multi-function LCD display screen which can display the battery type ,charging voltage ,charging stage ,the battery capacity during the battery is charging .

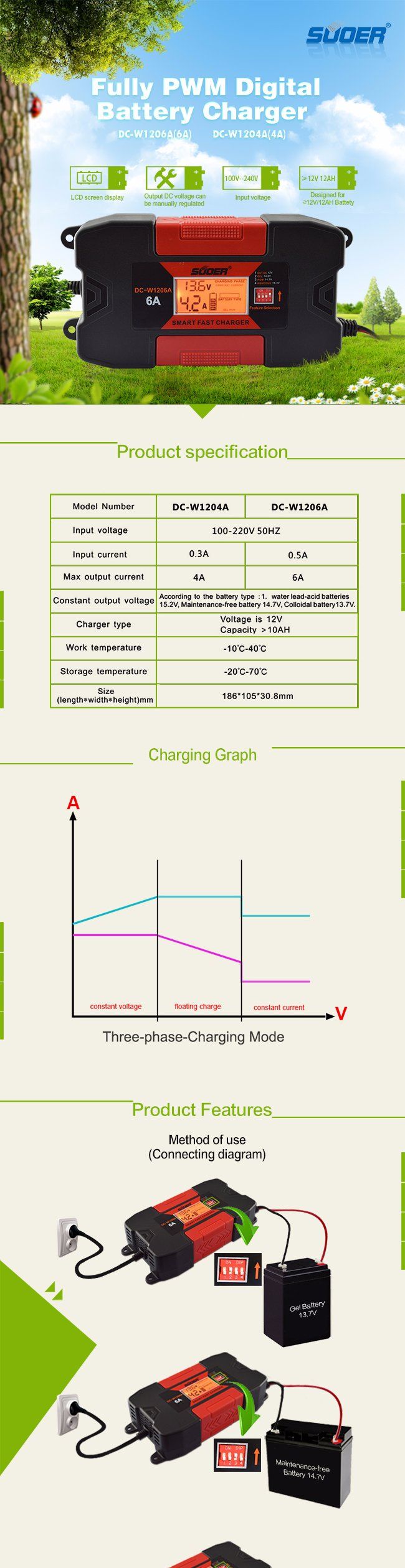

Technical Parameters
Model number | DC-W1204 | DC-W1206 |
Input voltage | 100-220V 50HZ |
Input current | 0.3A-0.7A | 0.5A-1.1A |
Max output current | 4A | 6A |
Constant output voltage | According to the battery type :1.water lead-acid batteries 15.2,Maintenance-free battery 14.7V ,Colloidal battery 13.7V. |
Charge type | Voltage is 12V Capacity >10AH |
Work temperature | -10ºC-40ºC |
Storage temperature | -20ºC-70ºC |
Size (mm) | 186*105*30.8mm |
Product Photos
FAQs
1.May I take some samples to test before placing the order ?
Answer:Yes,but customers need to pay for the sample fees and express fees,and it will be returned when next order is confirmed.
2. How long can you offer the samples?
Answer:1~5 days after the deposit payment is confirmed.
3.What's your payment terms for sample?
Answer:You can pay via T/T
4.What's the price terms can you offer for us?
Answer:We can accept EXW,FOB,CIF and so on.
5. Do you have any certifications for your products?
Answer:We have ISO9001:2000,CE,RoHS,certifications for all of our products.
6.Where is your main market for your products?
Answer:Most of our Suoer brand products are exported to Southeast Asia,Africa and Mid East.
