Product Description

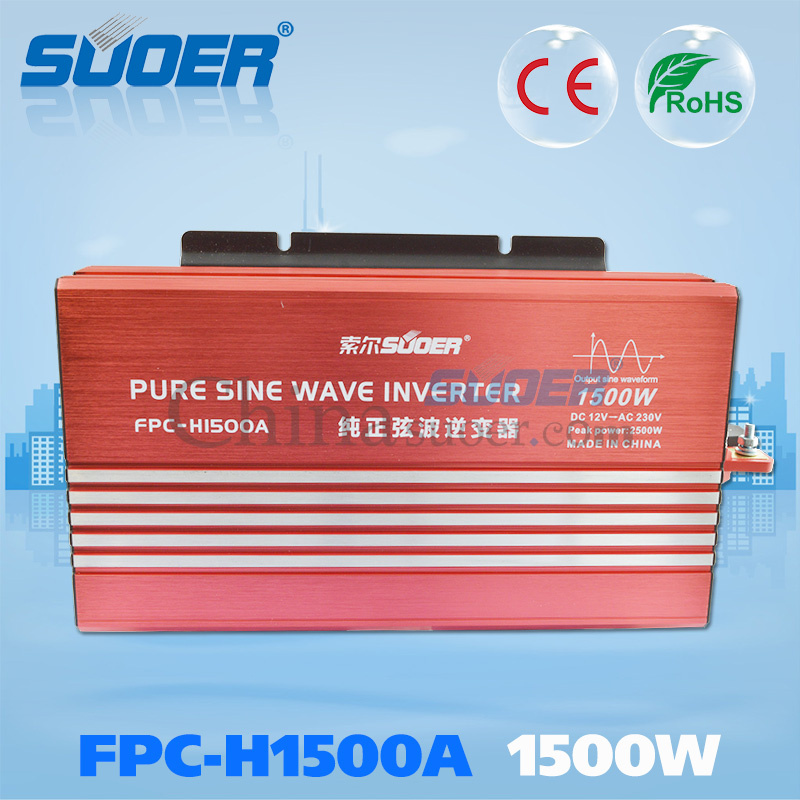

Suoer 1500W DC 12V to AC 230V Off Grid Pure Sine Wave Solar Power Inverter(FPC-H1500A)
New Features1.5 working status indicators,Easy to know the condition of the inverter
2.Adopt new safe connecting terminal
3.Large start up power
4.Excellent loading performance,designed for small power sensitive electric appliances
5.2 USB charging Ports 5V 1.2A/2.1A
6.Conversion efficiency is up to 94%.
Protections
To ensure the safety of the power inverter, 5 protections are designed for safety, including overload protection, overvoltage protection, low voltage protection, high temperature protection and output short circuit protection.
Technical Parameter
| Model | FPC-H1000A | FPC-H1000B | FPC-H1500A | FPC-H1500B |
| Peak Power | 2000W | 2500W |
| Rated Power | 1000W | 2000W |
| Output Waveform | Pure Sine Wave |
| Output Voltage | 220V/230V±5V |
| Harmonic distortion | <3%(Impedance load) |
| Standy current | <1.5A | <0.8A | <2A | <1A |
| Conversion efficiency | Maximum 94% |
| Rated Volatge | 12V | 24V | 12V | 24V |
| Maximum input current | 200A | 120A | 250A | 150A |
| Input Voltage Range | 10-15V | 20-32V | 10-15V | 20-32V |
| Under voltage protection | 10V | 20V | 10V | 20V |
| Under voltage tip | 10.5V | 21V | 10.5V | 21V |
| Under pressure recovery | 12.3V | 24.6V | 12.3V | 24.6V |
| Over voltage protection | 15.5V | 31V | 15.5V | 31V |
| Over voltage recovery | 15V | 30V | 15V | 30V |
| High temperature protection | 95ºC |
| Output short circuit protection | Yes |
| Output overload | Intelligent Protection |
| Load power factor | 0.98 |
| USB Output | 5V 3Amax |
| Battery reverse protection | Fuse protection |
| Cooling way | Intelligent fan |
| Working temperature | -20-60ºC |
| Storage temperature | -20-80ºC |
| Working humidity | 10-90%(No condensation) |
| Product Size | 338*195*80mm | 475*195*80mm |
| Pieces/CTN | 4 pcs | 4 pcs | 4 pcs | 6 pcs |
| Weight/CTN | 25.74kg | 23.5kg | 31.73kg | 30.73kg |
| Dimensions/CTN | 55*40.5*41.5cm | 55*40.5*41.5cm | 55.5*45*40cm | 55.5*45*40cm |
Application
This solar power inverter is extraordinarily designed for home use,which can convert DC 12V/24V of portable power supply to AC 110V/220V/230V and it works for almost all the household electrical resistive appliances such as MP3/MP4 player,cell phone, laptop, emergency light, electric blanket, electric shaver, electric cooker,digital camera, digital video,CD/DVD player,XBOX/PS4 game player, ordinary electric lamps, bulb,fluoresent light, rice cooker,electric iron,desktop computer, graphoscope,fax machines, printers, LCD TV, electric fans, cell phone chargers, electric iron , drinking fountain,hair dryer and so on.(Note:Only pure sine wave inverter can run sensitive electric appliances that are including refrigerator, washing machine,microwave oven, induction cooker, electric drill, compressor, air conditioner, mercury lamp, sodium lamp and so on).

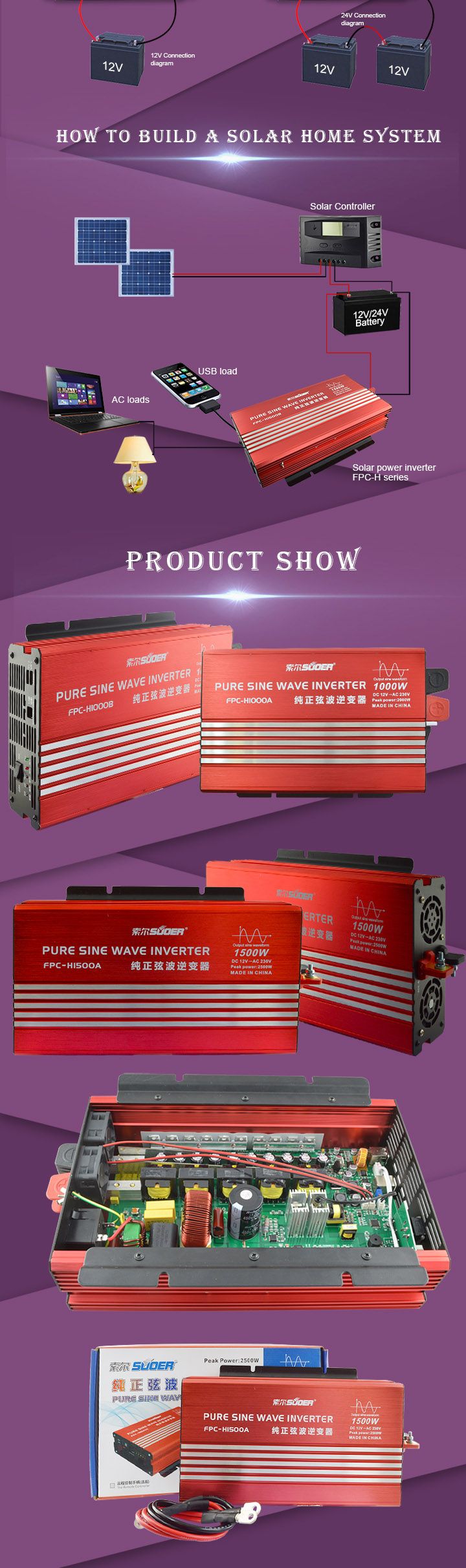

Product Photos
