| Prod Model: |
SPD-P360 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
200*98*50mm |
| Output Type: |
Single |
| Warranty: |
1 Year |
| Output Power: |
301 - 400W |
| Certification: |
ISO |
| Input Voltage: |
100~120V / 200~240V |
| Brand: |
Suoer |
Product Description

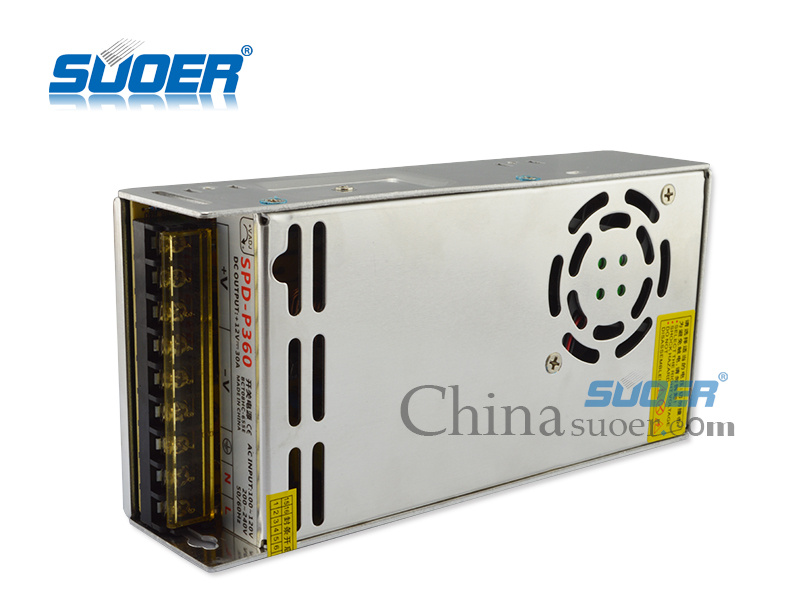

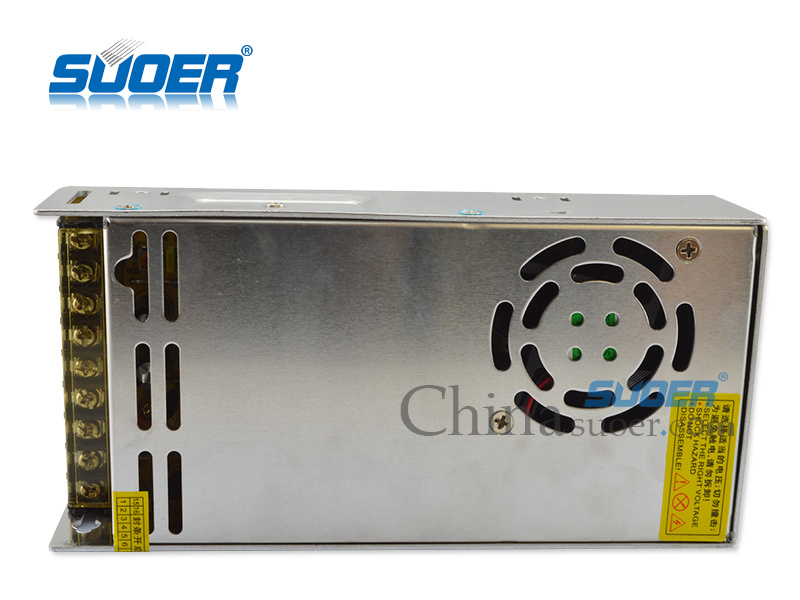

Suoer 2015 New 360W Industrial Switching 30A Switch Mode Power Supply (SPD-P360)
Features 1. Universal AC Input Power.
2. High efficiency and low working temperature.
3. Adopt high power transformer.
4. Smart rectifier and control circuits.
5. Short-circuit protection ,over-current protection , overload protection.
6. Soft starting current , effectively reduce the AC input inrush.
7. 100% full load burn-in test.
8. Built-in EMI filter, minimum ripple wave. Technical Parameters
Model |
SPD-P60 |
SPD-P120 |
SPD-P180 |
SPD-P240 |
SPD-P360 |
DC Output Voltage |
12V |
Output Voltage Tolerance |
±1% |
Rated Output Current |
5A |
10A |
15A |
20A |
30A |
Output Voltage Range |
0-5A |
0-10A |
0-15A |
0-20A |
0-30A |
Output Power |
60W |
120W |
180W |
240W |
360W |
Ripple Wave and Noise |
100 mvp-p |
DC Voltage Adjustable Range |
±15% |
Start,Raise,Keep Time |
200ms,100ms,30ms/230V AC |
Input Voltage Range |
100-120V AC/200-240V AC(Control by switch) 50/60Hz |
AC Input Voltage |
0-5.6A/115V 0-3.0A/230V |
Efficiency |
≥88% |
Leakage Current |
<3.5MA/240V AC |
Overload Protection |
105%-135% Rated Output Power |
Protection type: Constant current limiting, recovers automatically after fault condition is removed. |
Working temperature, humidity |
-10ºC~+60ºC;20%~90%RH |
Storage Temperature, humidity |
-20ºC~+85ºC;10%~95%RH non-condensing |
Anti-seismic Capacity |
10~500 Hz ,2G 10min/1 cycle , 60 minutes, each axle |
Withstandvoltage |
I/P-O/P:1.5KVAC I/PFG:1.5KVAC O/P-FG:0.5KVAC |
Isolationresistance |
I/P-O/P,I/P-FG,O/P-FG:100M Ohms/500VDC
|
SAFETY STANDARDS |
Meet UL 1012 requirment |
EMC standards |
Meet EN55022, CLASSA |
Dimension |
160*98*38mm |
199*98*42mm |
200*110*50mm |
200*110*50mm |
200*98*50mm |
Weight |
0.29kg |
0.45kg |
0.59kg |
0.6kg |
0.73kg |
Application This INDUSTRIAL POWER SUPPLY can apply to monitoring system , LED luminous character , light box advertising , communication equipments , stepping motor , PLC control system . Product Photos
