| Prod Model: |
SON-20A+ |
| Type: |
Lithium Battery |
| Charger Type: |
Electric Charger |
| Compatible Battery Type: |
12V,24V |
| Nominal Voltage: |
12V,24V |
| Certification: |
CTA ;Ios9001 |
Product Description

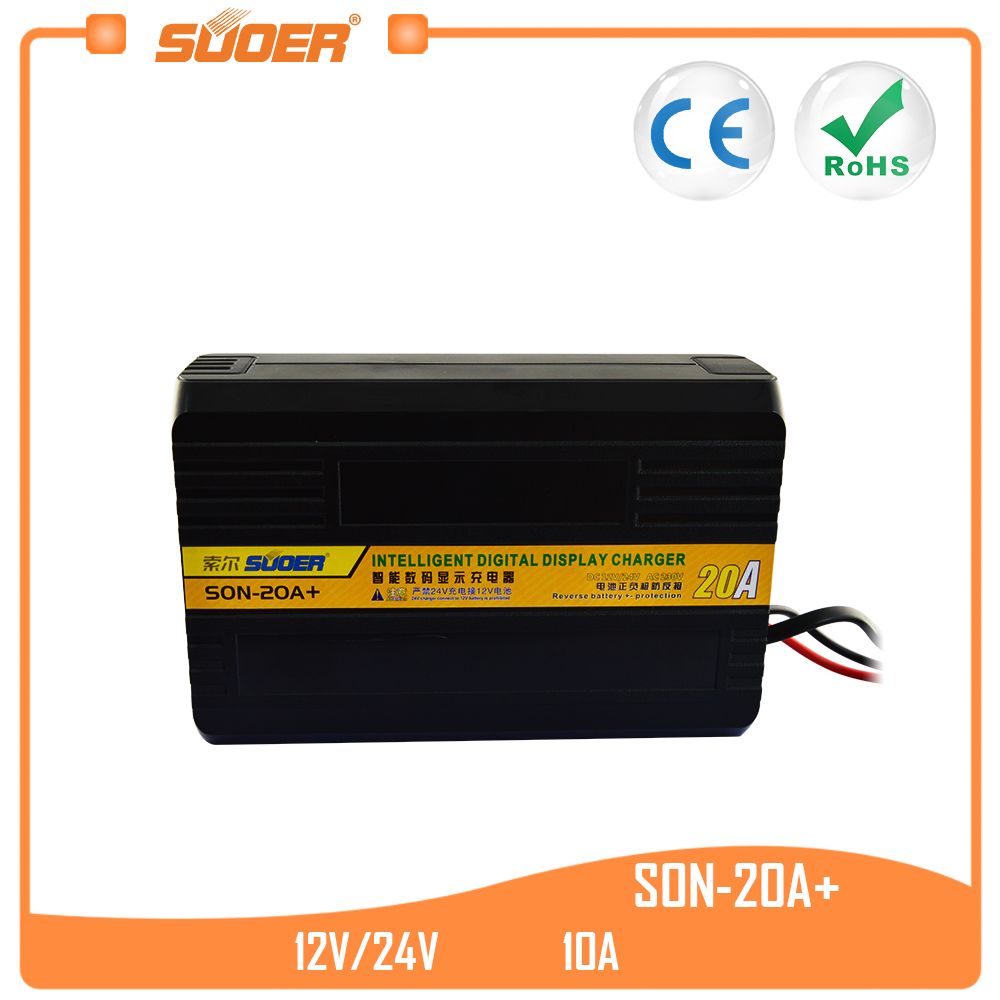

Suoer 20A 12V 24V Battery Charger with LCD display (SON-20A+)
Features
1.Max charging current:10A/20A
2.Rated input current:220V
3.Adopt PWM charging mode,auto stop charging when the battery gets fully charged
4.New LED screen display control panel
5.6V/12V manual switch(SON-10A+),12V/24V manual switch(SON-20A+)
6.Applicable for gel battery and lead-acid battery
Specification
Three-phase charging mode
Constant current mode: When the voltage of the battery is lower than the value set by the charger,the charger will work under the constant current mode and supply the constant current for the battery.
Constant voltage mode: Using the pulse width modulation(PWM) tech to control the charging current and output voltage of the charger which ensures the battery is fully charged and avoids over charging.
Floating charge mode: When the voltage of the battery is approaching the value of the constant voltage mode,and the current will cut down to the given current gradually,that means the battery power is full, then the pilot lamp will turn green and the fan will stop working.The charger will turn the mode into floating charge mode automatically.At this moment,the battery can be stopped charging or keep on floating charge for half an hour.
Specification
Smart battery charger | |
Model | SON-20A+ |
Input Voltage | 220V~230V |
Output Voltage | 12V/24V |
Rated Frequency | 47-63HZ |
Charger Current | 10A |
Charging mode | Three-phase |
Dimensions | 225*145*80mm |
N.W | 1.6KG |
Packed Qty | 20 PCS |
Certification | ISO,CTA,CE,RoHs |

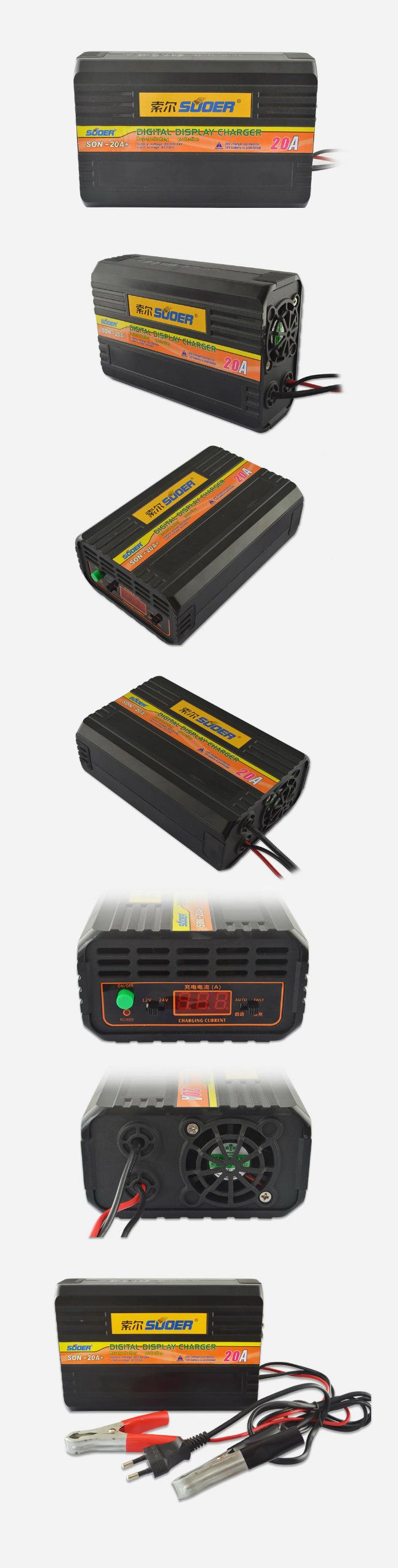

Product Photos
FAQs
1.May I take some samples to test before placing the order ?
Answer:Yes,but customers need to pay for the sample fees and express fees,and it will be returned when next order is confirmed.
2. How long can you offer the samples?
Answer:1~5 days after the deposit payment is confirmed.
3.What's your payment terms for sample?
Answer:You can pay via T/T
4.What's the price terms can you offer for us?
Answer:We can accept EXW,FOB,CIF and so on.
5. Do you have any certifications for your products?
Answer:We have ISO9001:2000,CE,RoHS,certifications for all of our products.
6.Where is your main market for your products?
Answer:Most of our Suoer brand products are exported to Southeast Asia,Africa and Mid East.
