| Prod Model: |
MC-2415A |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Charging Current: |
15A |
| Input Voltage: |
180V-260V |
| Display: |
LED |
| Type: |
Lithium Battery |
| Charger Type: |
Electric Charger |
| Nominal Voltage: |
24V |
| Certification: |
CTA ;Ios9001 |
Product Description
Suoer 24V 15A Automatic Lead Acid Battery Charger with LED Display (MC-2415A)
Characteristics 1. Entire pulse charging makes it charge quickly and prolongs battery's life.
2. It distinguishes battery's capacity automatically and intelligently.
3. It displays charging current and battery's voltage.
4. The light bar displays battery's capacity intuitively.
5. The function of short circuit protection and over-current protection.
6. Reverse connecting protection.
SpecificationsBattery Charger 15A
1.Three-phase battery charger
2.Input AC:180-260V
3.Rated frequency:17-63HZ
Three-phase charging mode
Constant current mode: When the voltage of the battery is lower than the value set by the charger,the charger will work under the constant current mode and supply the constant current for the battery.
Constant voltage mode: Using the pulse width modulation(PWM) tech to control the charging current and output voltage of the charger which ensures the battery is fully charged and avoids over charging.
Floating charge mode: When the voltage of the battery is approaching the value of the constant voltage mode,and the current will cut down to the given current gradually,that means the battery power is full, then the pilot lamp will turn green and the fan will stop working.The charger will turn the mode into floating charge mode automatically.At this moment,the battery can be stopped charging or keep on floating charge for half an hour.
Technical Parameters | Model | current selection | size(legth*width*height) | weight(kg) |
| MC-1230A | 5A ,10A,15A ,20A ,25A ,30A | 288X 165X105 | 1.57 |
| MC-1240A | 5A ,10A,15A ,20A ,25A ,30A,40A |
| MC-2415A | 3A ,5A ,8A ,10A ,12A ,15A |
| MC-2420A | 3A ,5A ,8A ,10A ,12A ,15A,18A,20A |

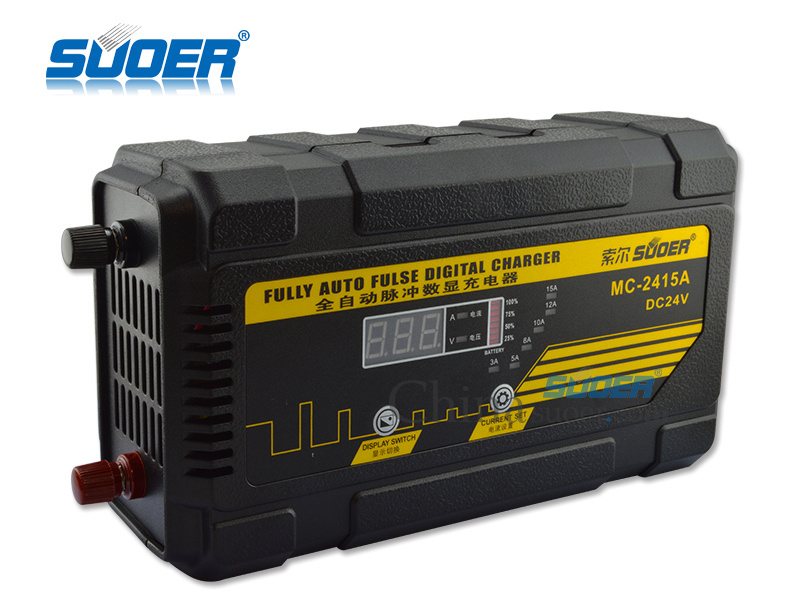

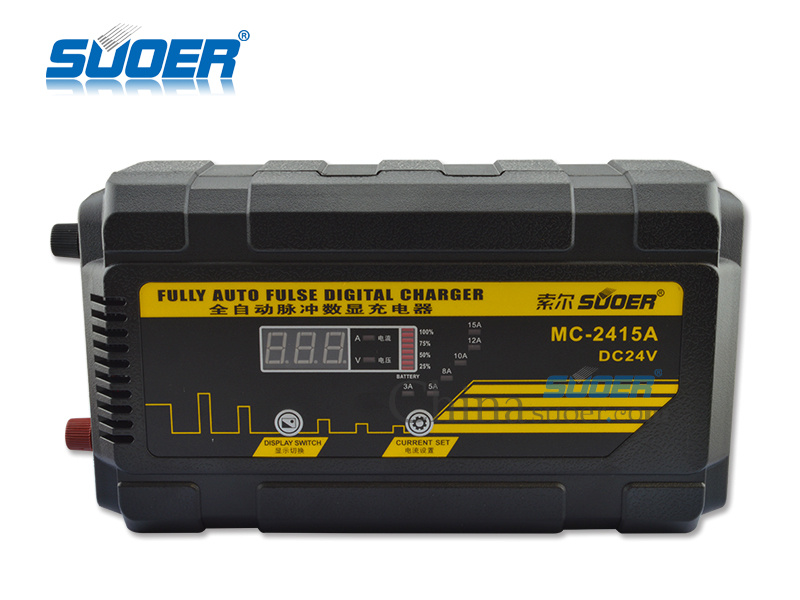

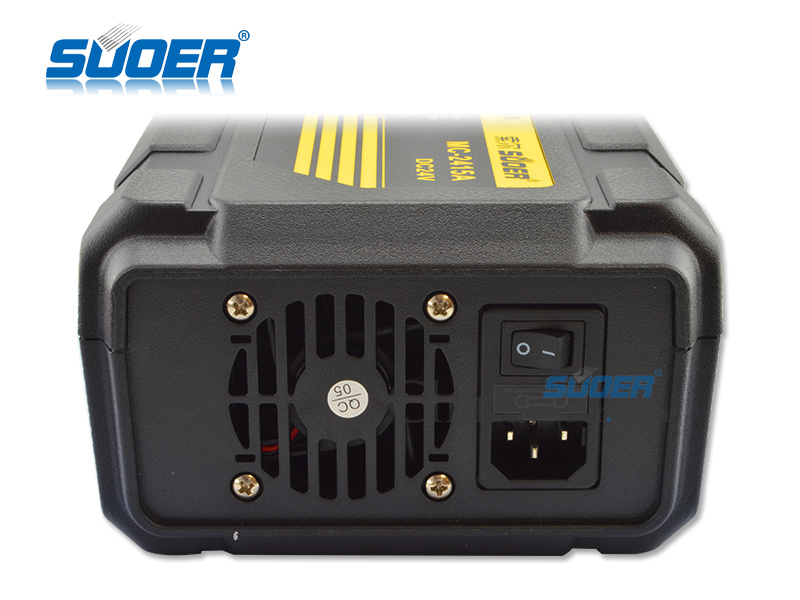

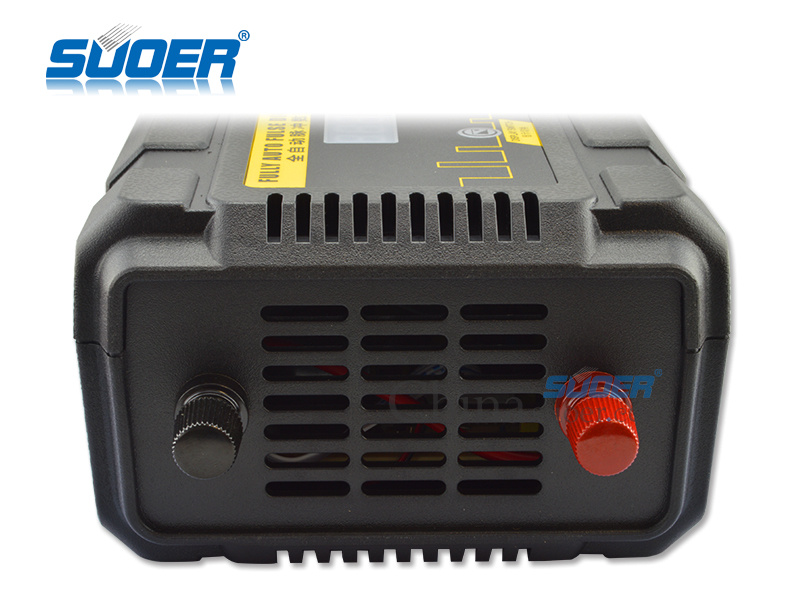

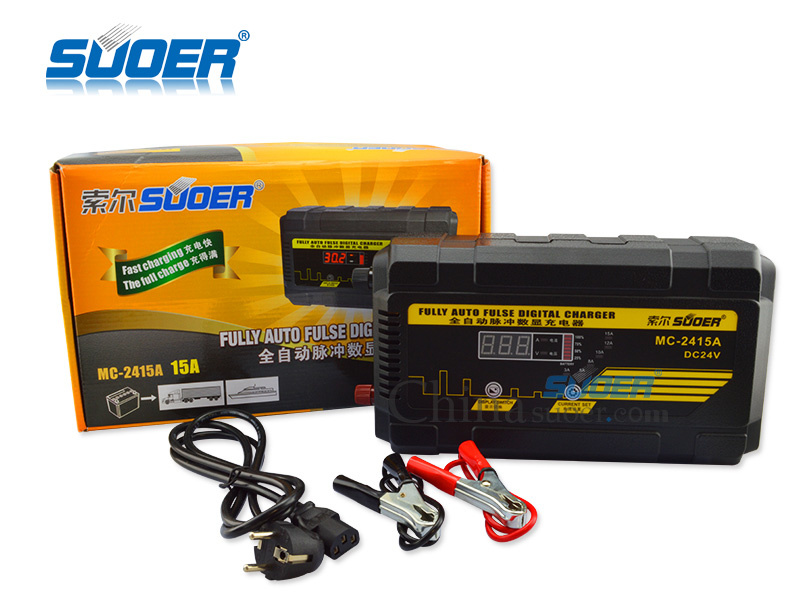

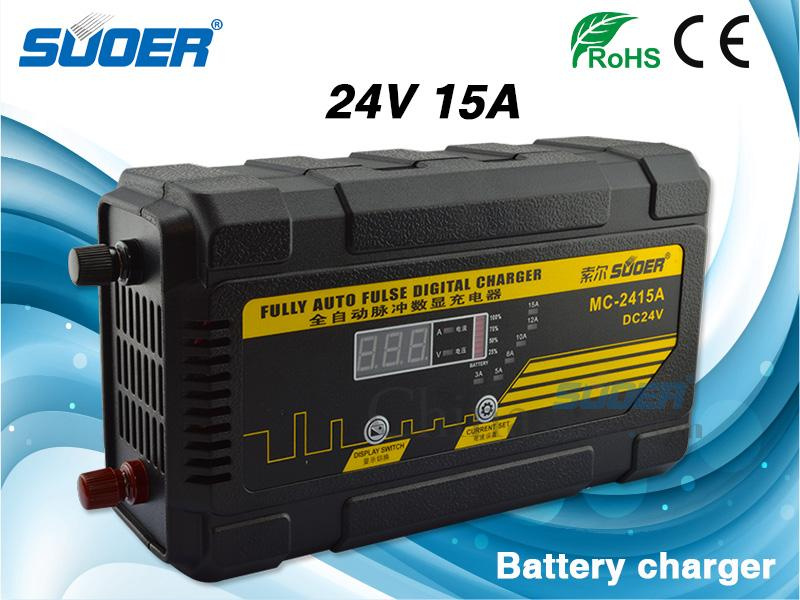

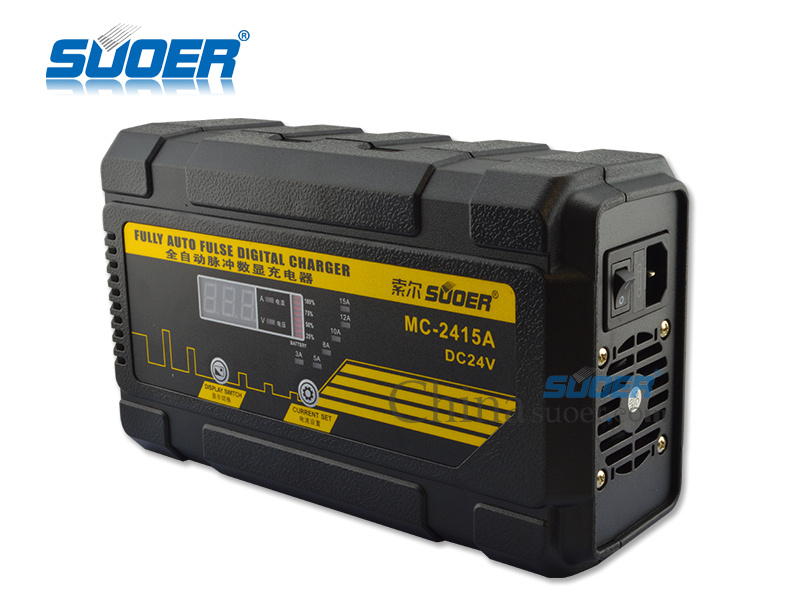

Product Photos
FAQ 1. May I take some samples to test before placing the order ?Answer: Yes, but customers need to pay for the sample fees and express fees, and it will be returned when next order is confirmed. 2. How long can you offer the samples?Answer: 1~5 days after the deposit payment is confirmed. 3. What's your payment term for sample?Answer: You can pay via T/T. 4. What's the price terms can you offer for us?Answer: We can accept EXW,FOB,CIF and so on. 5. Do you have any certifications for your products?Answer: We have ISO9001:2000, CE, RoHS, certifications for all of our products. 6. Where is your main market for your products?Answer: Most of our Suoer brand products are exported to Southeast Asia, Africa and Mid East. SNS:Facebook Fan Page: https://www.facebook.com/SuoerGroup
