| Prod Model: |
GTI-H300B |
| Output Voltage: |
190V-260V |
| Output Current: |
1.3A |
| Input Voltage: |
24V |
| Output Frequency: |
50Hz±1% |
| MPPT Voltage Range: |
30-40V |
| Solar Panel: |
Vmp:35-39V, Voc:42-45V |
| Phase Shift: |
<2% |
| MPPT Efficiency: |
>99% |
| Operating Temperature: |
-20ºC~45ºC |
| Recommended Power Of Solar Panel: |
300-400W |
Product Description

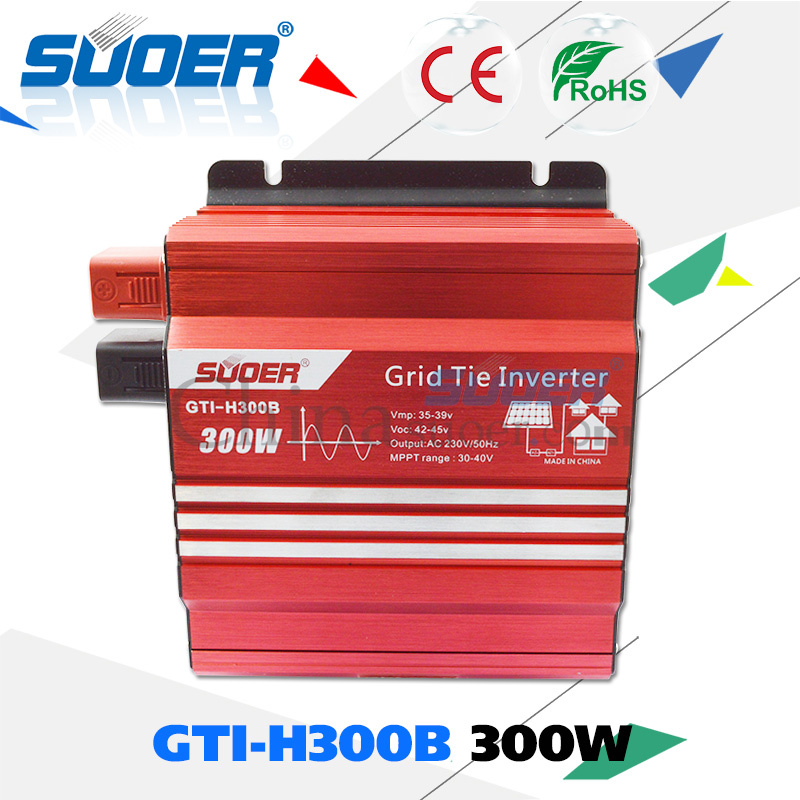

Suoer 300W 24V to 230V Grid Tie Power Inverter(GTI-H300B)
New Features1.Multiple stable and reliable protections:overvoltage protection,low voltage protection,over voltage shutdown,under voltage shutdown,over temperature protection,islanding detection,frequency protection.
2.Adopt specialized wiring terminal,greatly improve reliability &safety performance
3.Cooling fan is intelligently controlled and regulated by output power and temperature,which can help to lengthen product lifetime and lower replacement costs.
4.Low standby power consumption,high conversion efficiency
5.Intelligent MPPT technology,high efficiency,high reaction rate,stable output power
6.Multiple grid-tie inverters are compatible in the circuit in parallel .Small power grid-tie inverters in parallel to obtain high driving power output.
Technical Parameter
| Model | GTI-H1000B | GTI-H600B | GTI-H300B |
| Output Power | 1000W | 600W | 300W |
| Solar Panel | Vmp:35-39V,Voc:42-45V |
| Recommended Power Of Solar Panel | 1000-1100w | 600-650w | 300-400w |
| MPPT Voltage Range | 30-40V |
| AC Voltage Range | 190-260V |
| Volatge Frequency Range of MV Power Network | 50HZ±1% |
| Power factor | >97.5% |
| MPPT Efficiency | >99% |
| Total Harmonic Distortion(THD) | <5% |
| Phase Shift | <2% |
| Conversion Efficiency | >85% | >86% | >87% |
| Maximum Efficiency | >89% | >89% | >90% |
| Operating Temperature | -20ºC-45ºC |
| Waterproof Rate | Interior Design |
| Cooling Mode | Intelligent design of the electric fan control system |
| Standby Power Loss | 2-3W |
| Product Size | 257*195*88.5mm | 210*195*88.5mm | 180*195*88.5mm |
| Pieces/CTN | 4 pcs | 6 pcs | 6 pcs |
| Weight/CTN | 17.12kg | 20.12kg | 17.88kg |
| Dimensions/CTN | 55.5*38*32cm | 55*32*50.5cm | 55.5*31*49cm |

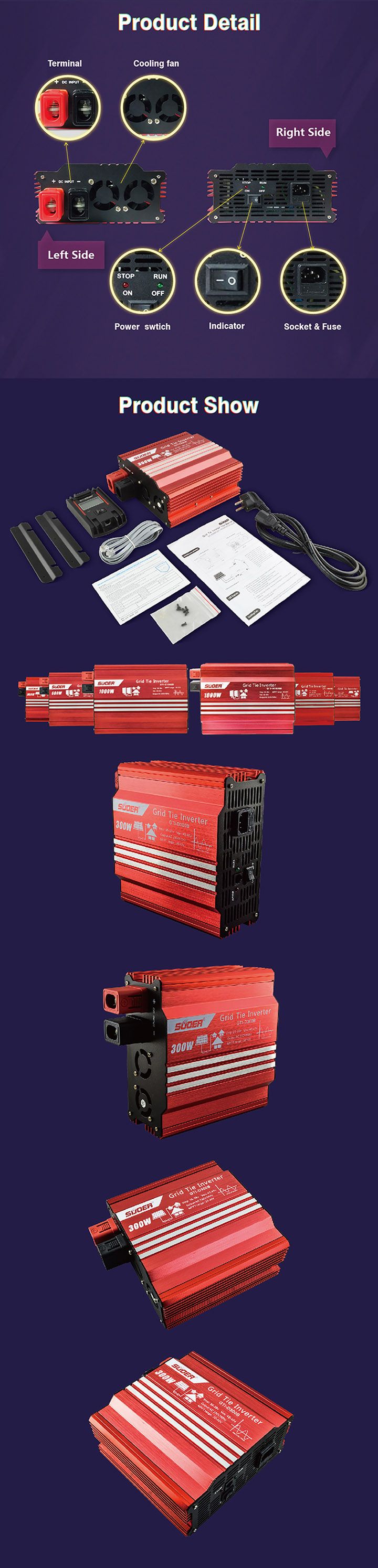

Product Photos
