| Prod Model: |
DC-2410A |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Charging Current: |
4-10A |
| Input Voltage: |
220V |
| Frequency: |
50Hz |
| Charger Type: |
Electric Charger |
| Compatible Battery Type: |
24-Volt |
Product Description

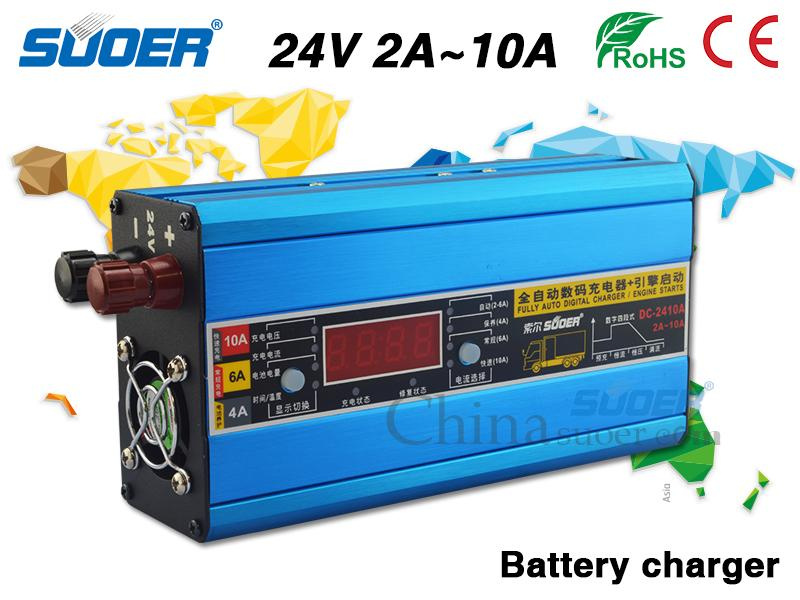

Suoer Electric Car Battery Charger 24V 10A Charger with Engine Starts Function (DC-2410A)
Features 1. Rated input voltage: 220V AC/50HZ
2. Three steps charging mode: Constant current mode, Constant voltage mode, Floating charge mode
3. Output voltage
Constant-current charging mode: <29.2V DC
Constant-voltage charging mode: 29.2+0.3v DC
Float charging mode: 27.2±0.3V DC
4. Output Current
This is an automatic battery charger; also the user can choose different charging current by pushing the current selection button.
Here is all kinds of model output current sheet:
Model |
DC-1220A |
DC-1236A |
DC-2410A |
DC-2420A |
Current Selection |
Automatic |
4-12A |
6-20A |
2-6A |
4-12A |
Maintainable |
8A |
14A |
4A |
8A |
Common |
12A |
20A |
6A |
12A |
Quick speed |
20A |
36A |
10A |
20A |
Current for constant-current charging |
4-20A |
6-36A |
2-10A |
4-20A |
Current for time when constant-voltage charging changes to float charge |
2-5A |
2-5A |
1-2.5A |
2-5A |
Current for time when float charge changes to constant-voltage charging |
2.5-5.5A |
2.5-5.5A |
1.3-2.5A |
2.5-5.5A |
5. The fan will start to work when the inner temperature above 35ºC, and it will shut down when the temperature drop to 30ºC.
6. The storage battery's minimum voltage is 6.5v DC.
7. With reverse connect protection, short circuit protection and over-temperature protection.
8. Has the battery repair function.
9. The working temperature is -10ºC~40ºC.
Technical Parameter
Model |
DC-1220A |
DC-1236A |
DC-2410A |
DC-2420A |
Input Voltage |
AC 220V 50HZ |
Input Current |
5A |
8A |
2.5A |
5A |
Maximum Output Current |
20A±3A |
36A±3A |
18A±1.5A |
20A±3A |
Constant Output Voltage |
14.6±0.3V DC |
29.4±0.6V DC |
Battery Type |
Voltage: 12V(24V);Capacity: larger than 24AH |
Working Temperature |
-10ºC-40ºC |
Storage Temperature |
-20ºC-70ºC |
Size (mm) |
215*95*55 |
243*95*55 |
215*95*55 |
243*95*55 |
Weight |
0.74kg |
0.94kg |
0.74kg |
0.94kg |
Problems and solutions
Problem |
Reason |
Solution |
The charger doesn't work when the clips are connected correctly. |
Electrodes are reversed |
Connect them correctly |
Charging voltage is smaller than 6.5v |
Try to repair the battery, change another one if it can't be repaired |
Charging error |
Something wrong with battery |
Unstable connection |
Check and repair the connection |
Battery dischargeable |
Try to repair it if it is a maintainable battery |
Current restricted |
Choosing the low charging current |
Choose a high charging current |
Voltage of charged battery equals to or surpasses restricted voltage |
Check the battery's voltage; the charger is only applicable to 12v(24v) DC battery |
Over voltage |
Connected to electronic equipment |
Disconnect all the equipments |
Over temperature |
Charger's over temperature protection function |
Clean the vent or take away the stuff which has covered the charger; put the charger at a cool place; the charger will rework when the temperature decreases |
Over charging protection |
Charging time exceeds 24 hours |
Check the charging state |
Selected charging current is too low |
Choose a suitable charging current |
A battery unit was damaged |
Change battery, deal with the damaged battery correctly. |
Product Photos
