| Prod Model: |
SON-2420B |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Usage: |
Electric Bicycle |
| Nominal Voltage: |
24V |
| Shape: |
Square Battery |
| Rechargeable: |
Chargeable |
Product Description

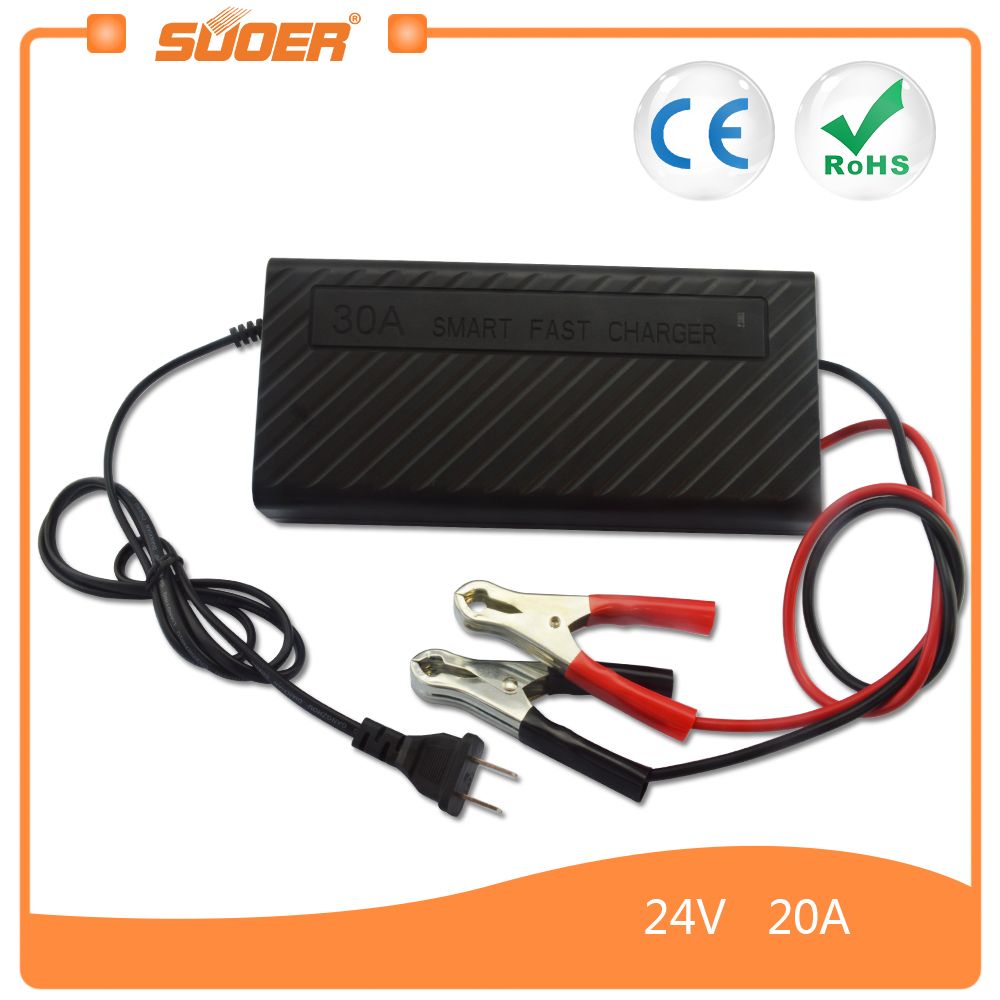

Suoer Fast Battery Charger with Three-phase Charging (SON-2420B)

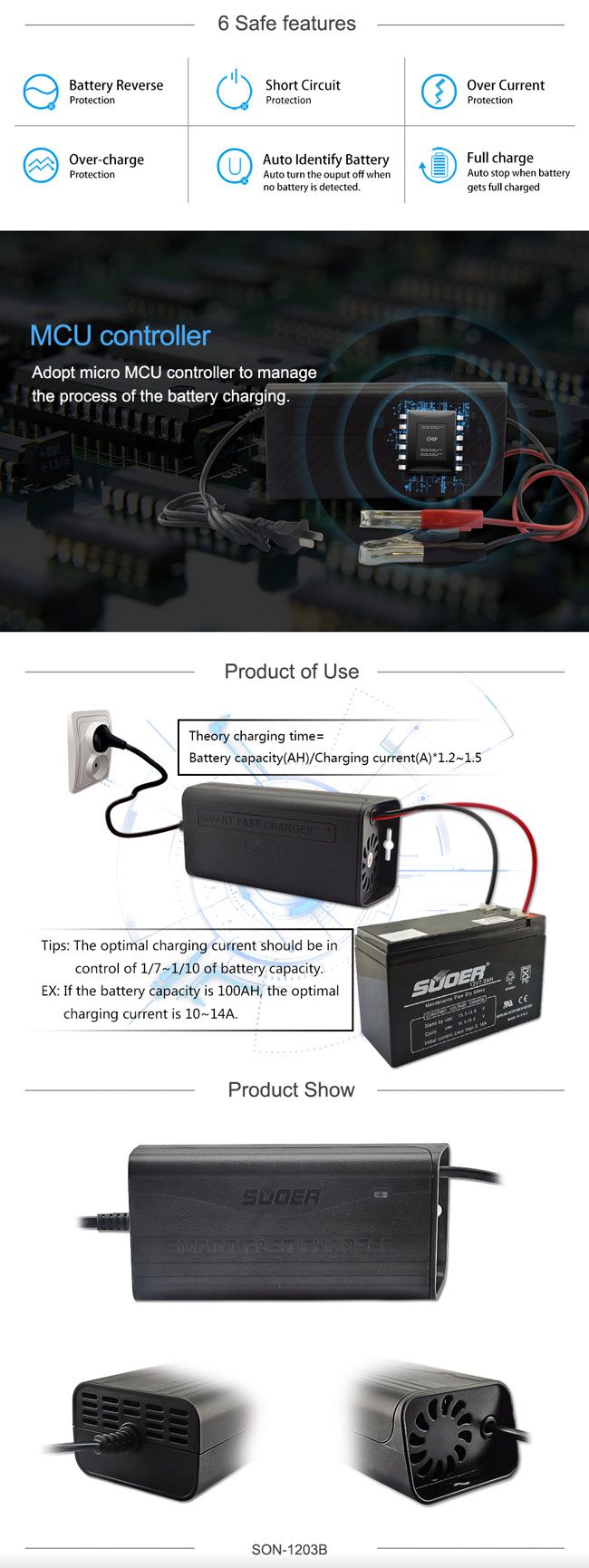

FeatureOmni-directional battery protection functions
1. The power will be turned off automatically when the battery gets fully charged.
2. Three-phase charging mode makes it charge quickly.
3. Reverse connect protection and short circuit protection.
4. It can judge whether there is a battery,and will shut down automatically
if there is no one.
5. No spark appears when connecting,extremely safe.
6. Hanging style design makes it easy to install.Technical Parameters | Model | SON-2420B |
| Charging Current | 20A Max |
| Input Voltage | 220V+ 20% 50-60Hz |
| Applicable Batteries | 24v |
| Maximum Charging Current | 20A |
| Applicable Battery Voltage (DC) | 24V |
| Rated Input Voltage (AC) | 220V+ 20% |
| Rated Frequency | 47~63HZ |
| Full Load Efficiency | ≥87% |
| Mechanical Shock and Quake-proof Degree | Agree with the SAEJ 1378 Requirements |
| Temperature Range | -40~+105ºC |
Specification1.Positive and negative pole clamp connector
2.Suspension wear mouth
3.Cooling air outlet
4.Work indicating lamp
5.Electric plug

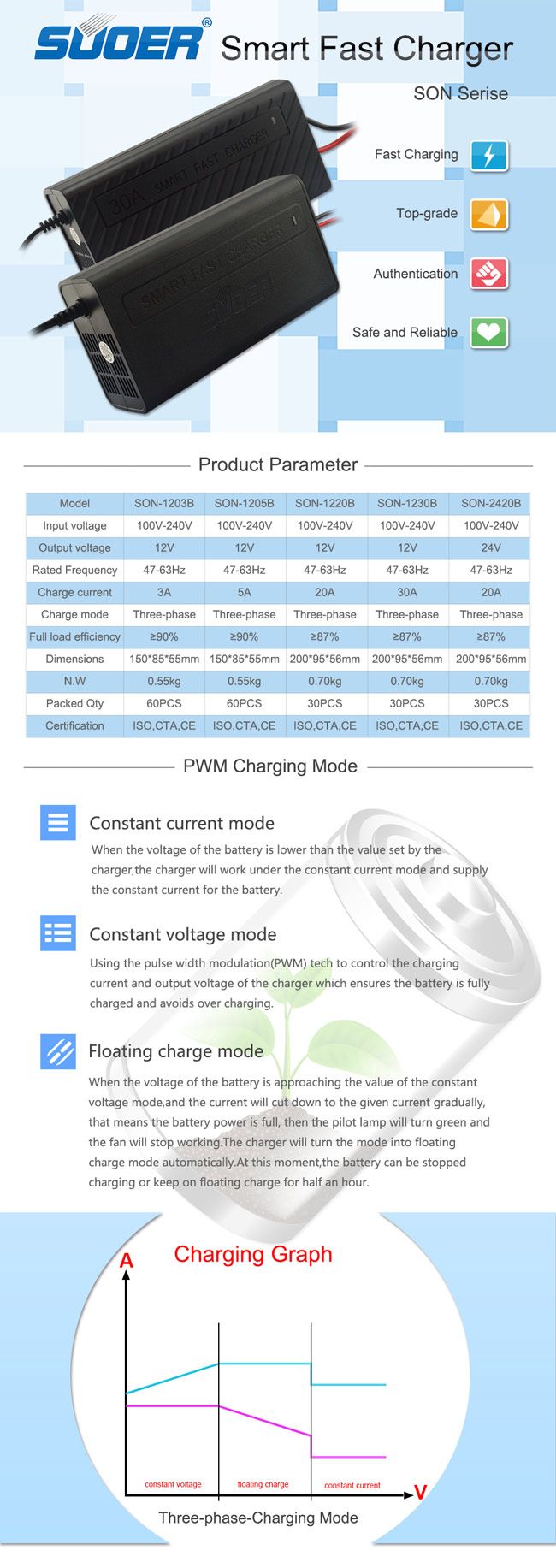

Three-phase charging mode
1.Three phase smart charging, fast charging.
2.Full of power auto off protect the battery, the anti overcharge.
3.Reverse protection, short circuit protection.

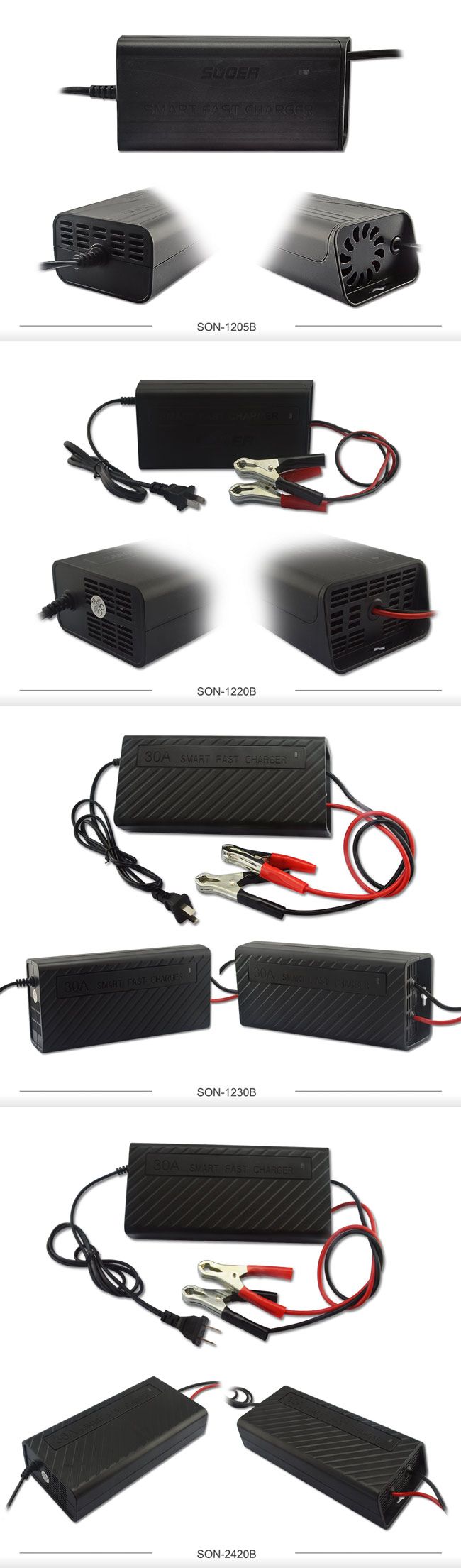

4.Hanging design, easy to install.Product Photos
