| Prod Model: |
SON-1210D+ |
| Charger Type: |
Electric Charger |
| Nominal Voltage: |
12V |
Product Description

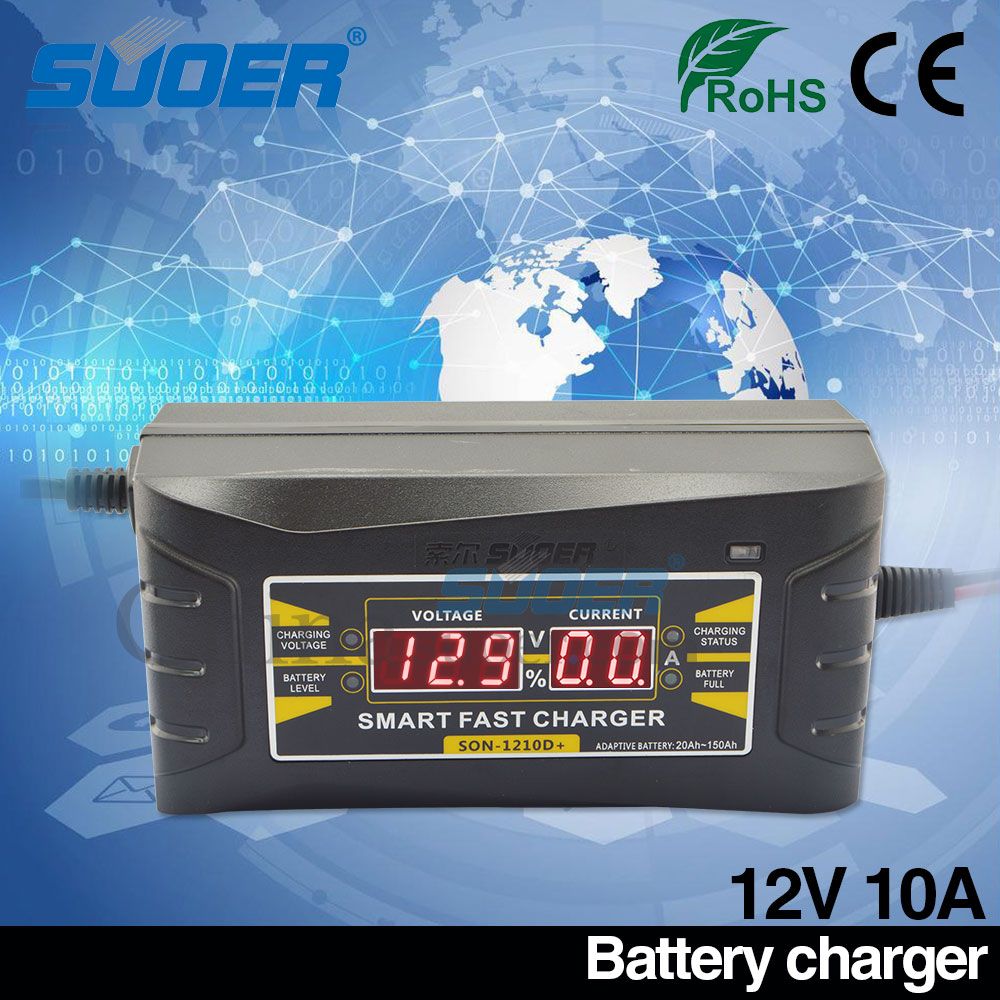

Suoer LCD Display Universal Battery Charger 12 Volt Battery Charger (SON-1210D+)
Brief introduction
1. Evaporation Function
2. Automatic Trickle Function
3. LCD Display
4. Soft start function
Product features
1.Max charging current:10A
2.Rated input voltage:110-240V
3.Adopt PWM charging mode,auto stop charging when the battery gets fully charged
4.LCD screen display:Charging voltage/Battery capacity/Charging current
5.Aoto battery detection
6.Applicable for gel battery and lead-acid battery.
Specifications

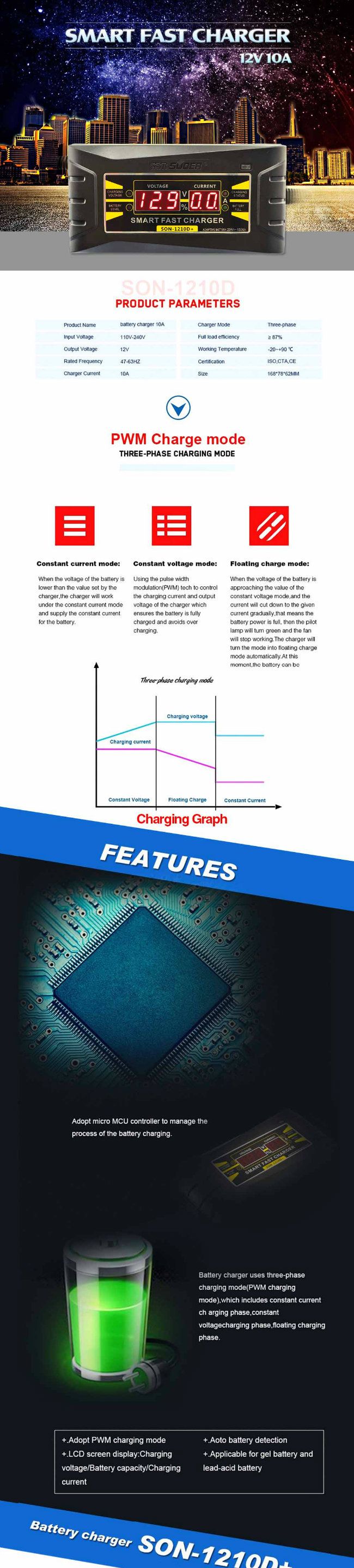

Three-phase charging mode
Constant current mode: When the voltage of the battery is lower than the value set by the charger, the charger will work under the constant current mode and supply the constant current for the battery.
Constant voltage mode: Using the pulse width modulation(PWM) tech to control the charging current and output voltage of the charger which ensures the battery is fully charged and avoids over charging.
Floating charge mode: When the voltage of the battery is approaching the value of the constant voltage mode, and the current will cut down to the given current gradually, that means the battery power is full, then the pilot lamp will turn green and the fan will stop working. The charger will turn the mode into floating charge mode automatically. At this moment,the battery can be stopped charging or keep on floating charge for half an hour.
Technical parameters
Product Name | battery charger 10A |
Model | SON-1210D+ |
Input Voltage | 110V-240V |
Output Voltage | 12V |
Rated Frequency | 47-63HZ |
Charger Current | 10A |
Charger Mode | Three-phase |
Full load efficiency | ≥ 87% |
Working Temperature | -20~+90 ºC |
Certification | ISO,CTA,CE |
SIZE | 168*78*62MM |
Weight | 0.36kg |

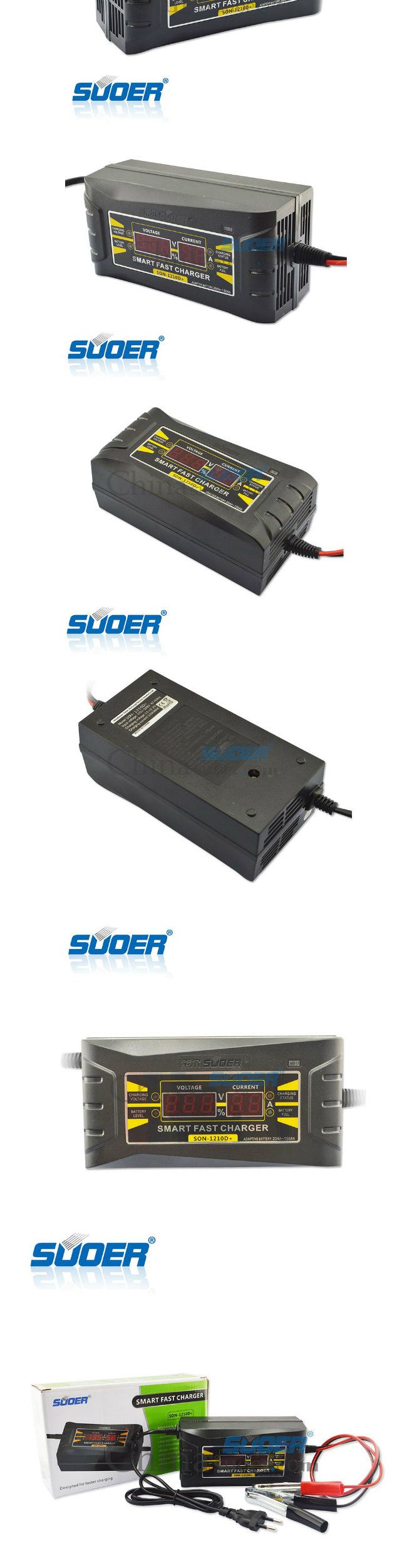

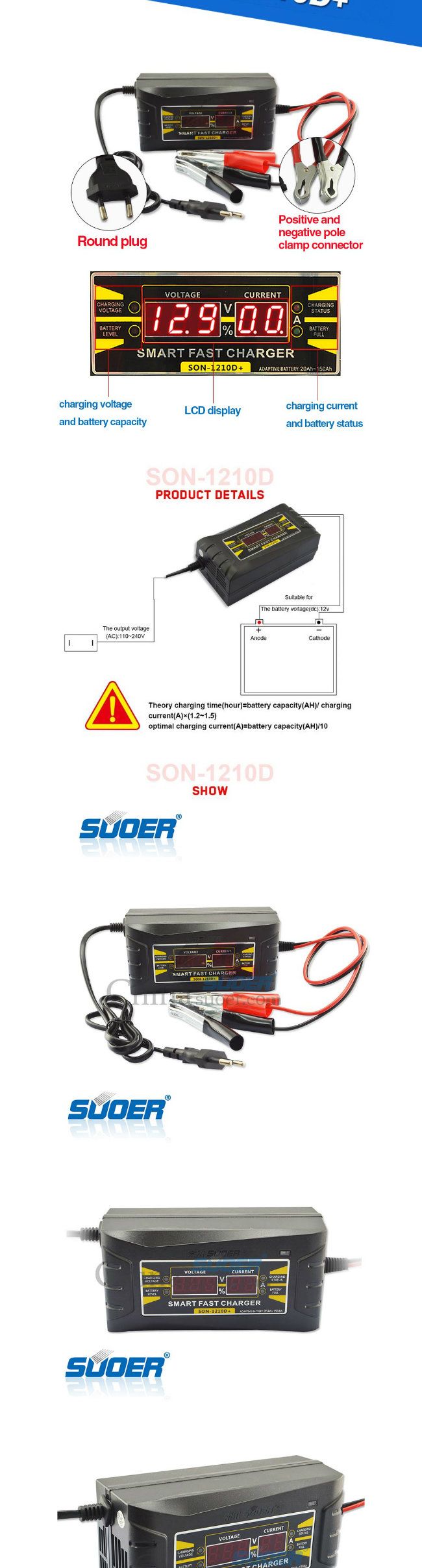

Product Photos
FAQ
1. Ask : May I take some samples to test before placing the order ?
Answer : Yes, but customers need to pay for the sample fees and express fees, and it will be returned when next order is confirmed.
2. Ask : How long can you offer the samples?
Answer: 1~5 days after the deposit payment is confirmed.
3. Ask : What's your payment term for sample?
Answer: You can pay via T/T.
4. Ask : What's the price terms can you offer for us?
Answer: We can accept EXW,FOB,CIF and so on.
5. Ask : Do you have any certifications for your products?
Answer: We have ISO9001:2000, CE, RoHS, certifications for all of our products.
6. Ask : Where is your main market for your products?
Answer: Most of our Suoer brand products are exported to Southeast Asia, Africa and Mid East.
