| Prod Model: |
SPD-P240 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
200*110*50mm |
| Output Type: |
Single |
| Warranty: |
1 Year |
| Output Power: |
201 - 300W |
| Voltage Regulating Mode: |
Width Modulation Type |
| Certification: |
RoHS |
| Input Voltage: |
100~120V / 200~240V |
| Brand: |
Suoer |
Product Description
Suoer Manufacture 240W AC DC Single Output CCTV Camera 12V 20A Power Supply ( SPD-P240)
Quick Details 1. DC output: 12V 20A
2. AC Input: 100~120V/200V~240V
3. Output Power:240WFeatures
1. Universal AC Input Power.
2. High efficiency and low working temperature.
3. Adopt high power transformer.
4. Smart rectifier and control circuits.
5. Short-circuit protection ,over-current protection , overload protection.
6. Soft starting current , effectively reduce the AC input inrush.
7. 100% full load burn-in test.
8. Built-in EMI filter, minimum ripple wave.
Technical Parameters
Model |
SPD-P60 |
SPD-P120 |
SPD-P180 |
SPD-P240 |
SPD-P360 |
DC Output Voltage |
12V |
Output Voltage Tolerance |
±1% |
Rated Output Current |
5A |
10A |
15A |
20A |
30A |
Output Voltage Range |
0-5A |
0-10A |
0-15A |
0-20A |
0-30A |
Output Power |
60W |
120W |
180W |
240W |
360W |
Ripple Wave and Noise |
100 mvp-p |
DC Voltage Adjustable Range |
±15% |
Start,Raise,Keep Time |
200ms,100ms,30ms/230V AC |
Input Voltage Range |
100-120V AC/200-240V AC(Control by switch) 50/60Hz |
AC Input Voltage |
0-5.6A/115V 0-3.0A/230V |
Efficiency |
≥88% |
Leakage Current |
<3.5MA/240V AC |
Overload Protection |
105%-135% Rated Output Power |
Protection type: Constant current limiting, recovers automatically after fault condition is removed. |
Working temperature, humidity |
-10ºC~+60ºC;20%~90%RH |
Storage Temperature, humidity |
-20ºC~+85ºC;10%~95%RH non-condensing |
Anti-seismic Capacity |
10~500 Hz ,2G 10min/1 cycle , 60 minutes, each axle |
Withstandvoltage |
I/P-O/P:1.5KVAC I/PFG:1.5KVAC O/P-FG:0.5KVAC |
Isolationresistance |
I/P-O/P,I/P-FG,O/P-FG:100M Ohms/500VDC
|
SAFETY STANDARDS |
Meet UL 1012 requirment |
EMC standards |
Meet EN55022, CLASSA |
Dimension |
160*98*38mm |
199*98*42mm |
200*110*50mm |
200*110*50mm |
200*98*50mm |
Weight |
0.29kg |
0.45kg |
0.59kg |
0.6kg |
0.73kg |

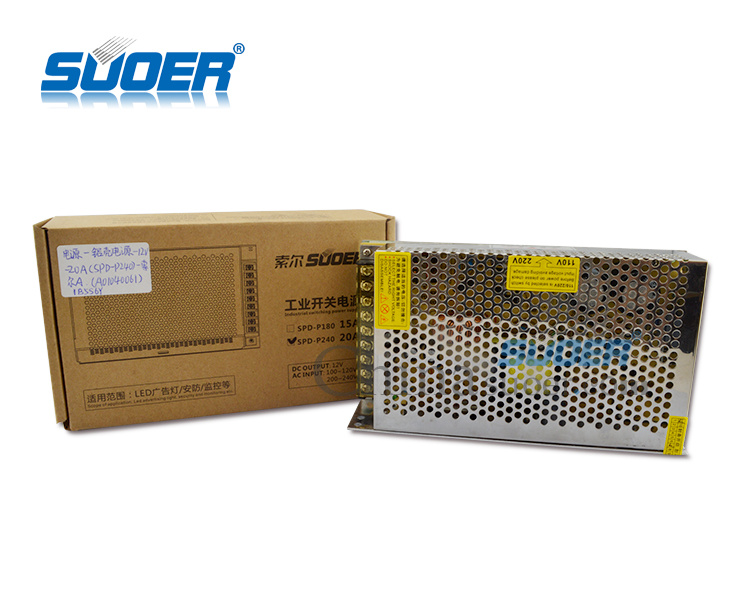

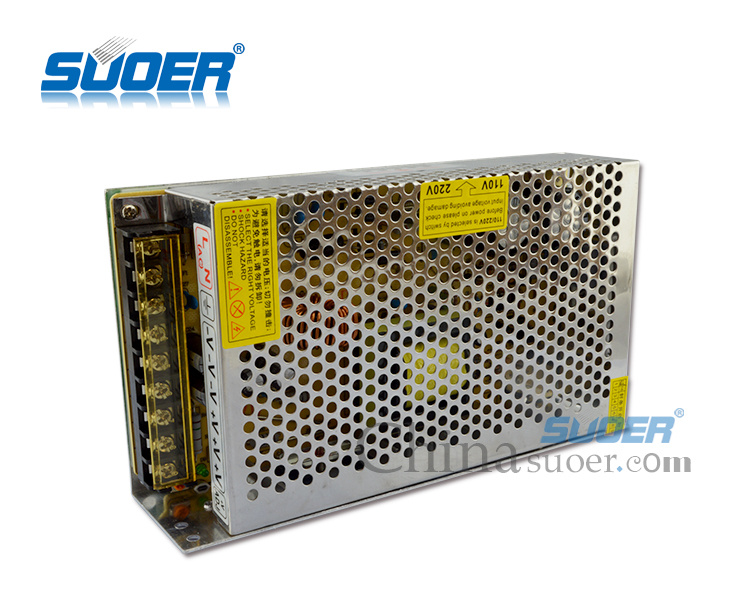

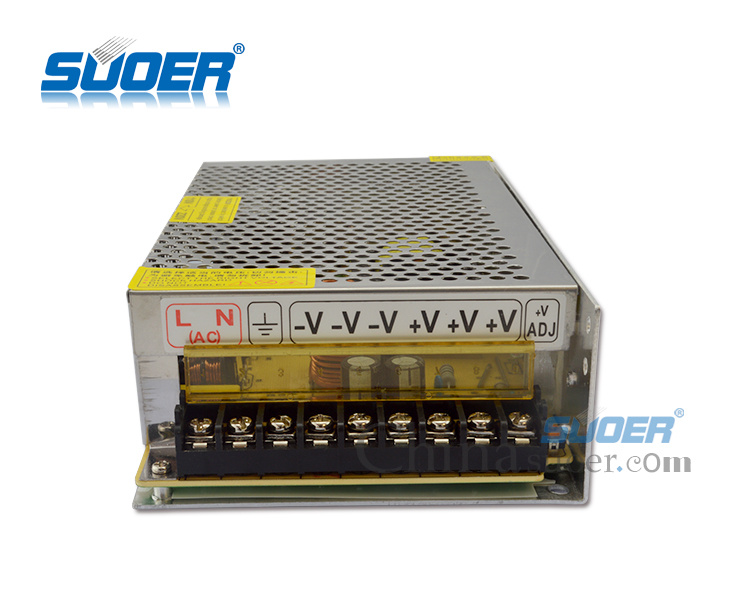

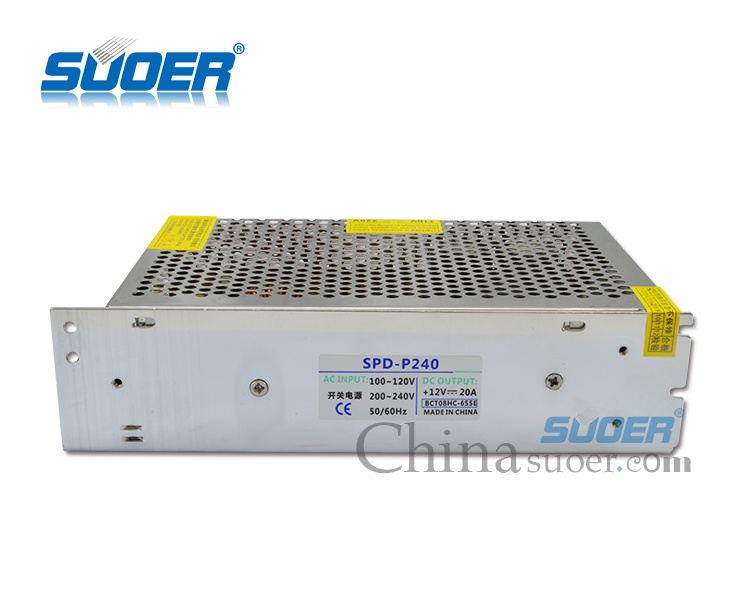

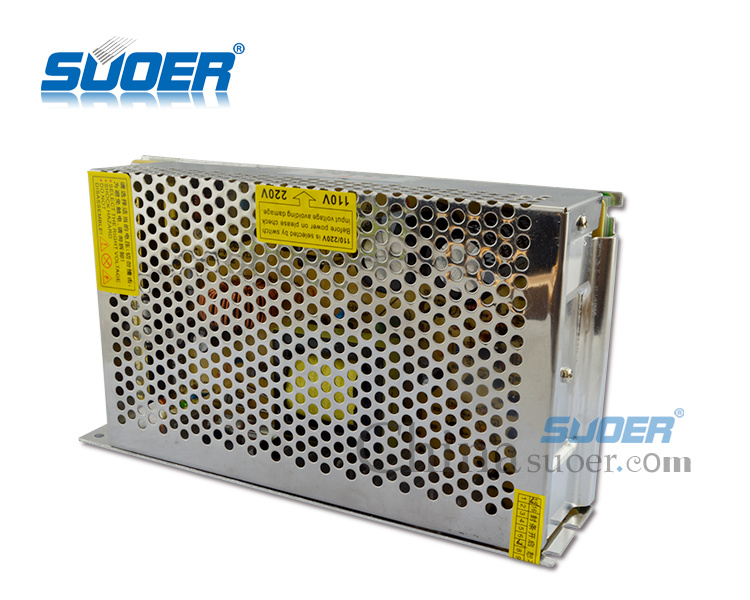

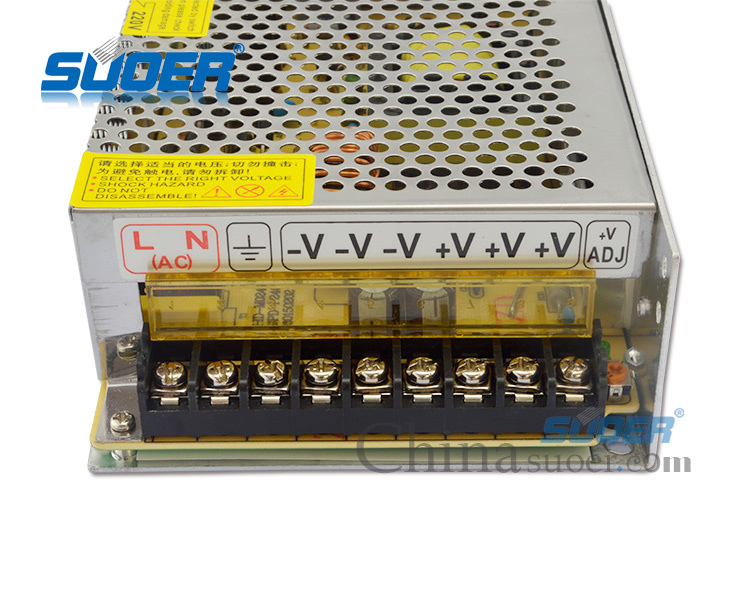

ApplicationThis 12V Power Supply can apply to monitoring system , LED luminous character , light box advertising , communication equipments , stepping motor , PLC control system . Product Photos
FAQ
1. May I take some samples to test before placing the order ?
Answer: Yes, but customers need to pay for the sample fees and express fees, and it will be returned when next order is confirmed.
2. How long can you offer the samples?
Answer: 1~5 days after the deposit payment is confirmed.
3. What's your payment term for sample?
Answer: You can pay via T/T.
4. What's the price terms can you offer for us?
Answer: We can accept EXW,FOB,CIF and so on.
5. Do you have any certifications for your products?
Answer: We have ISO9001:2000, CE, RoHS, certifications for all of our products.
6. Where is your main market for your products?
Answer: Most of our Suoer brand products are exported to Southeast Asia, Africa and Mid East.
