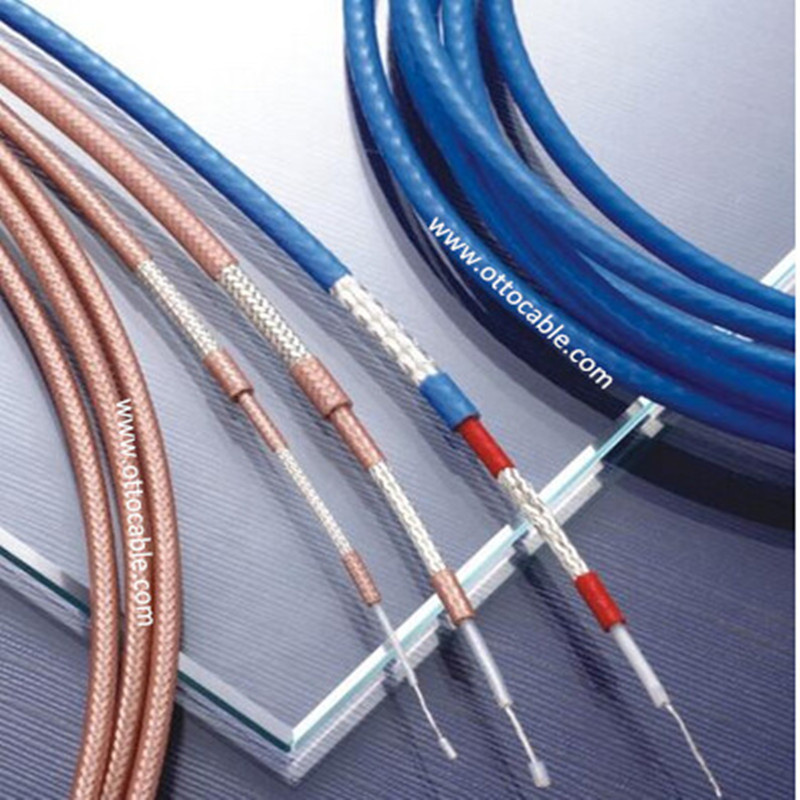

Super Flexible Teflon Coax Cable Rg196

Name: Super Flexible Teflon Coax Cable Rg196
Brand: all-electronics-online.com
SKU: 752189885
Availability: InStock
Rating: 4.3 (72 reviews)

Price:	US $ 0.01-1.2/Meter
Trade Terms:	FOB,CIF
Min Order:	5000/Meter
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	RG196
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Inner Conductor:	Spccs
Insulation:	PTFE
Shield:	Spc Braid
Jacket:	FEP
Application:	RF Cable
Certification:	RoHS
Conductor Material:	Spccs
Cover Material:	FEP
Type:	Coaxial
Wire Core Material:	Spccs

Product Description

Super Flexbile Teflon Cable RG196

This 50 Ohm RG196 coaxial cable can be equipped with varied connectors,such as SMA,SMB,MXC,N,
BNC,TNC connectors.These versatile cable assemblies with various lengths have been widely applied to GPS,BEIDOU,GSM and other communication systems.

Features

1).50 Ohm data signal transmission;
2).The inner conductor could be stranded or solid;
3).Special insulation materials,providing good electrical property and welding performance;
4).Small diameter is ideal for tight fit applications;
5).Customized cable color , winding and connector, meet your different requirements;
6).RoHS compliant;

RG196 Coaxial Cable
Construction
Item	Material		Diameter(mm)
Inner Conductor	Sliver Plated Copper Clad Steel		7*0.1
Dielectric	PTFE		0.84
First Shield	Silver Plated Copper Braid		1.30
Jacket	FEP		1.80

Electrical Characteristics		Attenuation @20ºC (dB/100M)
Impedance(Ω)	50	@200MHz	62.3
Velocity of Propagation(%)	70	@400MHz	91.9
Max Operating Frequency (MHz)	3000	@700MHz	121.4
Max Operating Voltage(VRMS)	1000	@900MHz	139.4
Operating Temperature(ºC)	-55 to +200	@1000MHz	150.9
-----	-----	@3000MHz	262.0

Otto Cable Technology Co., Ltd. is a Hi-Tech enterprise specializes in researching, manufacturing and selling 50 Ohm & 75 Ohm coaxial cables, cable assemblies and other related products.

After decades of practical experience and technical skills, we have been very professional on these products, which covers:

1). Wireless RF Transmission coaxial cable, 50 Ohms RG MIL-C-17 and JIS Spec coaxial cables, mainly applying to 4G, 3G, GSM, and CDMA telecommunication system, digital microwave communication system, DAS, GPS and other car antenna system.

50 Ohm coaxial cable assemblies/pigtails/jumper cables/pre-made coax cables usually fixed with various connectors, such as N, SMA, SMB, MCX, MMCX, TNC, BNC, UHF...

2). 75 Ohms RG MIL-C-17 Spec coaxial cables, CCTV, CATV-MATV coaxial cable, satellite coaxial cable, video coaxial cable, which are serving for existing and next generation TV network and security monitoring and control systems.

Besides of the standard coaxial cables, customer required cables and value-added services are also available in our company.
