| Prod Model: |
welding |
| Product Name: |
Flexible Welding Cable |
| Type: |
Insulated |
| Conductor Type: |
Stranded |
| Application: |
Construction |
| Conductor Material: |
Copper |
| Certification: |
VDE |
| Sheath Material: |
PVC or Rubber |
| Insulation Material: |
PVC or Rubber |
| Range Of Application: |
Construction |
| Brand: |
Gemt |
Product Description
Product Description

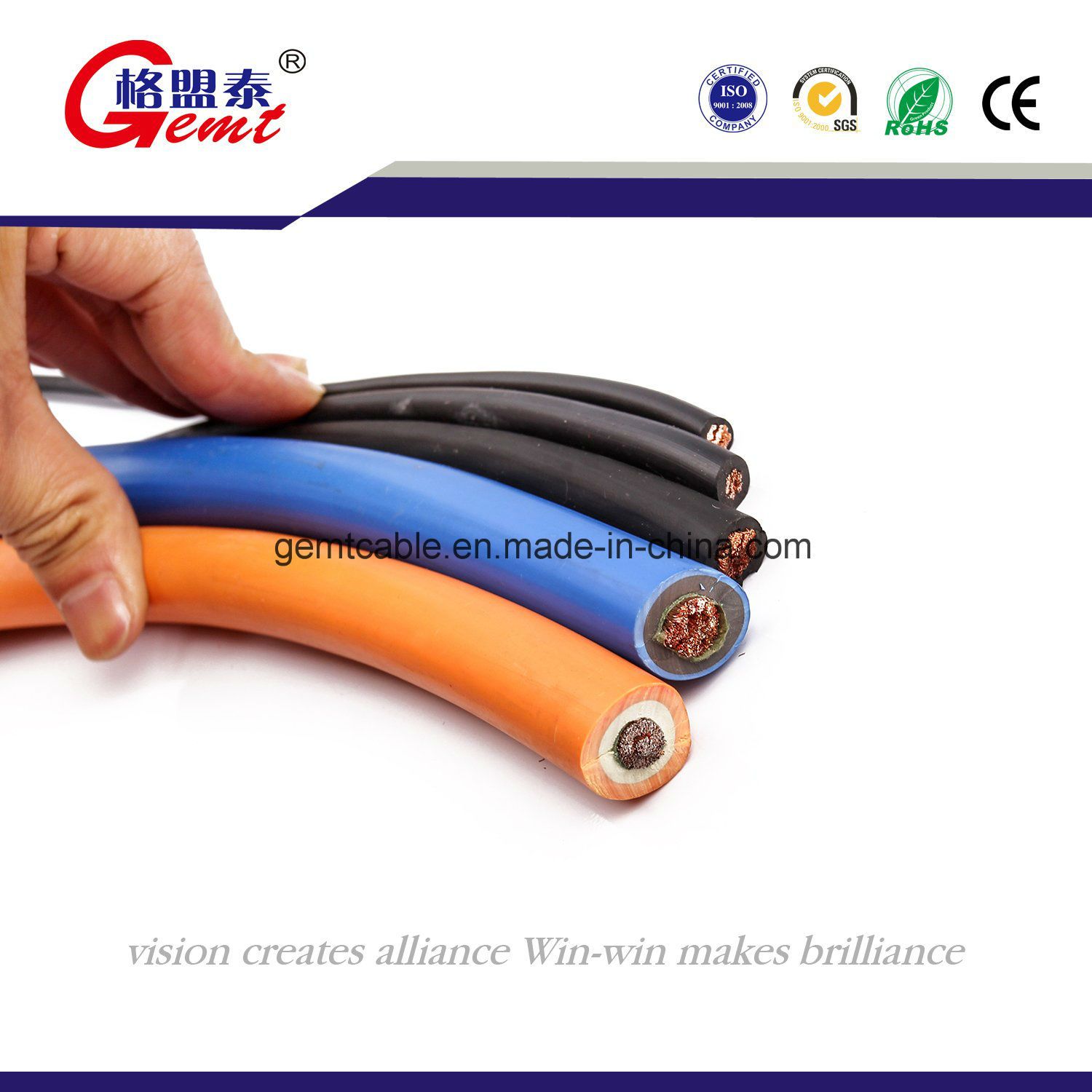

PVC insulated Rubber Insulated Welding Cable electric welding cable copper welding cable
Specifications
1.Rubber or PVC Welding Cable
2.10-190mm2
3.Copper or CCA Welding Cable
4.25 years OEM Welding cable
5.ISO,CE,ROHS,REACH
1.Standard
the welding cable can be produced according to the standard 245 IEC 81,ICEA S-75-381
2.Specific Property for Using
(1).The cable can be used in the connectors of electric weld and pliers of the electrical welding whose toward earth voltage of the low voltage is not more than AC 200 V and the pulsant DC peak value is 400V.
(2).The long-time permissible working temperature of cable is not more than 65.
3.Name and IEC Standard
(1).Rubber Sheathed Welding Cable 245 IEC 81
(2).Rubber Sheathed Welding Cable 245 IEC 82,which is made of chloroperene or the composite stretchy materials.
4. Conductor Materials: Copper
5. Jacket: Rubber or PVC
6. Applications: For Welding Machines and so on
7.The general data of the cable 245 IEC 81 and 245 IEC 82
No minal Section
Area(mm2) | Copper Wire
No./Dia.(mm) | Insulated Sheath
Thickness(mm) | Average of the Max
Outer Dia(mm) | Conductor Resistance
at 20(≤Ω/km) | Weight
(kg/km) |
| 10 | 322/0.20 | 1.80 | 9.7 | 1.91 | 151.6 |
| 16 | 511/0.20 | 2.16 | 11.5 | 1.61 | 224.0 |
| 25 | 798/0.20 | 2.14 | 13.0 | 0.758 | 326.0 |
| 35 | 1121/0.20 | 2.07 | 14.5 | 0.536 | 430.0 |
| 50 | 1596/0.20 | 2.22 | 17.0 | 0.379 | 600.0 |
| 70 | 2204/0.20 | 2.29 | 19.5 | 0.268 | 818.1 |
| 95 | 3002/0.20 | 2.50 | 22.0 | 0.198 | 1082.7 |

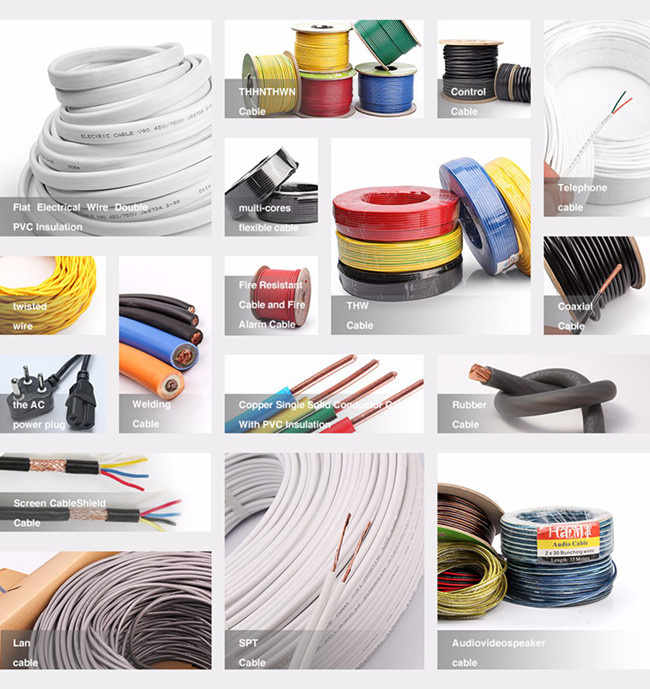

Related Products
Our Company
Gemt Cable Co., Ltd is a professional manufacturer and supplier of Lan cable, Flat cable, Welding cable, Speaker cable, Audio cable, Video cable, Coaxial cable, Power cable, Telephone cable, Home electrical cable, etc. With years of export experience along with excellent quality, advanced services and competitive prices, Gemt has won numerous customers' trust and support.

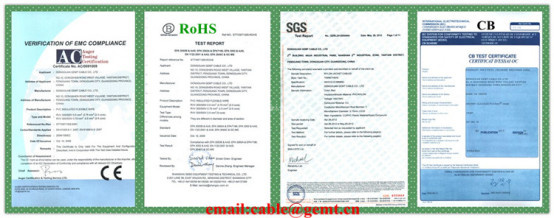

Certifications
