| Prod Model: |
S800E |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Certification: |
Ce, ISO9000 |
| Power Range: |
220V 0.4~ 2.2kw;380V 0.75-37kw |
| Voltage Range: |
170-240V;330-440V |
| Control Method: |
V/F Control, Space Vector Control. |
| Frequency Range: |
0.10~400.00Hz |
| Pid Control: |
Built-in Pid Control |
| RS485: |
Standard RS485 Communication(Modbus) |
| Protection: |
IP20 |
| Packaging Details: |
Standard Exporting Package |
| Special: |
DIN Rail Mounted |
| Application: |
High Frequency Converter Transducer |
| Output Type: |
Triple |
| Principle Of Work: |
V/F Control Transducer |
| Switch Mode: |
PWM Control |
| Main Circuit Type: |
Voltage |
| Brand: |
Machtric |
Product Description

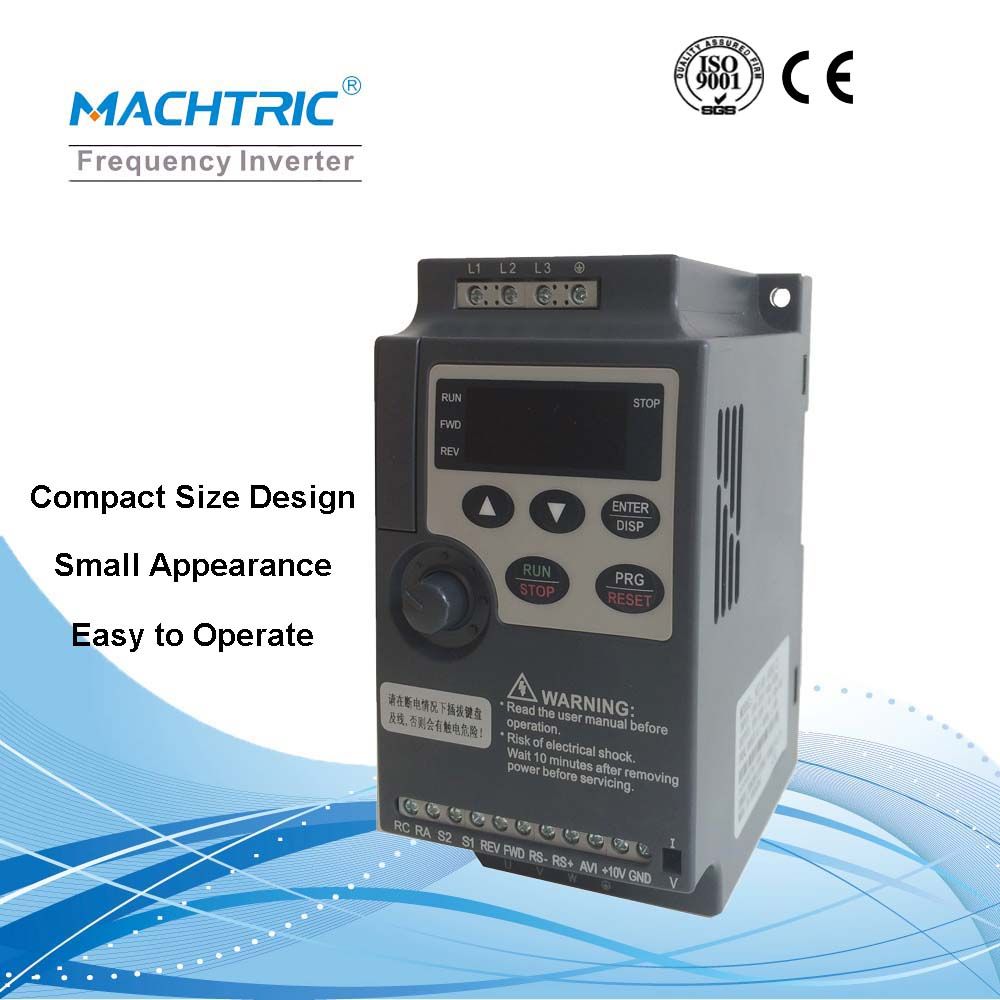

Super Mini 2.2kw Single Phase Input Variable Speed Drive VSD
Easy operate high efficient cheap din rail mounted variable frequency inverter
The cheapest frequency inverter of us, is the din rail mounted frequency inverter.
It is easy operate and high efficient;
This series with a din rail mounted function, and also can be wall mounted.
IT WAS A SUPER MINI SIZE, THE PRICE ARE VERY LOVELY AND COMPETITIVE
Apply in conveyor, simple wood cutting machine... ect.
Product Specifications| | S800E |
Power
Supply | Rated voltage, Frequency | One-phase/Three-phase AC 220V 50/60Hz |
| Voltage Range | 220V: 170~240V |
| Output | Voltage Range | 220V: 0~220V |
| Frequency Range | 0.10~400.00Hz |
| Control method | V/F control, Space vector control. |
| Indication | Operating status/Alarm definition/interactive guidance: eg , frequency setting, the output frequency/ current, DC bus voltage, the temperature and so on. |
| Control SpeciAlations | Output Frequency
Range | 0.10Hz~400.00Hz |
Frequency Setting
Resolution | Digital input: 0.01Hz, analog input: 0.1% of
maximum output frequency |
Output Frequency
Accuracy | 0.01Hz |
| V/F Control | Setting V/F curve to satisfy various load
Requirements. |
Torque
Control | Auto increase: auto raise torque by loading
Condition; Manual increase: enable to set
0.0~20.0% of raising torque. |
Multifunctional
Input Terminal | Four multi-function input terminals, realizing
functions including fifteen section speed control, Program running, four-section acceleration/deceleration speed switch, UP/DOWN function and emergency stop and other functions |
Multifunctional
Output Terminal | 1 multi-function output terminals for displaying
of running, zero speed, counter, external
abnormity, program operation and other
Information and warnings. |
| Acceleration/ deceleration Time Setting | 0~999.9s acceleration/deceleration time can be set individually. |
| Other functions | PID Control | Built-in PID control |
| RS485 | Standard RS485 communication function(MODBUS) |
| Frequency Setting | Analog input: 0 to 10 V, 0 to 20mA can be
selected;
Digital input:Input using the setting dial of the
operation panel or RS485 or UP/DOWN.
Note:AVI terminals can be used to select an
analog voltage input(AV) and analog current
input(AI) through the switch J2.
Note: AVI terminals can be used to select an
Analog voltage input (AV) and analog current
Input(AI) through the switch J2. |
| Multi-speed | Four multifunction input terminals, 15 section
speed can be set |
Automatic
voltage ID ControlliAlation regulation | Automatic voltage regulation function can be
Selected |
| Counter | Built-in 2 group of counters |
| Protection/Warning Function | Overload | 150%, 60 second(Constant torque) |
| Over Voltage | Over voltage protection can be set. |
| Under Voltage | Under voltage protection can be set |
| Other Protections | Overheat,output short circuit,over current, and
Parameter lock and so on. |
| Environment | Ambient Temperature | -10ºC to 40ºC(non-freezing) |
| Ambient Humidity | Max. 95% (non-condensing) |
| Altitude | Lower than 1000m |
| Vibration | Max.0.5G |
| Structure | Cooling Mode | Forced air cooling |
Protective
Structure | IP 20 |
| Installation | Mode | Wall-mounted or standard 35MM rail mounting |
Power range| Applicable Inverter Type | Input voltage | Motor Output
(KW) | Main Circuit Cable Type
(mm2) | Breaker
Selection
(A) | Input Side
Magnetic
Contractor (A) |
| S800-2T0.4GE | 220V | 0.4 | 0.75 | 10 | 9 |
| S800-2T0.75GE | 220V | 0.75 | 0.75 | 16 | 12 |
| S800-2T1.5GE | 220V | 1.5 | 1.5 | 25 | 18 |

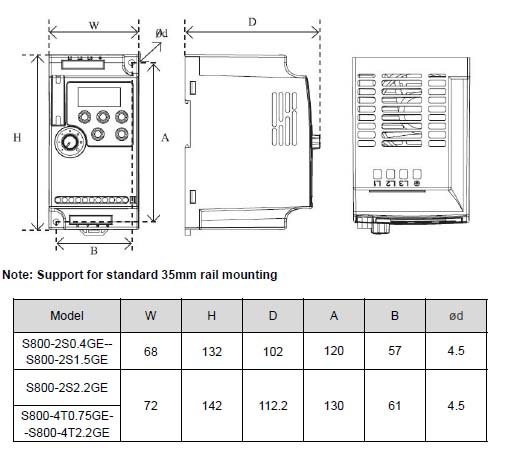

S800 Size Reference:

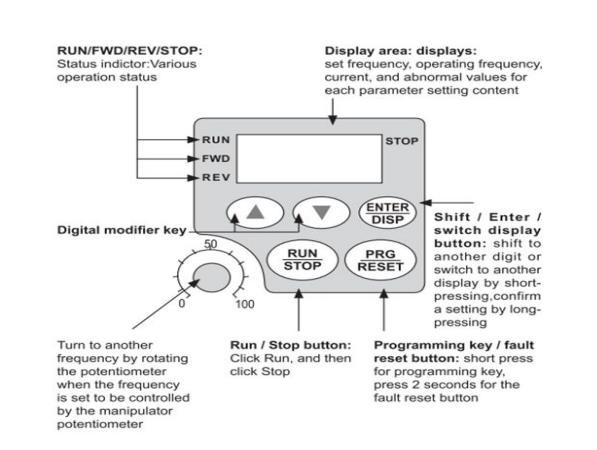

Keyboard
Application
Why choose us? 20 years experience at produce frequency inverter
10 years OEM experience for customers
Products sold for more than 40 countries
After-sales responding within 24 hours
One to one pre-sales consulting services
Factory located in Shanghai, with high-tech professional engineer teams.
