| Prod Model: |
S800E |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Certification: |
Ce, ISO9000 |
| Power Range: |
220V 0.4-2.2kw;380V 0.75-37kw |
| Voltage Range: |
220V 170-240V; 380V 330-440V |
| Control Method: |
V/F Control, Space Vector Control. |
| Frequency Range: |
0.10~400.00Hz |
| Pid Control: |
Built-in Pid Control |
| RS485: |
Standard RS485 Communication(Modbus) |
| Protection: |
IP20 |
| Packaging Details: |
Standard Exporting Package |
| Special: |
DIN Rail Mounted |
| Application: |
General Transducer |
| Output Type: |
Triple |
| Principle Of Work: |
V/F Control Transducer |
| Switch Mode: |
PWM Control |
| Main Circuit Type: |
Voltage |
| Brand: |
Machtric |
Product Description

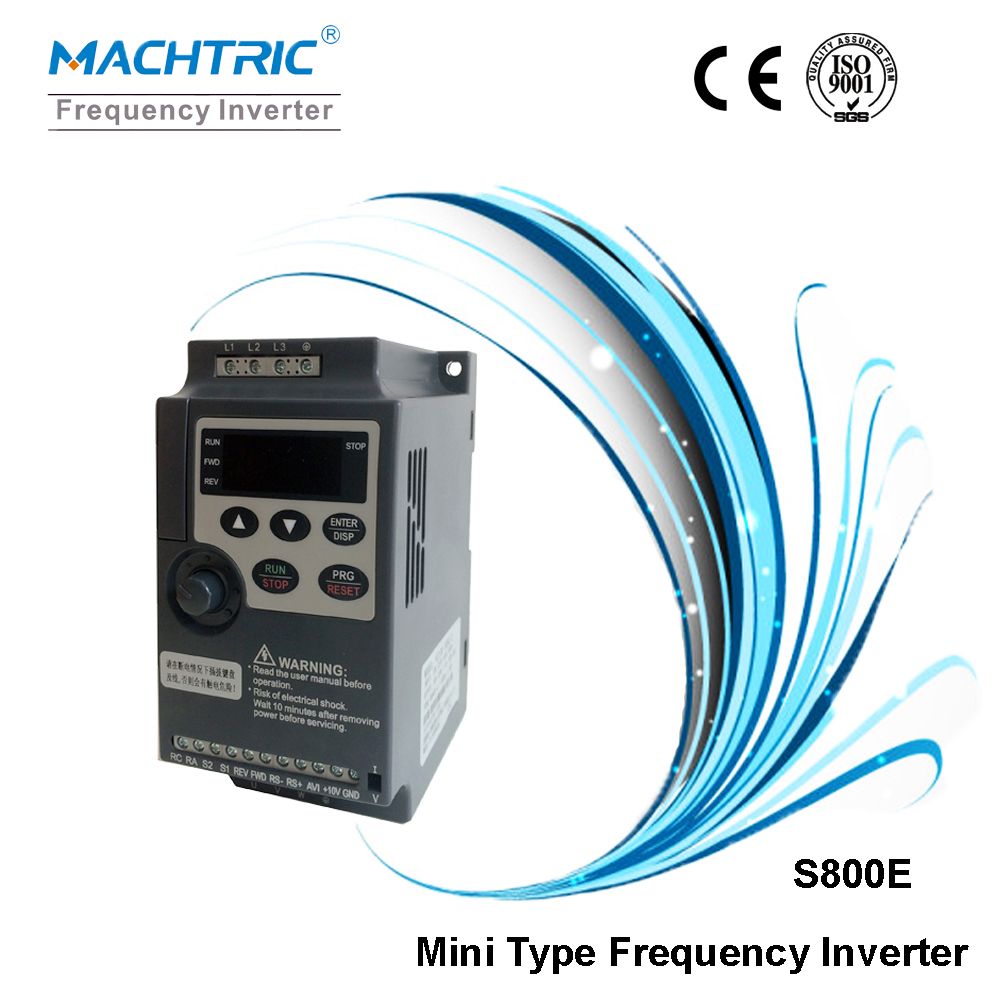

Super Mini Type S800E 400W-2.2KW AC Variable Frequency Drive 50Hz/60Hz
Mini size din rail mounted variable frequency inverter vfd
Small size with din rail mounted, wall mounted also suitable.
The din rail mounted frequency inverter is easy operate and high efficient;
Apply in conveyor, simple wood cutting machine... ect.
Product specialized
| Other functions | PID Control | Built-in PID control |
| RS485 | Standard RS485 communication function(MODBUS) |
| Frequency Setting | Analog input: 0 to 10 V, 0 to 20mA can be
selected;
Digital input:Input using the setting dial of the
operation panel or RS485 or UP/DOWN.
Note:AVI terminals can be used to select an
analog voltage input(AV) and analog current
input(AI) through the switch J2.
Note: AVI terminals can be used to select an
Analog voltage input (AV) and analog current
Input(AI) through the switch J2. |
| Multi-speed | Four multifunction input terminals, 15 section
speed can be set |
Automatic
voltage ID ControlliAlation regulation | Automatic voltage regulation function can be
Selected |
| Counter | Built-in 2 group of counters |
| Protection/Warning Function | Overload | 150%, 60 second(Constant torque) |
| Over Voltage | Over voltage protection can be set. |
| Under Voltage | Under voltage protection can be set |
| Other Protections | Overheat,output short circuit,over current, and
Parameter lock and so on. |
| Environment | Ambient Temperature | -10ºC to 40ºC(non-freezing) |
| Ambient Humidity | Max. 95% (non-condensing) |
| Altitude | Lower than 1000m |
| Vibration | Max.0.5G |
| Structure | Cooling Mode | Forced air cooling |
Protective
Structure | IP 20 |
| Installation | Mode | Wall-mounted or standard 35MM rail mounting |

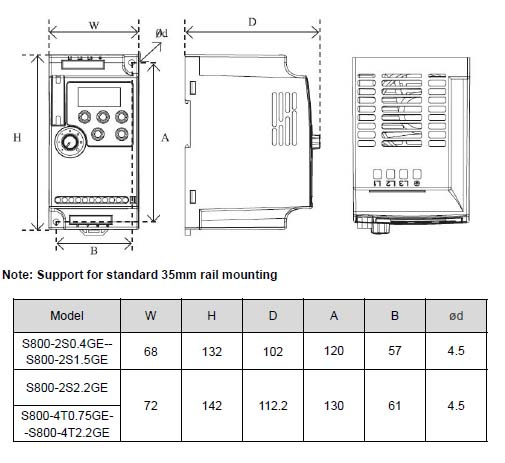

Product size

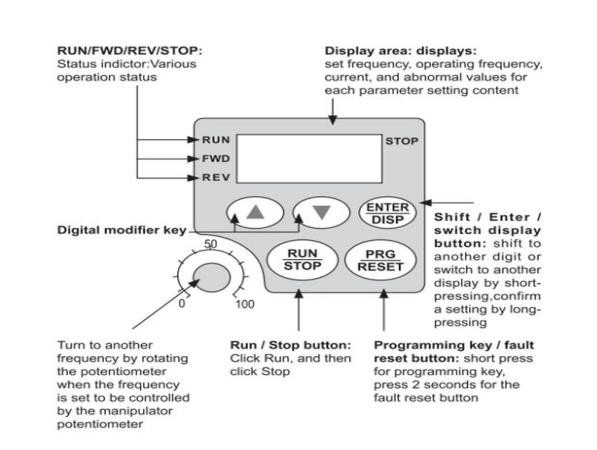

Keyboard

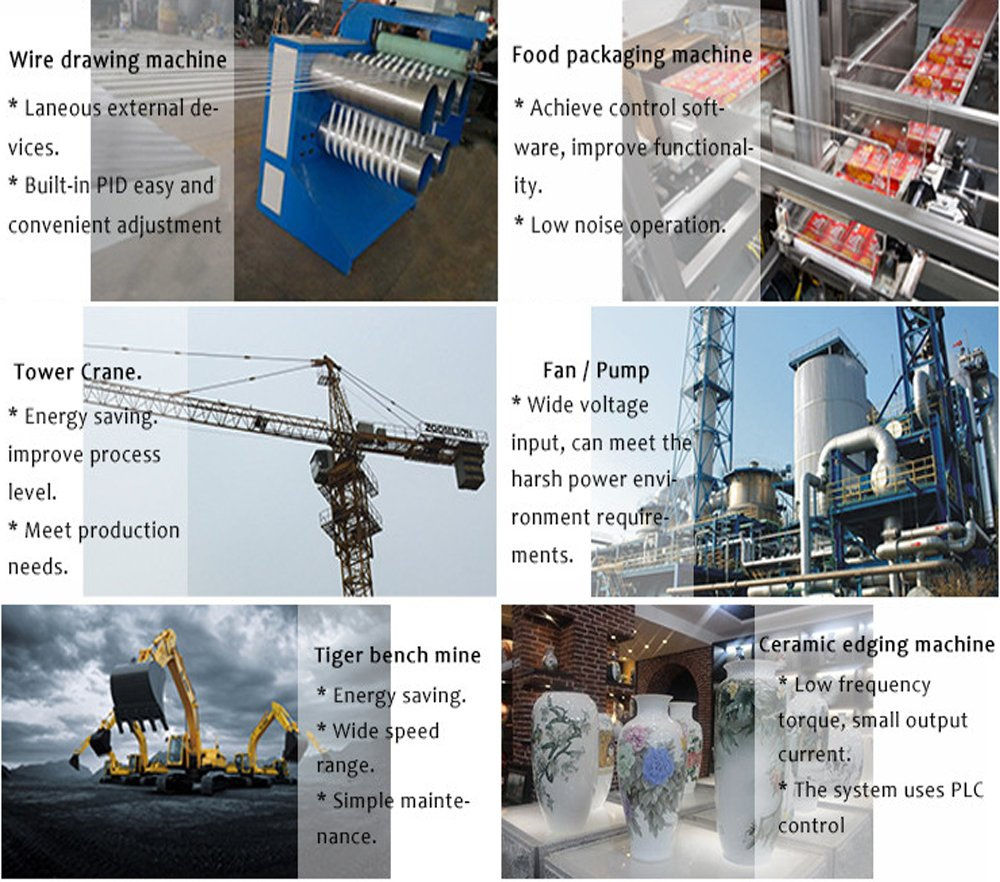

Application
Why choose us? 20 years experience at produce frequency inverter
10 years OEM experience for customers
Products sold for more than 40 countries
After-sales responding within 24 hours
One to one pre-sales consulting services
Factory located in Shanghai, with high-tech professional engineer teams.
