| Prod Model: |
LC013 LCF013 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Eastern Asia,Western Europe |
| Color: |
Black |
| Max. Switching Capacity: |
10W (Resistive Load) |
| Max. Airflow Velocity: |
50m/S |
| Service Life: |
> 100 000 Cycles |
| Protection Type: |
IP20 |
| Protect Feature: |
Sealed |
| Quality Guarantee: |
2 Years |
| Wires: |
Two-Wires |
| Certification: |
CE |
| Type: |
Reed / Magnet Contact |
| Principle: |
Wind Sensor |
Product Description

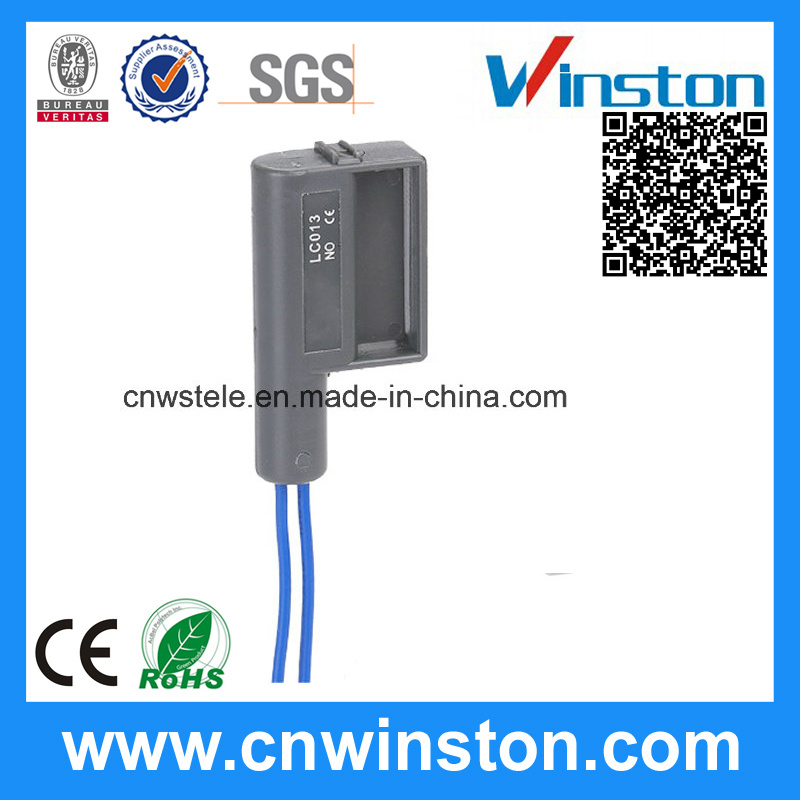

Airflow Monitor (LC 013 / LCF 013) (LC013 LCF013)
Mechanical switch contact
Versatile fields of application
Small size
Easy to connect
The airflow monitor (NC / NO) is designed to indicate the loss of air movement of a fan or filter fan. (NC/NO). The contact detects the loss of air movement caused by fan failure or blocked filter media regardless of direction of air...Its simple mechanical operation makes it a viable alternative to electronic monitoring systems.
Technical
>>DownloadPlease find a detailed description of area of application, as well as the functionality of our Airflow Monitor LC 013/LCF 013 in our new Application Leaflet in pdf format >> Download PDF (1MB)
| Contact type | reed / magnet contactH | | Normally closed (NC) | switch contact open when air is flowing | | Normally open (NO) | switch contact closed when air is flowing | | Max. | NC: 240VDC (UL), 240V AC/DC (VDE) / NO: 240VAV/DC /NO:60VDC | | Max. | NC: DC 500mA / NO: DC 170mA | | Max.switching capacity | 10W (resistive load) | | Switching threshold of airflow velocity | > 2.5m/s (hysteresis: > 1m/s) | | Max.airflow velocity | 50m/s | | Contact resistance | < 370mOhm (with wire) | | Max.air humidity | 70% RH (not precipitating) | | Service life | > 100 000 cycles | | Connection | 2 x single strand AWG 28, length 500mm, tip of stranded wire 5mm stripped and tinned (NC: black, NO: blue) | | Mounting | alternatively integrated in protective grille (see table), mounting clamp or mounting clip | | Casing | plastic according to UL94-HB, black | | Fitting position | bidirectional tab perpendicular to airflow | | Operating/Storage temperature | -20 to +50°C (-4 to +122°F) / -20 to +80°C (-4 to +176°F) | | Protection type | IP20 | | Approvals | CE | | Note | The product of switching voltage and switching current must not exceed 10W. The max. voltage and max. current must not be exceeded, not even short-term (voltage/current peaks). The resulting voltage and current peaks of inductive or capacitive loads must be restricted by a contact protection circuit. |
|
| Technical |
| Description | Art.(NC) | Art.(NO) | Dimensions | Weight (approx.) | | Airflow monitor with mounting clamp and mounting clip LC 013 | 01300.0-00 | 01300.1-00 | 34 x 17.5 x 7.5mm | 5g | | Airflow integrated in protective grille (plastic) LCF 013 | 01301.0-00 | 01301.1-00 | 80 x 88 x 10.5mm | 20g | | Airflow integrated in protective grille (plastic) LCF 013 | 01302.0-00 | 01302.1-00 | 92 x 92 x 10mm | 20g | | Airflow integrated in protective grille (plastic) LCF 013LCF013 | 01303.0-00 | 01303.1-00 | 120 x 120 x 10mm | 30g |
|
