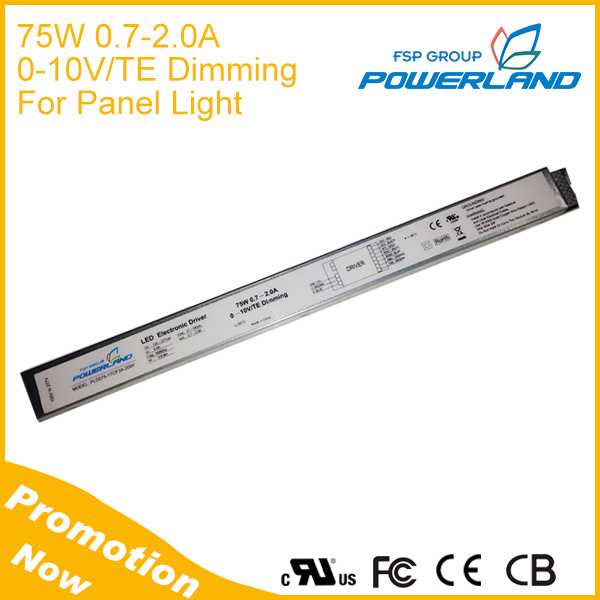

UL Listed 75W 2000mA 0-10V Dimming Led Driver
0-10V Dimming
External Resistor Current setting

PLD075-1TCF3A-2000 is a constant current led driver with wid-range dimmable output current and 108-305Vac universal input.
The output current of this series is to 2000mA with external resistor current setting and designed for 0-10V dimming application.

Applications
Indoor LED lights
Led Lights with flexible current settings
Led panels, Led fixture with super slim form factors

Specification

Input Voltage	Output Power	Output Voltage	Output Current	Efficiency	Max. Case Temperature	Max. Input Current	Max. Input Power	THD	Power Factor
108~305Vac	75W	27-54V	0.7A-2.0A	91%	90ºC	0.9A	86W	<20%	>0.95

* Based on 25ºC ambient temperature, rated input voltage, and full load.
** Refer to Page 2 for detailed specifications for this series of LED drivers.

Features
100,000 hours lifetime at 65ºC Tcase
5 years warranty at 70ºC Tcase
Output current output
Compatible with 0-10V dimming
Output current settable with external resistor
Universal input voltage:108-305Vac
Safety according to UL1310 & EN61347-2-13
UL class 2 output
EMC according to FCC part 15 Class B
Lightning, OVP, SCP, OTP & Open Circuit Protection Electrical Specification

Electrical Specifications

Model	PLD075-1TCF3A-2000
Output Voltage	27~54V
Output Current	70~2000mA
Dimming	0~10V Dimming
Current setting with resistor	Yes
Output Power	75W
Max. Current Ripple	200mA
Voltage Range	108~305Vac
Frequency Range	47~63Hz
Max. Input Current @ 230Vac	0.9A
Max. Input Power	86W
Power Factor	>0.95 @ 115Vac & 80~100% load, >0.90 @ 277Vac & 80~100% load
Efficiency	91%
Max. Open Circuit Voltage	60V
THD	<20% @ 120Vac & 80~100% load, <20% @ 277Vac & 80~100% load
Protections	OVP, OTP, OCP, SCP
Environmental Protection	UL Dry & Damp & Wet, and Type TL
Working Temperature	-20~+50ºC
Max. Case Temperature	90ºC
Surge Protection	1kV/2kV
Agency Approbations	UL1310 Class 2
Electromagnetic Compliance	Per Title 47 CFR Part 15 Class B
Ansi Surge Type	1.2/50μs Combination Wave (w/t 2Ω)
Isolation	Primary to Secondary: 3750Vac / 10mAMax / 60seconds
Dimension	428x31x26.5 mm (16.86x1.22x1.04 inch) Plastic Case
Mounting Length	418 mm (16.48inch)
Overall Length	428 mm (16.86inch)
Weight	0.44 kg (097 lb)
Life Time	100,000 hours @ full load, 65ºC Tcase

* Unless otherwise noted, the data are based on 25ºC ambient temperature, 230Vac input voltage, and full load.

Electrical Specification

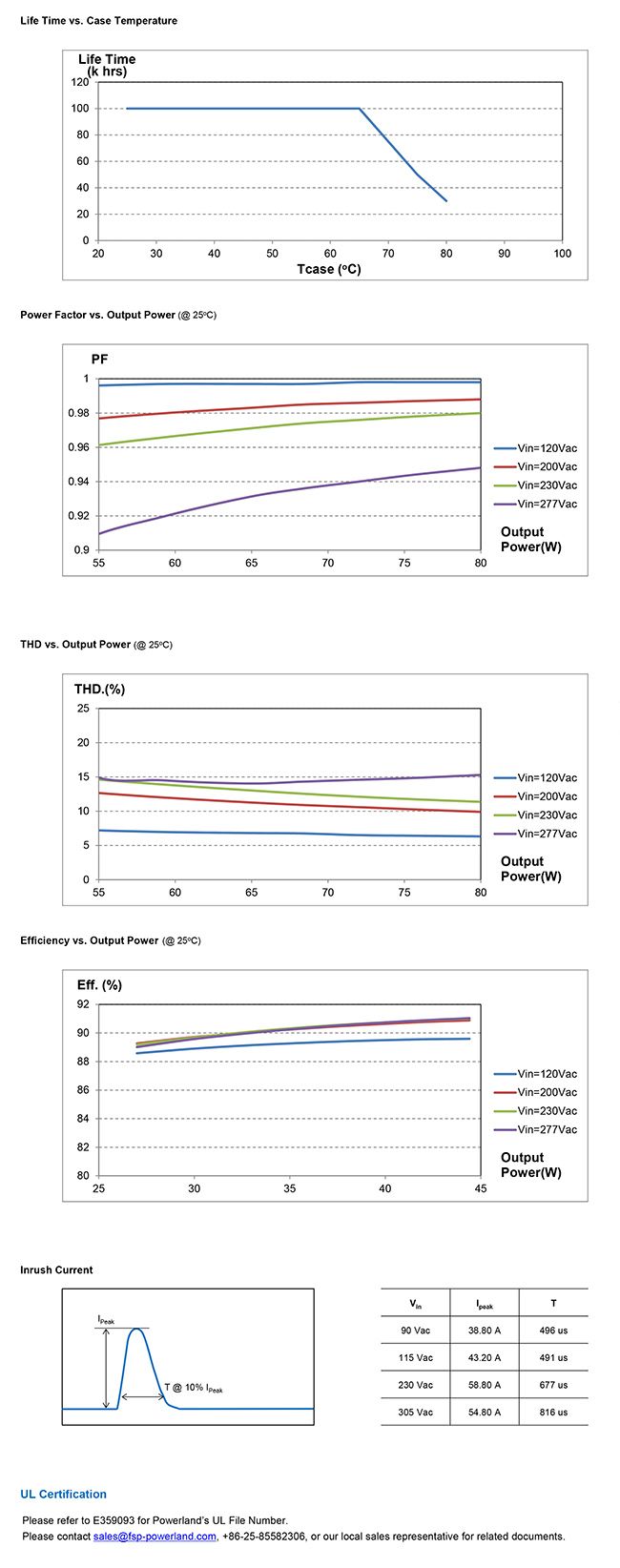

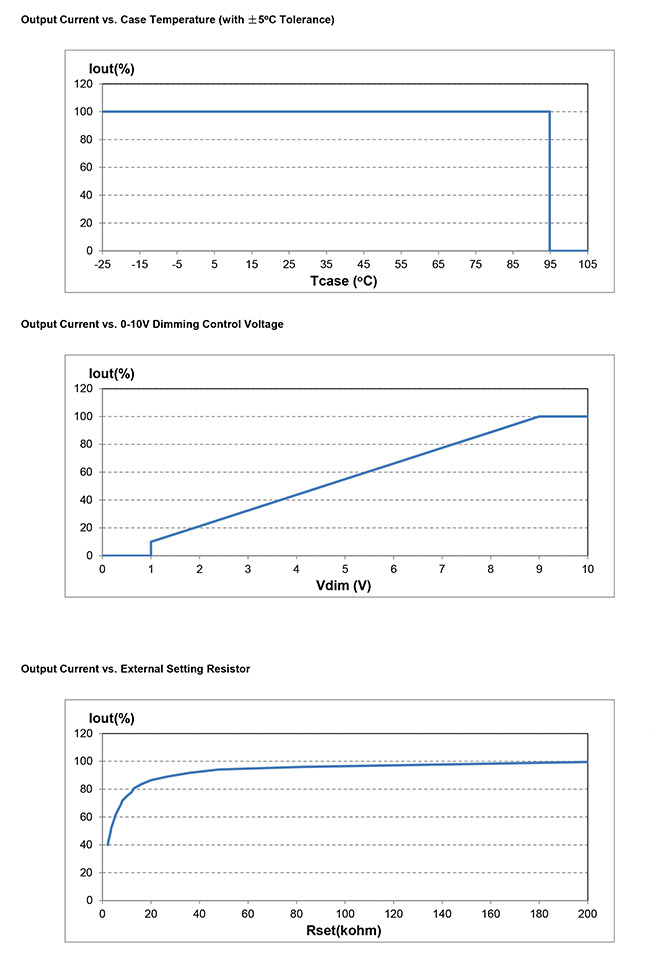

Performance Characteristics (Test wtih PLD075-1TCF3A-2000)
