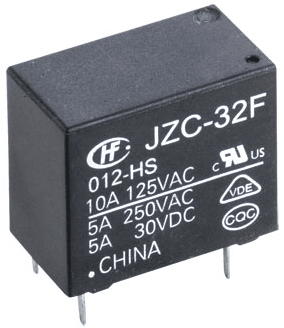

Super Small Medium Power Relay

Prod Model:	32F

Product Description

1Parameter description

Is there any spot in stock:	yes	Authentication:	CQC,TUV,UL,VDE
brand:	HONGFA,JINTIAN	Phase number:	1
The number of poles:	1	contact form:	Normally open
Contact load:	High-power	According to the principle of action:	Communication
Working circuit:	Low voltage control circuit	Protective features:	Plastic
Shape size:	miniature	application:	currency
Model specification:	32f	trademark:	jintian

2.Detailed introduction
External type (long * width * high): 18.4*10.2*15.3mm,Main features. 10A contact switching capability. Standard printed board lead feet.There are two ways of encapsulation with plastic sealing and solder resist. It has a set of normally open and a set of switching contacts.Contact form 1H, 1Z,Material AgNi, AgCdO.Maximum switching voltage 277VAC/30VDC.Maximum switching power250VA/150W.Rated load (resistance)1H:10A 125VAC 5A 250VAC/30VDC 1H-Q:10A 250VAC 1H-L-Q:8A 250VAC 1H-L,1Z:3A 250VAC/30VDC.Rated voltage of coil:3~48VDC .Coil power consumption0.2W,0.45W .insulation resistance100MΩ .Dielectric Strength500VAC.Ambient temperature -40 degrees - 70 degree.Action time / release time 8ms/5ms.The 7 times of the mechanical life (min) 1*10.The 5 times of the electrical life (min) 1*10.Elicited end mode printed plate.Security certificationUL&CUR VDE CQC.Authentication number.E133481 115366 CQC02001001942
3Figure, wiring diagram, installation hole size
Shape diagram
A group of constant opening
A set of conversions
Wiring diagram (bottom view)
       A group of constant opening
           A set of conversions

Installation hole size (bottom view)
 A group of constant opening

     A set of conversions

Note: size tolerances are not indicated in part of the product,Shape and sizeGrid width is2.54mm
