Superlink Facory Manufacture Power Cable Enhanced Cat5e

Name: Superlink Facory Manufacture Power Cable Enhanced Cat5e
Brand: all-electronics-online.com
SKU: 838482755
Availability: InStock
Rating: 4.8 (124 reviews)

Price:	US $ 0.1-1/Meter
Min Order:	30000/Meter
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	H03VV-F H05VV-F
Insulation:	PVC

Product Description

SUPERLINK Facory Manufacture Power Cable Enhanced CAT5E

Product Description

*Condcutor: Bare or tinned, stranded or soild copper conductor

*Insulation: Lead free PVC

*Reference standard: GB5023.5-97

Electrical characteristic

*Rated voltage:300/500V

*Rated temperature:70ºC

*Test voltage: 2500V(5min)

Application

For power supply cord

Product Type	Cores	Cross Section	Conductor No.	Jacket Dia mm	Maxmium Resistance 20ºC Ohms/km
H03VV-F	2	0.75	24/0.20	5.5	25
H03VV-F	3	0.75	24/0.20	6.6	25
H05VV-F	2	0.75	24/0.20	6.6	26
H05VV-F	3	0.75	24/0.20	7.2	26
H05VV-F	2	1	32/0.20	7.2	19.5
H05VV-F	3	1	32/0.20	7.4	19.5
H05VV-F	2	1.5	30/0.25	8	13.3
H05VV-F	3	1.5	30/0.25	8.5	13.3
H05VV-F	2	2.5	50/0.25	8	13.3
H05VV-F	3	2.5	50/0.25	8.5	13.3

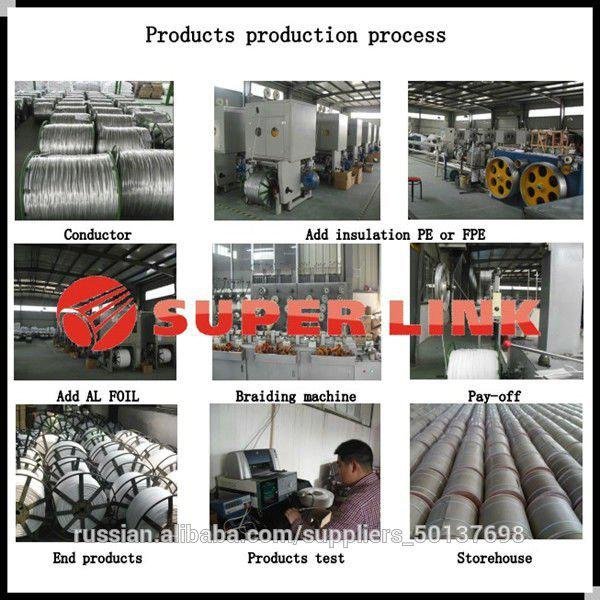

producing process

Certifications

We got a serious of certification of cable manufacture and material , including UL, CPR, ETL, CE, ROHS, REACH, which guarantee our high quality and environmental products.

Our Services

1. Free sample
2. We can suggest you our suitable products when u have no idea about the cable.
3. If available for you, welcome to visit our factory.
4. We can according to your samples to produce exactly the same product
We will do the QC test for
6. If our customer have any problem, we will reply at 24 hours

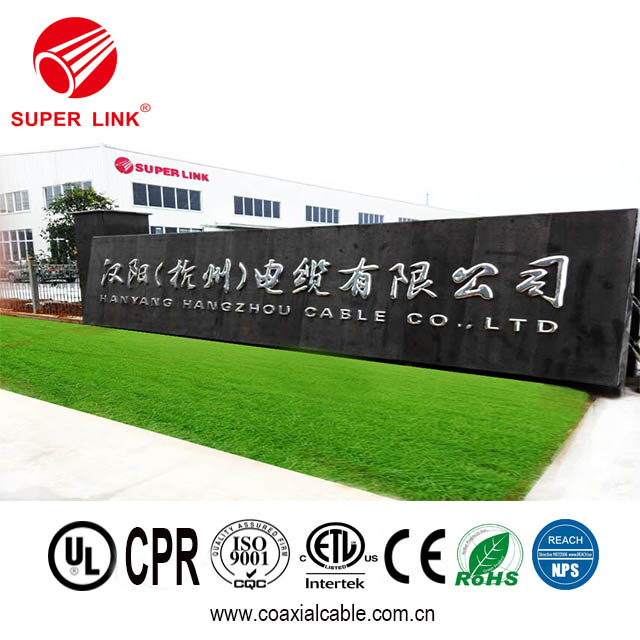

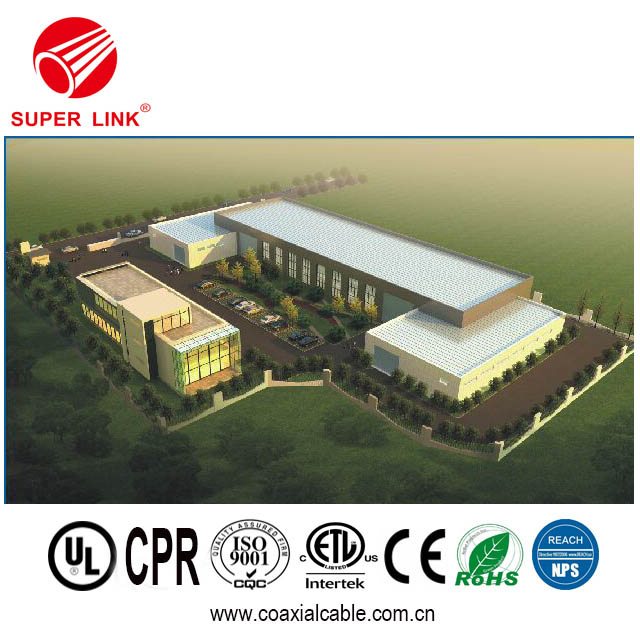

Company Information

Hanyang(Hangzhou)Cable Co., Ltd. belongs to the Superlink Holding Limited, which established in 1990, located in Lin'an Hangzhou City. ''Super Link'' is our brand name. we are the member of the IWMA specializes in the production of cable, such as coaxial cable, network cable, speaker cable, etc. which are highly appreciated by oversea users. We focus on providing high quality OEM/ODM products and services to clients all over the world.

Hangyang(Hangzhou) Cable Co., Ltd. is located in Linan Hangzhou City, Which specializes in the production of coaxial cable RG6, RG58, RG59, RG7, RG8, RG11, RG59+Power cable etc. And network cable TP/FTP cat5e, CAT6, cat7.

We focus on providing high quality OEM/ODM cables and services to clients all over the world. All cables were produced in accordance with IEC, We also passed ISO901 Quality Certification, to maintain high quality standards, we use HP network analyzer to test every batch of cable.

"Quality first, service first, continuous improvement and innovation to meet the customers" is our principle; We sincerely hope establish long and friendly business relationship with clients from all over the world. Our goal is not just providing product, but also providing a complete solution for our customers to achieve their upmost satisfaction
