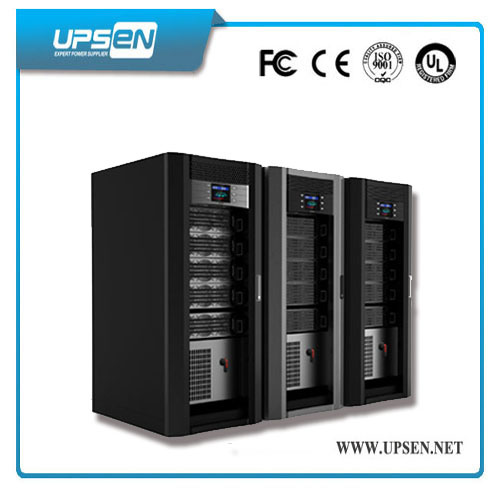

Superpower System Modular Online UPS with Parallel Function

Prod Model:	Modular Star Series
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Power Factor:	> 0.99
Input Voltage Window:	-40%~+25%
Battery Voltage:	± 240VDC
IP Class:	IP20
Phase:	Three Phase
Type:	On-line
Protection:	Overvoltage
Brand:	Upsen

Product Description

Superpower system modular Online UPS with Parallel Function
Model: Modular Online UPS Power Melody Star Series (3ph in/3ph out)

Modular UPS Quick View

1: Modular UPS Built-in Static Switch
2: UPS with Intelligent module and system protection design
3: Balanced input/output current technology
4: Superior energy saving and environment-friendly

Key Features
1:10, 15, 20kVA modules available
2:Up to 10 modules per cubicle
3:From 20 to 200kVA
3:>95% Double conversion Efficiency
4:0.8 / 0.9 output Power Factor
5:Unity input Power Factor (0.99)
6:< 3% Input THD
7:Digital DSP control by rectification, inversion, charge and discharge
8:Provide large LCD touch screen (optional)
9:IGBT rectifier and high input power factor (>0.99)
10:Advanced DSP full digital control technologies realize higher system stability, online capacity expansion and maintenance
11:Complete communication: RS232/RS485/dry contact/SNMP
12:Design for modular UPS system, N+X redundancy, update hot swap


Easy Operation and Installation:
RM series offers a high installation flexibility that reduces installation time. Consequently, it is very easy to maintain and to control each module which provides highest reliability and best protection for supplied load. With the large touch screen LCD panel, the user can easily access to the information of every power module.

Smart Battery Management:
Each UPS module is built with a separate 3.2kW charger. With 10 installed modules, the total charging power will equal to 32kW. This charger is controlled by a DSP with intelligent digital arithmetic that enhance battery lifetime.

Smart Protection System:
All the power modules and systems are protected simultaneously by the hardware and the software. All kinds of protection functions are achieved, including current and voltage monitoring, temperature monitoring and short circuit etc . This smart monitoring enhance reliability and availability as the operator is able to anticipate potential problems prior these occur.

Technical  Specification

MS Series 10K-200Kva
Capacity	10-200KVA
Main Input
Input voltage	380V/400V/415V(line to line)
Input frequency	50/60Hz
Power factor	> 0.99
Input cuurent THD(Total Harmonic Distortion)	< 3%
Input voltage window	-40%~+25%
Frequency window	40-70HZ
Battery
Battery voltage	± 240VDC
Charger power	20%*Power
Charger voltage precision	1%
Bypass
Bypass voltage	380V/400V/415V, three phase
Bypass voltage window	-20%-+15%, full load, settable
Bypass overload capabiltiy	150%, long time operation
	180%, shut down after 10 minutes
	> 180%, shut down after 200ms
Output
Output voltage	380V/400V/415V, three phase
Voltage precision	± 0.5% (balance load), ± 1% (unbalance load)
Voltage THD(Total Harmonic Distortion)	THD< 1%(linear load), THD< 3%(nonlinear load)
Power factor	0.8
Phase tolerance	120° ± 0.5° (balance and unalance load)
Crest factor	3: 1
Overload capabiltiy	110%, transfer to bypass after 1hour
	125%, transfer to bypass after 10 minutes
	150%, transfer to bypass after 1 minute
	> 150%, transfer to bypass after 200ms
System
System efficiency	Normal mode: 95%
	ECO mode: 99%
Battery mode efficiency	95%
Display	LCD+LED, Touch screen and keyboard
IP class	IP20
Interface (Communication Ports )	RS232, RS485, Dry contacts, SNMP card, EPO, Generator interface
Installation/Connection	Top or bottom cable connection
Operation temperature	0-40C
Storage temperature	-25~70C
Relative humidity	0-95% (non-comdensing)
Noise(dB)	< 55dB
Weight(KG)	6-module cabinet	150KG
	10-module cabinet	180KG
	Module	10KVA: 20KG
		15KVA: 21KG
		20KVA: 22KG
Dimension(W*D*H)(mm)	6-module cabinet	600*900*1600
	10-module cabinet	600*900*2000
	Module	400*600*133 (10KVA/15KVA/20KVA)

Competitive Advantages:

1: Three Years' warranty for Online UPS, and 1% free UPS or 2% free PCB Boards
2: Good after-sales service, we will be full responsible for any faults caused by our side
3: Professional experience in power field more than 10 years
4: Professional technical support before and after sales
5: Timely response, fast delivery time and flexible operations to satisfy any customers' special requests.
6: Free OEM & ODM Service
7: Competitive price, quality and mature products
