Suppliers in China High Precision Standard Mini Clamp-on Current Sensor

Prod Model:	XQ20
Ratio:	1000: 1 or 2000:1 (Customized)
Accuracy Class:	0.1%, 0.2%
Primary Current:	0 - 200A AC
Secondary Output:	0 - 200mA AC (Customized)
Max. Cont. Input Current:	240A
Over Voltage Category:	Cat III 600V
Output Signal (AC Current):	From 0 to 200mA AC at Nominal Input Current
Weight (G):	550
Max. Jaw Opening (mm):	50
Output Signal (AC Voltage):	From 0 to 2V AC at Nominal Input Current
Application:	Instrument
Type:	Current Transformer
Phase:	Single

Product Description

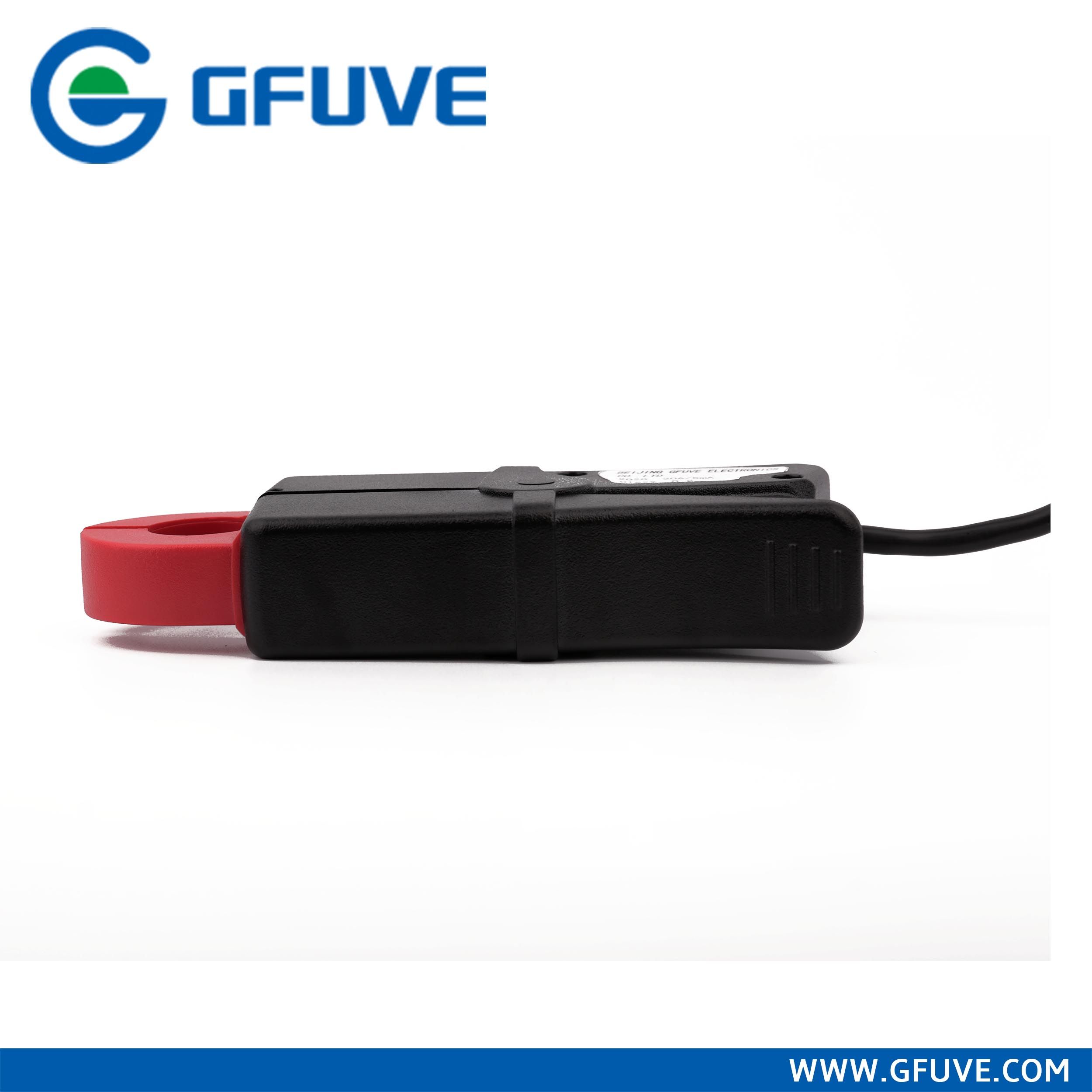

XQ20 High Precision Standard Mini Clamp-on Current Sensor Ct

The model XQ20 clamp on current sensor is suitable for 200A cable online measurement, the user friendly shape make It easily clamp onto cables or bus bars.

Special features of current sensors, such as configurable sensing ranges in the field, split core housings that wrap around existing cables and self-powered models allow you to find the perfect solution for current detection in any application.


Applications	Features
1.  Electric energy meter calibrator (on site) 2.  Double clamp type ground resistance tester 3.  Double clamp type phase volt-ampere meter 4.  Digital multi-meter 5.  Multi-function energy meter 6.  Oscilloscope 7.  Power quality analyzer 8.  Matched instruments 9.  Calibration instrument on site	1.  Measurement range of 1mA to 200A  AC 2.  Small, compact size 3.  Improved ergonomic design and easy operation 4.  Low phase shift for power measurement 5.  With load capacity ≤4Ω 6.  Output model: Lead output(2.5m)
