Supply Button Switch High Quality Self Lock Switch 8*8

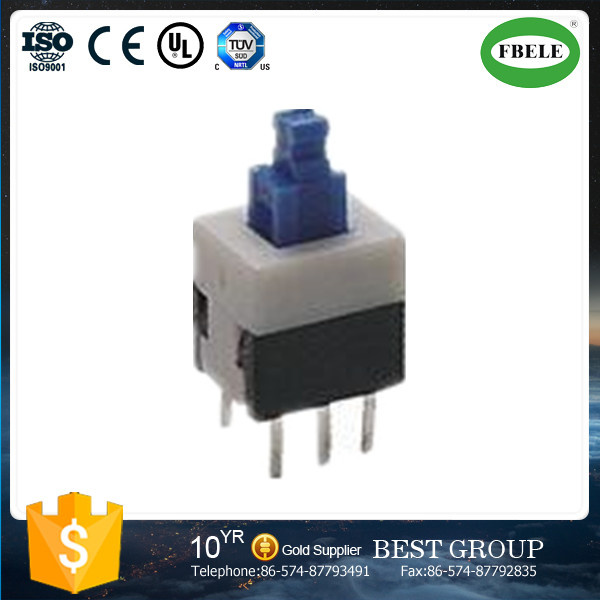

Name: Supply Button Switch High Quality Self Lock Switch 8*8
Brand: all-electronics-online.com
SKU: 785811525
Availability: InStock
Rating: 5 (123 reviews)

Price:	US $ 0.2/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	100/Piece
Pay Type:	L/C,T/T,D/P,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	FBTC0808
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size:	8*8
Resistance:	30mohm
Current:	50mA
Rated Voltage:	12V
Type:	Standard
Installation Form:	Insert Welding
Structure:	1-Point Contact
Package:	SMT Chip Package
Application:	Audio and Video Products
Shape:	Rectangular
Shrapnel:	Silver
Certification:	CE

Product Description

FBELE Company, (Ningbo Best Group Co., Ltd. ) are Chinese leading manufacturer and distributor in electronic components. We can offer quality products in very competitive price for electronics components, as well as best service, in time delivery, small order acceptable, etc.

Fast is our principle, our normal delivery time as below:
Sample delivery date is: 1-3days.
Production delivery time: 7-10days.
New product development: 15-20days

Our Company Advantage:
1, Reliability production
2, Famouse Brand "FBELE", Best Reputation
3, well experienced R&D engineer
4, Effective working Team
5, Aggressive Price
6, Constant New products
Don't hesitate, E-mail us immediately now.
you will get your best solution.

Self-locking switch specification:

1, RATING (rated value) 0.1A/0.5A 250V/AC:DC60V

2, contact resistance; MAX.30 ohm 100m.

3, insulation resistance: MIN.100 ohm more than 100M.

4, resistance to voltage: input 500V AC (50-60Hz) voltage, 1 minutes sense current is 0.5mA, according to the following

Contact method test:

(1) no contact between the row of feet.

(2) between the foot and the housing.

No abnormalities such as insulation failure.

5, action force: 60-70

6, solderability test: terminal top soldering pool is immersed in the depth of 2mm, the temperature is 260 DEG C + 5, 3 + 0.5 seconds time. Welding area should be more than 75%.

7, resistance to welding test: welding furnace welding temperature control at 260 + 5 degrees Celsius, over the furnace time 3 + 0.5 seconds, in (substrate) thickness of 1.6mm hand welding method 320 + 5 degrees Celsius, 3 + 0.5 seconds. The body can not be deformed, and can be satisfied with the performance of mechanical and electrical properties.

8, life test: no load:

Will be combined with the standard plug (as much as possible to the center of the center) in the

1 minutes to 15~18 speed, for the 100000 time

Pull

9, heat resistance test: placed in the temperature 85 + 2 degrees C test 96 hours, then placed the normal

Determination of 1 hours at room temperature. Appearance without exception, to meet the mechanical and electrical properties.

10, cold tolerance test:

Placed in the temperature of -25 + 3 degrees Celsius in 48 hours, and then placed in normal temperature and humidity

Determination of 1 hours.

Appearance without exception, to meet the mechanical and electrical properties

11. Wet test:

Place 40 + 2 C, the relative humidity is 48 in 90~96%Hr environment.

Hours later, the sample version will be placed in a normal environment for 1 hours after the test.

Appearance without exception, to meet the mechanical and electrical properties

12, test standard state:

Temperature, humidity, and air pressure are tested in the absence of specified conditions:

(1) the temperature is 5~35 degrees Celsius.

(2) the humidity is 45%~85%.

(3) the air pressure is 86Kpa~106Kpa.

13, the use of temperature range: in the ~+60 C -10 C temperature
