Supstech Full Digitized Control Line Interactive UPS

Name: Supstech Full Digitized Control Line Interactive UPS
Brand: all-electronics-online.com
SKU: 809672205
Availability: InStock
Rating: 4.5 (144 reviews)

Price:	US $ 25-120/Piece
Min Order:	200/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	SUN-B Series
Overload:	>110% Alarm Shutdown
Input Voltage Range:	160-287VAC
AVR:	Intelligent Auto AVR Function
Phase:	Single Phase
Type:	Line Interactive
Protection:	Unbalanced Loads
Standby UPS:	Modified Sine Wave
Brand:	Supstech

Product Description

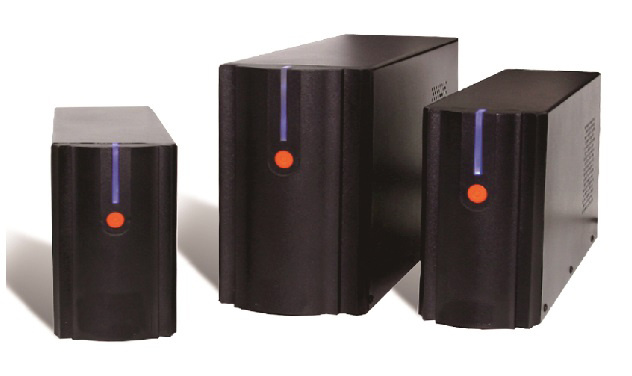

SUN-B Series Line-Interactive UPS(400-1500VA)

SUN-B Series UPS can be used as office devices backup power, PCs, POS machine, SOHO, or other small security devices.

High Performance Index

Full-digitized control with comprehensive monitoring and protections

Multi-Level AVR function under utility mode to protect connecting devices/loads.

Powerful communication function and surge protections to keep normal operations.

Intelligent empty load auto-detection and shutdown function to enhance battery lifetime.

Capacity	400VA/240W	600VA/360W	800VA/480W	1000VA/600W	1500VA/900W
UPS Structure	Line-Interactive Design
Protection Functions	Overload; Short-Circuit; Over Temp.; Utility Voltage High/low; BAT Voltage High/low(Shutdown Protection)
Overload	> 110% Alarm Shutdown
Short-Circuit	Input Fuses Protection( >AC Mode >), >Circuit Auto Protection >( >BAT Mode >)
Noise Suppression	EMI / RFI Filter
Modem	SB-C:2 Piece of RJ11 SB-N: None
Display	LED Display, UPS Operational Status, BAT Fault, other fault information
Alarm	Utility Power Fault, BAT Low, Overload, UPS Fault
Mute	Auto
Temperature	0 ~ 40ºC
Humidity	< 95% Non-Condensing
Input Voltage Range	160-287Vac
AVR	Intelligent Auto AVR Function
Output Voltage(AC mode)	220Vac± >10% >( >Utility Power Voltage within >± >20% >)
Output Voltage( >BAT Mode >) >	220Vac±3%
Output Waveform	Modified Sine wave( >BAT Mode >)
AC-DC Switching Time	2-5ms
Type	Sealed Lead-Acid Maintenance Free Battery
Rated Voltage/ Units	12V/7Ah×1 Unit	12V/7Ah×1 Unit	12V/9Ah×1 Unit	12V/7Ah×2 Units	12V/7Ah×2 Units
Charging Time	4 Hours to 80%
Backup Time	5-15 Mins
Telecommunication	RS232/SNMP( >Optional >) >
Monitoring Software	Multi-functional management, utility power and battery status; Utility Power Failed; BAT Low, Remote Shutdown and other menus

Size mm( >W >× >D >× >H >)	85×323×155	95×323×155	95×323×155	110×351×181	110×351×181
Net Weight Kg	6	7.5	8.5	10.5	13.2

SHIDA (SUPSTECH), founded in 1997 as a subsidiary corporation of START COMPUTER GROUP, is based in Shanghai. We are one of the leading 1st generation of uninterruptible power supply (UPS) solution providers in China. For 20 years, we have been specialized in the research, manufacture, sales and services of UPS with our production base in Shenzhen. We accumulated rich experiences and typical cases in the range of applications to banks, insurance, securities, financial industry, international airport, utility electric supply, radio and television network, metro system, maritime bureau, medical system, public services, education, and cloud data center. Also we are working with GE, Delta, Emerson, Pakistan National Banks, Vodafone, Cornell University, InfoSec, and Olympic Organizing Committee internationally. Till now we have more than 20 offices & service centers at home and abroad, is the honorable brand name both in China and overseas.

With production capacity of 150, 000 units and 20 years of experiences in UPS industry, SUPSTECH ensures you with proven technique, high reliable quality, cost-effective and outstanding service.
