Supstech Small All in One Charger/Inverter for Soho

Name: Supstech Small All in One Charger/Inverter for Soho
Brand: all-electronics-online.com
SKU: 809678735
Availability: InStock
Rating: 4.7 (113 reviews)

Price:	US $ 120-500/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	SUN-F
Design Structure:	Hf Design
Display:	LCD+LED Indicators
Efficiency:	>80%

Product Description

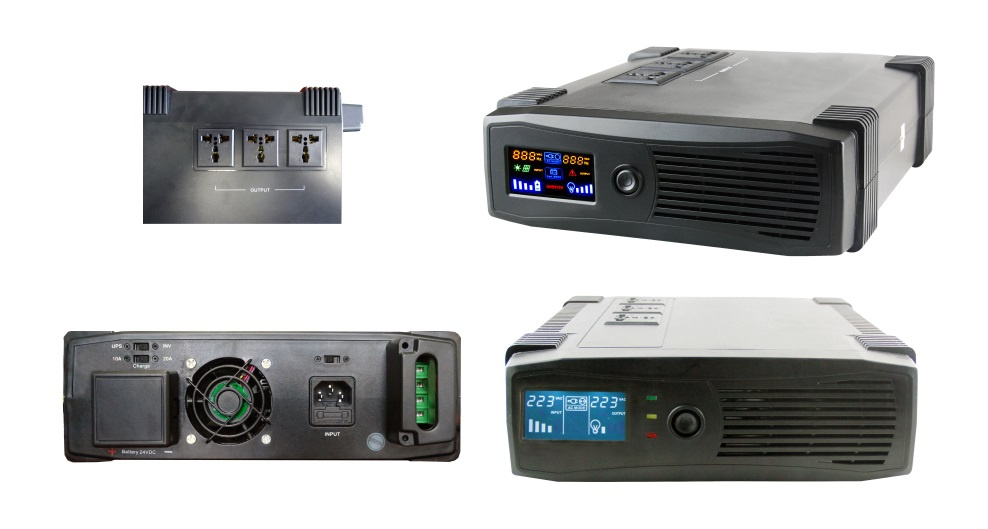

SUN-F Series Small All-in-one Charger/Inverter

SUN-F Series is designated for SOHO, home appliance, NT Stations and other network applications. This smart devices can work as all-in-one charger/inverter to provide the best power solution with high reliability and availability.

High Performance Index

MCU Controlled HF Full Digitized Design; Solar Hybrid

Selectable Input Voltage Range 110/120Vac or 220/230/240 Vac;

RT Design ;

Modified Sine Wave ;

High Efficiency rate of DC-AC Conversion to minimize energy losts ;

Intelligent charge control. Equipped with Super Charger, maximum 8-20A to charge large capacity Batteries like 100Ah.

Offline-Charging function ;

High Overload Protection Ability ;

Auto-Recovery when AC is recovered. ;

Multi LCD Display with LED indicators

Application Type

Design for workstations, SOHO, NT Stations, home appliances, and other small internet working devices.

Model	Sun-F 1200	Sun-F 2400
Power	720W	1440W
Host Machine Specification
Design Structure	HF Design
External Structure	RT Structure
Overall Efficiency	> 95%
Noise(In 2 Meters)	< 50dB
Working Temp.	0-40ºC
Storage Temp.	-25 ~ 60ºC(Without BATs)
Humidity	< 95% Non-condensing
Safety Standard	CB7260.2/EN50091-2 Class A
Protection	Overload , Short -Circuit , Over Temp., Over/ Low Voltage, BAT Voltage High/Low.
Display	LCD+LED Indicators :AC Mode Green Light ;BAT Mode Yellow Light
Input Specification
Nominal Voltage	110/120Vac or 220/230/240 Vac
Input Voltage Range	160-290 or 90-280Vac (Wide Range)
Output Specification
Output Voltage	20/230Vac (BAT Mode)
Output Frequency	50±0.1Hz
Output Waveform	Modified Sine Wave (BAT Mode)
Efficiency (DC to Ac)	>80%
Battery Parameters
Battery Voltage	Sealed Lead-Acid, Maintenance Free
Nominal Voltage	12Vdc	24Vdc
Charging Current	10-20A(Selectable)
Solar Charge
Solar Charge Input	9-40Vdc
Solar Charge Current	30-50A (Adjustable)
Physical Parameters
Size mm(DxWxH)	288x272x90
Net Weight Kg	2.8	3
