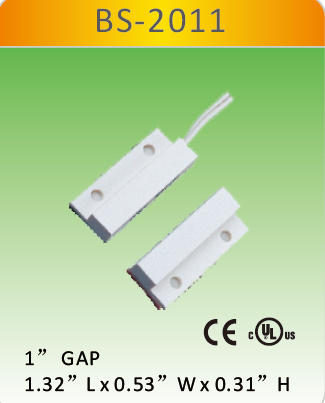

Surface Mounted Magnetic Contact Switch Bs-2011

Name: Surface Mounted Magnetic Contact Switch Bs-2011
Brand: all-electronics-online.com
SKU: 687434792
Availability: InStock
Rating: 4.5 (76 reviews)

Price:	US $ 0.63-0.80/Piece
Trade Terms:	FOB,EXW,others
Min Order:	1000/Piece
Pay Type:	T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	BS-2011, BS-2011WG, BS-2011A, BS-2011C
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe

Product Description

BS-2011 series

* Mini Stick-on contact with flange
* Side leads with #22AWG 18" length
* Adhesive and screw mount included
* Special leads on request
* Switches or magnets available seperately
* Resistor, Diode and Supervisory Loop available on request
* Colors: White, Brown, Grey
* Without Flange (BS-2051)

Part Number	Loop Type	Reed Form	Closed Gap[Inch(mm)]	Departure Gap[Inch(mm)]	Maximum Initial Contact Resistance(Ohm)	Maximum Contact Rating(W)	Maximum Switching Voltage (VDC/VAC)	Maximum Switching Current(A)
BS-2011	Closed	N/O	1(25)	1.06(27)	0.150	10	100	0.5
BS-2011MN2550	Closed	N/O	1(25)	1.1(28)	0.150	10	100	0.5
BS-2011WG	Closed	N/O	1 1/4 (31)		0.150	10	100	0.5
BS-2011A	Open	N/C	1(24)		0.150	3	30	0.2
BS-2011C	Closed&Open	SPDT	1(24)		0.150	3	30	0.2

Ningbo Sentek Electronics Co., Ltd., is a professional manufacturer in fire and security products, such as smoke detector, gas detector, magnetic contacts and so on.

Most of magnetic contacts are UL list, UL, EN approval for smoke detector and heat detector.

We are still like to be your OEM/ODM manufacturer in fire and security products, including reed sensors.

Warmly welcome customers for all over the world to talk and do business with us.
