Name: Surveillance Cameras Micro 12V Electric DC Motor
Brand: all-electronics-online.com
SKU: 822132415
Availability: InStock
Rating: 4.7 (28 reviews)

Price:	US $ 2.996-3.867/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	MR-12SSN30
Usage:	Surveillance Cameras
Application:	Lock
Operating Speed:	Low Speed
Structure And Working Principle:	Brush
Certification:	Ce,RoHS
Brand:	Mipre

Product Description

Specification

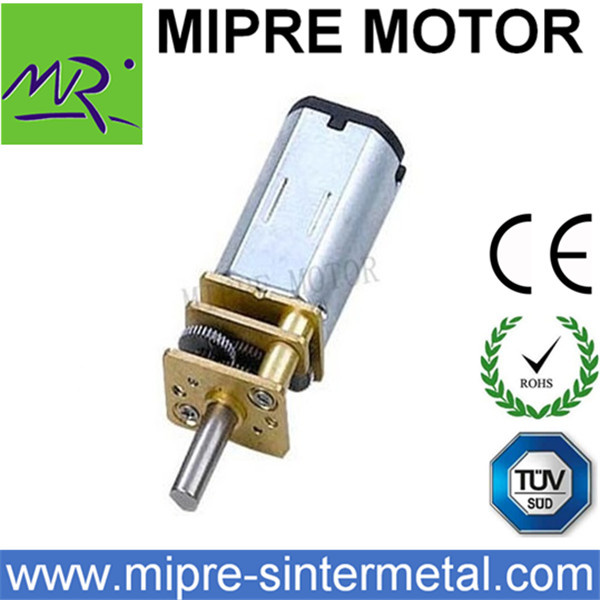

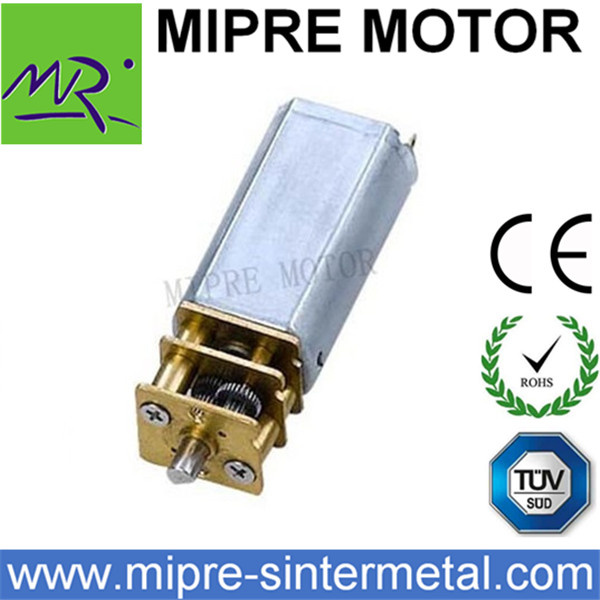

Dia 12mm DC Geared Motor

Model No.: MR-12SSN30

1. Typical Applications:

Coffee Machine Cordless Drill

Robot Electric Lock

Video/Camera

Weight: 15g(approx.)

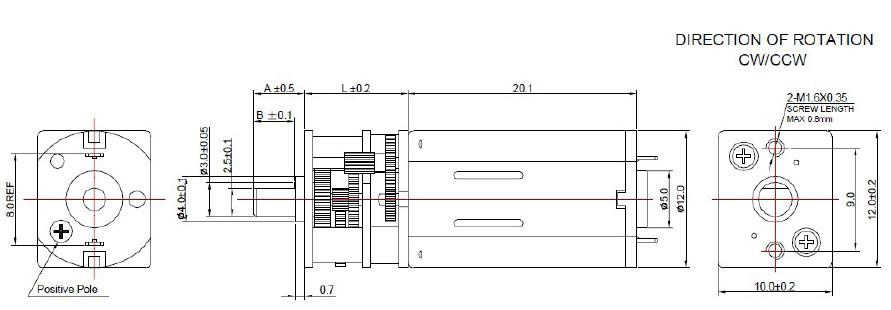

2. Dimensions(mm)

Customization:

-Length A, B

-Technical Data

-Shaft Shape

Gearbox length L(mm)

General reduction ratios

9.1

1/10

1/20

1/30

1/50

1/63

1/70

1/100

1/110

1/150

1/210

1/298

1/380

12.1

1/1000

3. Technical data

Model No.

Voltage

No load

On load

Operating range(V)

Nominal

Current

Speed

Current

Torque

Speed

r/min

kgf.cm

r/min

MR-12SSN30-02.5100

2.0-3.0

2.5

0.04

100

0.14

0.054

MR-12SSN30-1270

6.0-12.0

0.02

0.07

0.43

MR-12SSN30-1250

6.0-12.0

0.02

0.07

0.6

MR-12SSN30-0848

6.0-8.0

8.0

0.04

0.21

1.5

Remarks

Customized electric performance on request by using suitable dc motor windings and ratio.
Available with required shaft length, D-shape size and length, grease type etc.

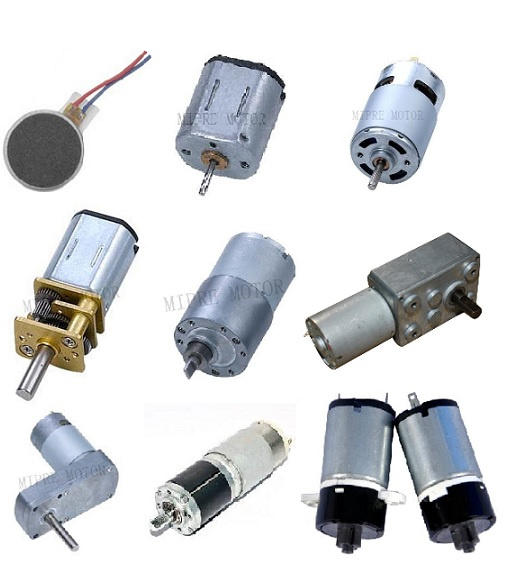

Related motors

Our company:

FAQ

Q: How to order?
A: send us inquiry → receive our quotation → negotiate details → confirm the sample → sign contract/deposit → mass production → cargo ready → balance/delivery → further cooperation.
Q: How about Sample order?
A: Sample is available for you. please contact us for details.
Q: Which shipping way is avaliable?
A: DHL, UPS, FedEx, TNT, EMS, China Post,Sea are available.The other shipping ways are also available, please contact us if you need ship by the other shipping way.
Q: How long is the deliver?
A: Devliver time depends on the quantity you order. usually it takes 15-25 working days.
Q: My package has missing products. What can I do?
A: Please contact our support team and we will confirm your order with the package contents.We apologize for any inconveniences.
Q: How to confirm the payment?
A: We accept payment by T/T, PayPal, the other payment ways also could be accepted,Please contact us before you pay by the other payment ways. Also 30-50% deposit is available, the balance money should be paid before shipping.

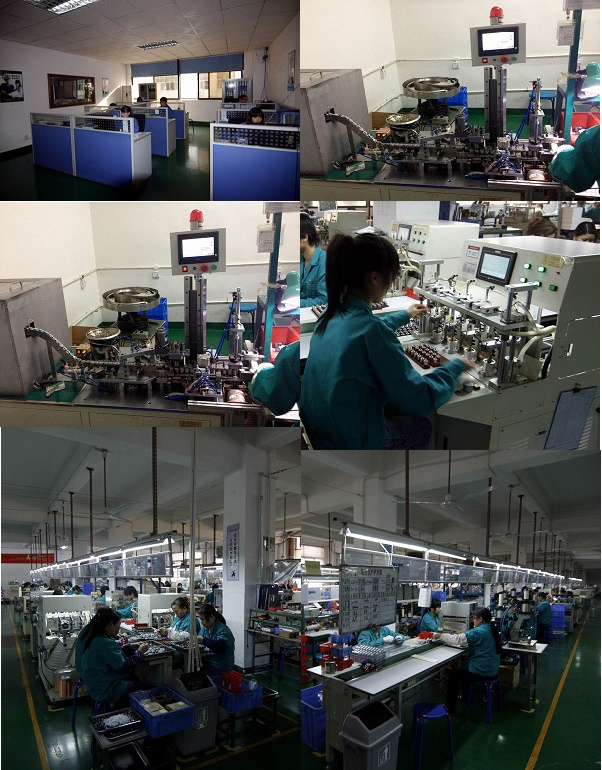

Management Prospectus
