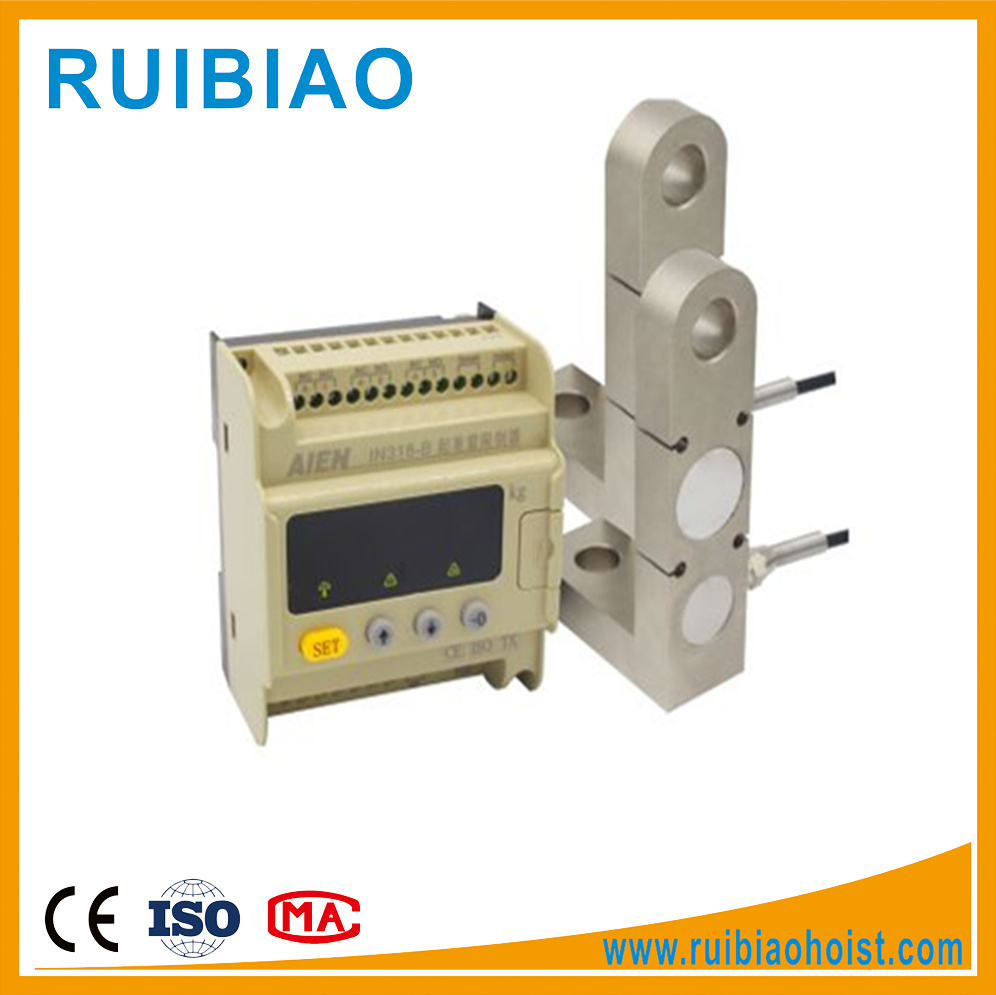

Suspended Platform Over Load Limiter

Name: Suspended Platform Over Load Limiter
Brand: all-electronics-online.com
SKU: 815294215
Availability: InStock
Rating: 4.5 (109 reviews)

Price:	US $ 110/Piece
Min Order:	5/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	limiter
Rated Power:	5W
Rated Load:	1-6t
Display Mode:	4-Digit Nixie Tube Display
Sensor Overload Capacity:	150%
Working Voltage:	AC180-260V
Sensor Working Voltage:	DC5-12V
Working Temperature:	-20-60 Degree
Sensitivityof The Sensor:	1.0000mv/V
Operating Humidity:	95%
Sensorprotection Level:	IP65

Product Description

Product introduction:
This overloading alerter constitutes a resistance strain weighing sensor and an intelligent control instrument. As a safeguarding appliance for the Construction lifter,it is designed to provide sound, light and electric alarm during loading operation of the elevator. Meanwhile, it saves the operation data so that the operation situation of the elevator can be traced and analyzed in case of accident. Our company concentrates on the development, production and sales of load lifting limiter, and we are striving to become the model of this industry.

1 Control channel:Single channel is only for the measurement and relay control of one-way equipment.
2 Measurement accuracy: high accuracy ADC, the measurement accuracy of the controller is over 1%, and is better than traditional analog signal instrument.
3 System error:≤1%F.S
4 Display: four-digit nixie tube: 00.00-99.99
and English characters display, also works as weighing instrument.
5 Weight display: display actual lifted weight; the industrial resolution radio is 1kg; weighing instrument of other industry is applicable.
6 Cut off or switch on circuit by normally-closed contact (normally open optional) of single-channel relay; external buzzer can be connected (optional).
7 Key:four keys:set ↑ ↓ → 0.
8 Calibration:No-load zero, 5% ~ 100%F.S range of any calibration. Calibration parameters are stored into the microcontroller block high reliable EEPROM. Recommended weight of the weights is 50 ~ 100% of the rated weight. The heavier the weights, the higher the precision. At least not less than 10% of the rated weight to ensure accurate alarm point.
