Suspension Composite Insulator for High Voltage Overhead Transmission Line

Name: Suspension Composite Insulator for High Voltage Overhead Transmission Line
Brand: all-electronics-online.com
SKU: 825419255
Availability: InStock
Rating: 4.7 (114 reviews)

Price:	Negotiable/Piece
Min Order:	1000/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	25-70
Application:	High-voltage
Material:	Composite Polymer
Structure:	Suspension Insulator
Type:	B Type Insulator
Color:	Grey
Brand:	Haivol

Product Description

Specifications

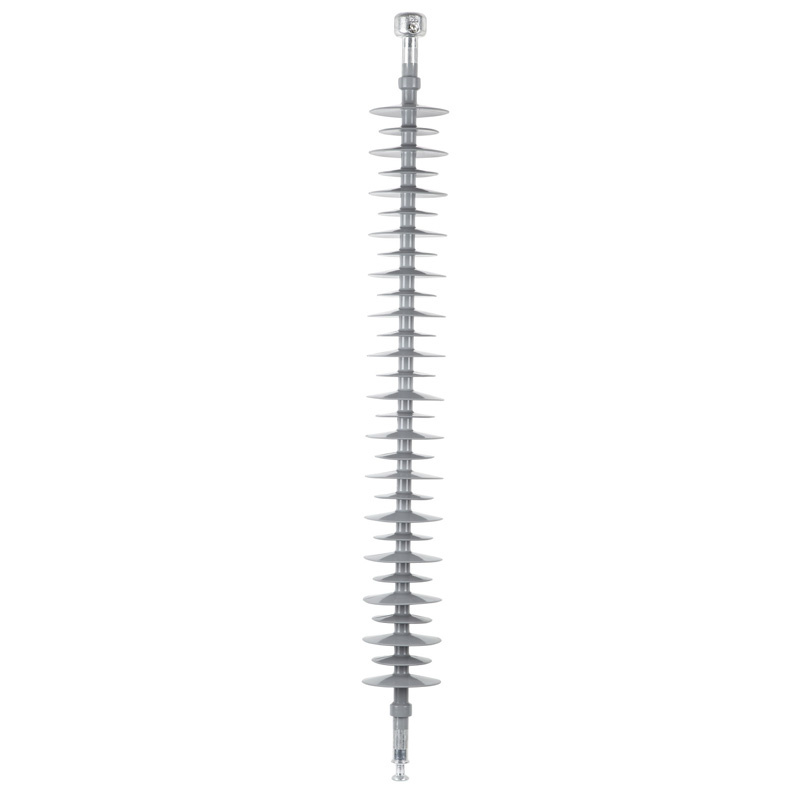

Long Rod Suspension Composite Insulators
1.Certificates:ISO9001:2008
2.Reasonable price
3.Rich experience in export
l

Composite insulators for high voltage overhead power transmission line application

For rated voltage up to 550 kV power transmission lines supporting, suspending and insulation.

Ratings: Up to 500kV.

Standards: IEC 61109

Composite Insulator for AC Power Distribution System

Features: Secure and reliable operation on high mechanical strength. Compact design and light in weight which is convenient for transportation. Good anti-vibration capability. Good anti-moisture capability. Good electric performances Strong anti-pollution falshover ability. High anti-aging performances which is perfect for utilization under conditions of high altitude. Easy for maintenance.

Product range:

Long rod Composite insulators up to 500kV.

Pin Composite insulator up to 36kV.

Post Composite insulator up to 252kV.

Line post Composite insulator up to 36kV.

Note:

1 Applicable stardand:IEC,ANSI,GB and other international standard

2 Normal colour of the composite insulator:red,gray and white.

3 Special design according customer's requirement.

For detail, please refer to the catalogue.

Type	Rated voltage(kV)	Specified mechanical load(kN)	Section length(mm)	Min Arc distance(mm)	Leakage distance(mm)	Lightning impulse withstand BIL(kV)	Power frequency withstand (wet) (kV)
FPBW4-66/70	66	70	900	710	1980	410	185
FPBW4-66/100	66	100	940	710	1980	410	185
FPBW4-110/100	110	100	1240	1000	3315	550	230
FPBW4-145/120	145	120	1480	1240	4123	725	355
FPBW4-220/100	220	100	2240	1900	6300	1000	395
FPBW4-220/160	220	160	2240	1900	6300	1000	395
FPBW4-330/100	330	100	2990	2600	9075	1425	570
FPBW4-330/160	330	160	2990	2600	9075	1425	570
FPBW4-500/160	500	160	4080	3730	12750	2250	740

Haivo Electrical Co., Ltd, is a provider of power equipment and services for the global electric utility industry. It mainly manufacture power transmission & distribution equipments, covering many product series as Fuse cutout, Surge arrester, Composite & Porcelain insulator, Disconnector switch & Load Break Switch, Hardware fitting for overhead line, Cable accessories and Cable kits (cold & heat shrinkable cable accessories).

HAIVO ELECTRICAL, As one of the international electrical companies in China, We not only manufacture the power equipment, but also provide sustainable power solutions underpinned by technology innovation. To date, HAIVO conducts business in nearly 50 countries and territories in South America, Europe, Latin America, Asia, Africa, and the Middle East. HAIVO′ S high standards have received due recognition from the local power customers.

HAIVO′ S worldwide operation and sales coverage is backed by exceptional experience and expertise to provide customers with the most reliable and highest quality products and services available.

For the quality control system, HAIVO was successively awarded ISO 9001: 2008 by DAS CERTIFICATION Ltd & UKAS QUALITY MANAGEMENT, and TYPE TEST REPORT by China NATIONAL HIGH VOLTAGE APPARATUS QUALITY SUPERVISION TESTING CENTER(XIHARI) & QUALITY INSPECITION AND TEST CENTER FOR EQUIPMENT OF ELECTRIC POWER.

We promise we will offer first-class quality, reasonable price, first-class service and following the business philosophy of development and innovation to serve global power customers!
