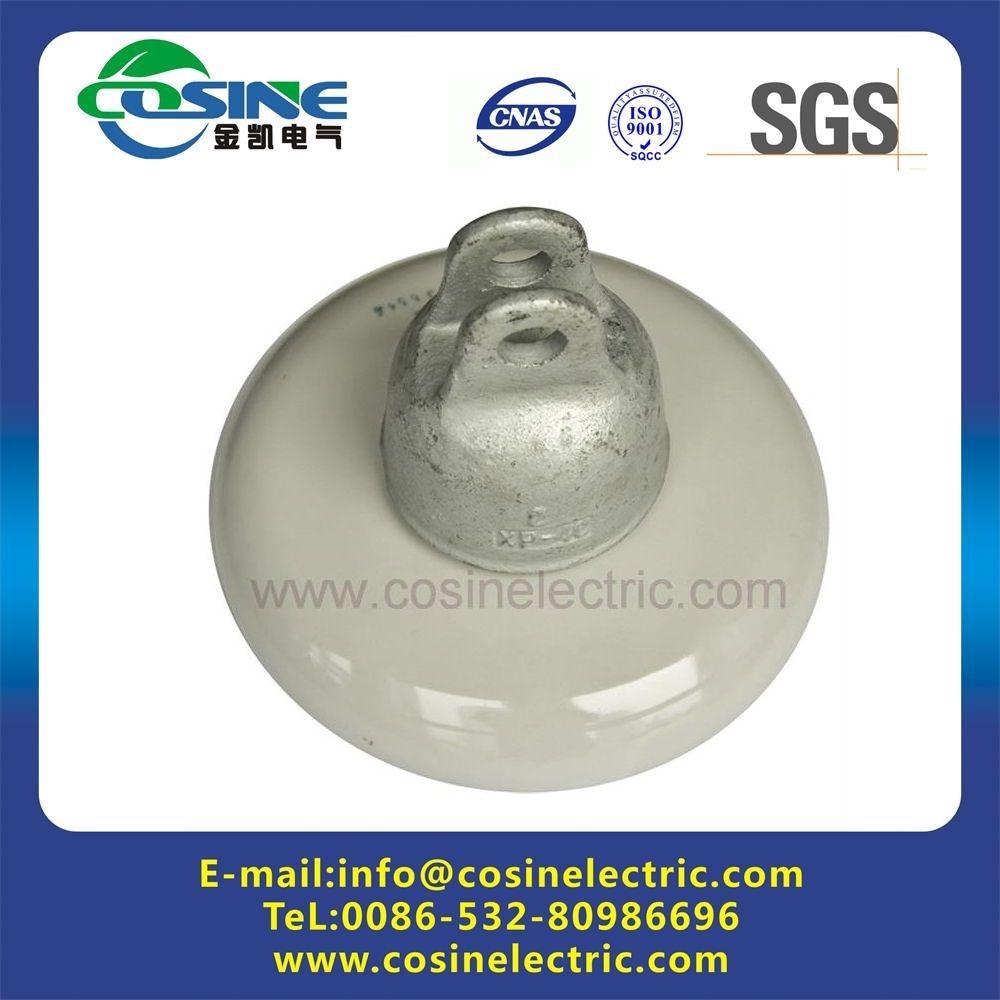

Suspension Insulator (ANSI 52-1) Approved

Name: Suspension Insulator (ANSI 52-1) Approved
Brand: all-electronics-online.com
SKU: 683477692
Availability: InStock
Rating: 4.7 (24 reviews)

Price:	US $ 5/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1000/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	ANSI 52-1
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
ANSI:	52-1
Application:	High-voltage
Material:	Porcelain
Structure:	Suspension Insulator
Type:	ANSI 52-1 Suspension Insulator
Connection Method:	Clevis and Tongue
Color:	Grey
Brand:	OEM

Product Description

Name: Suspension Insulators
Type: ANSI Clevis Type
Specification: ANSI52-1
Colours: Brown or light gray
Package: Fumigated wooden-case

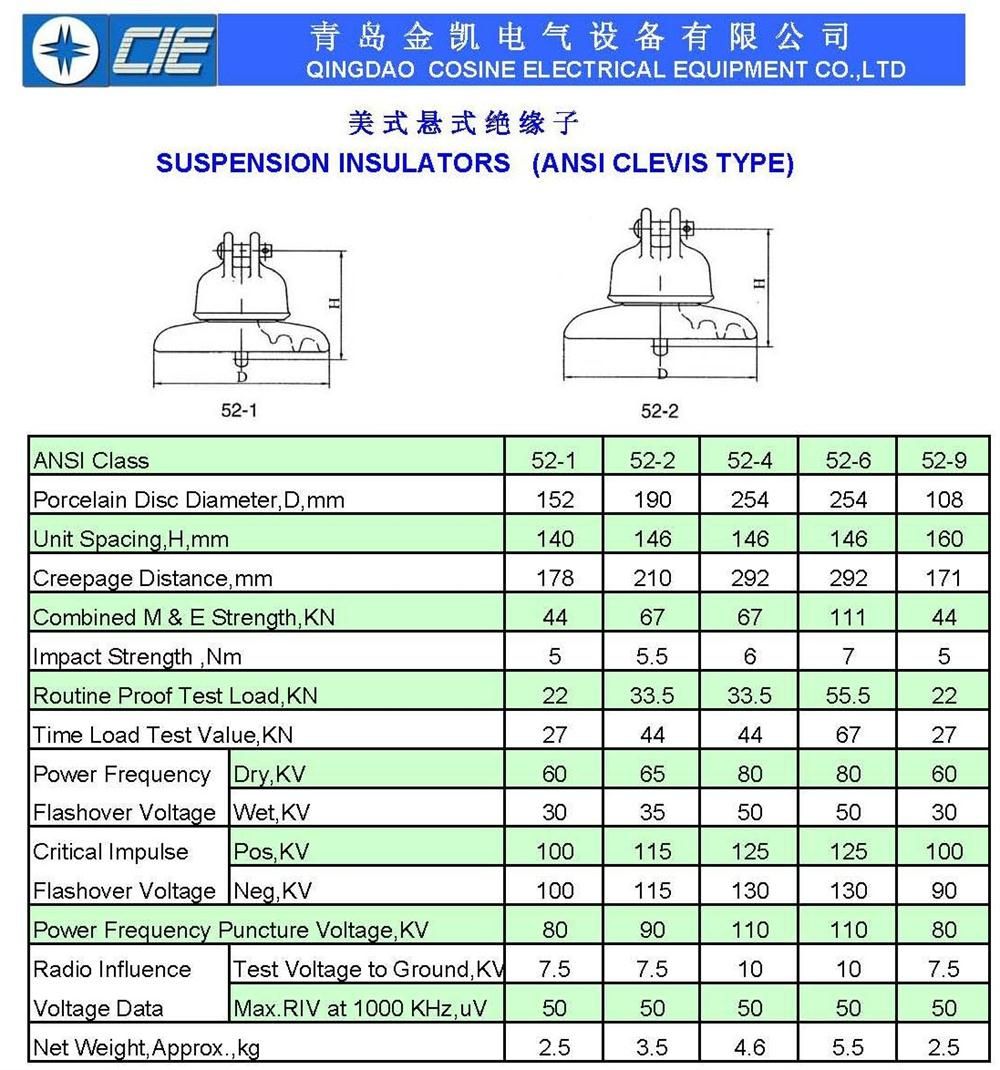

ANSI Class			52-1
Porcelain Disc Diameter,D,mm			152
Unit Spacing,H,mm			140
Creepage Distance,mm			178
Combined M & E Strength,KN			44
Impact Strength ,Nm			5
Routine Proof Test Load,KN			22
Time Load Test Value,KN			27
Power Frequency Flashover Voltage	Dry,KV		60
	Wet,KV		30
Critical Impulse Flashover Voltage	Pos,KV		100
	Neg,KV		100
Power Frequency Puncture Voltage,KV			80
Radio Influence Voltage Data		Test Voltage to Ground,KV	7.5
		Max.RIV at 1000 KHz,uV	50
Net Weight,Approx.,kg			2.5

Experience: 16 years producing experience from 1999-2015 for insulator and line hardware

Product: Composite insulator, glass insulator and ceramic insulator

SML: From 40KN to 550KN From AC insulator to DC insulator.

Package: Exported free-fumigation

Quality control: Can do all the test according to IEC

Quality control System: Exactly according to ISO9001: 2000

Exporting Market: USA, Argentina, Mexico, Italy, South Africa, Turkey, Vietnam, France, Chile, etc.

Engineer term: Have 12 engineers to reply all your questions and offer professional service.

Sale term: All the sale man have been trained every month. And offer best service.
