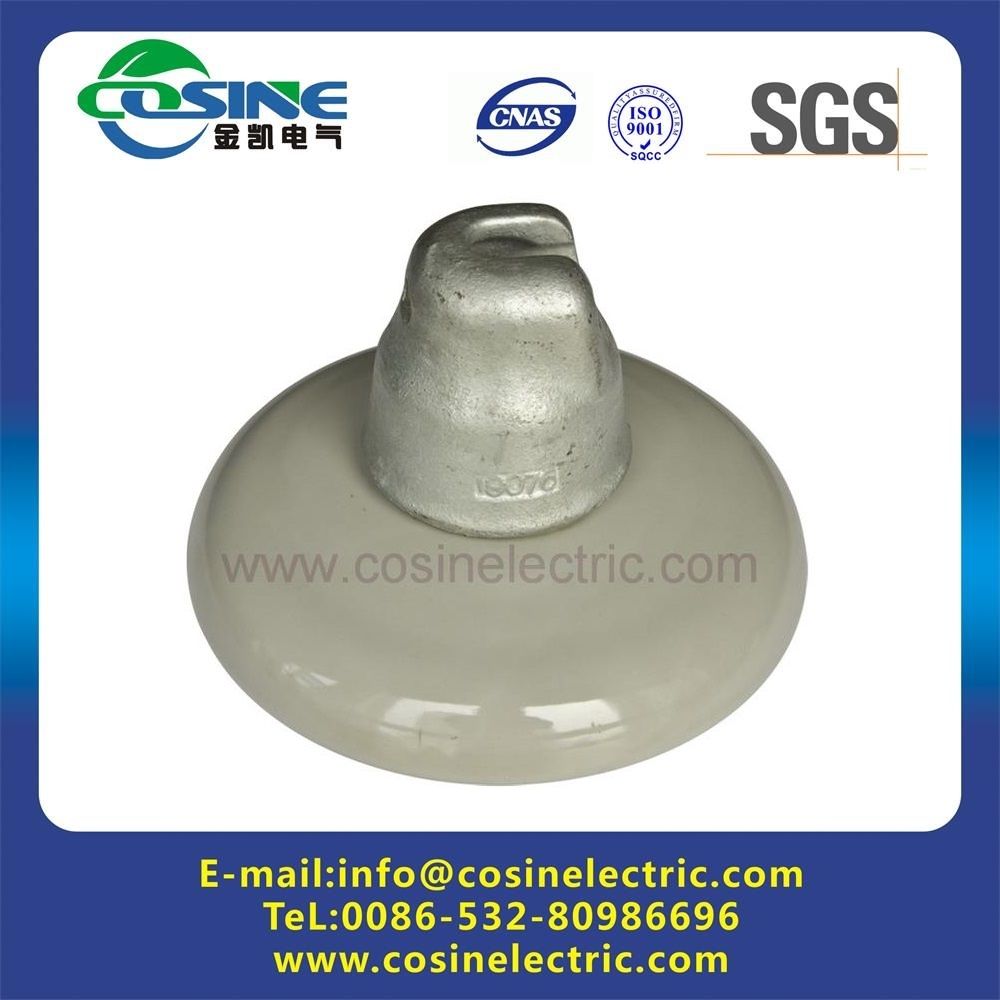

Suspension Porcelain Insulator (ball&socket type)

Name: Suspension Porcelain Insulator (ball&socket type)
Brand: all-electronics-online.com
SKU: 694815012
Availability: InStock
Rating: 4.4 (110 reviews)

Price:	US $ 3.2/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	500/Piece
Pay Type:	L/C,T/T,D/P

Contact Supplier

Showroom Product Company Profile

Prod Model:	U70BS-U160BS
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size:	U70bs-U160bs
Application:	High-voltage
Material:	Porcelain
Structure:	Suspension Insulator
Size Of Bearing Capacity:	70kn-160kn
Color:	Brown or Light Gray

Product Description

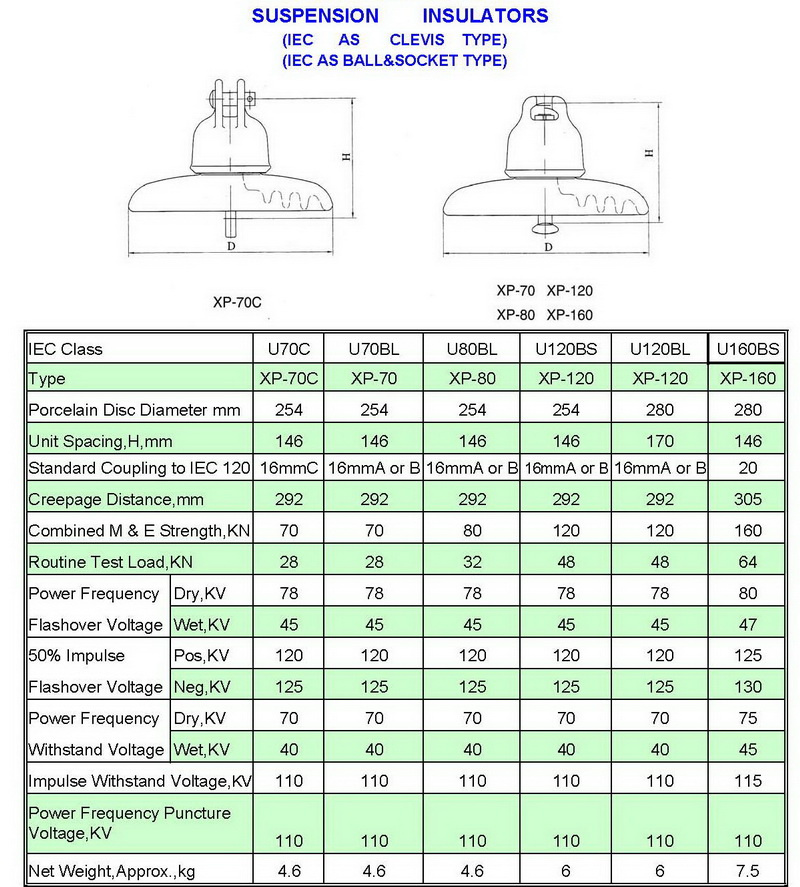

1. Item: Suspension Insulator(IEC as Clevis type/ball&socket type)
2. Standard: Comply with the IEC and AS standards, IEC Pub. 383, AS2947
3. Colour: The glaze colour of insulators are brown or light gray
4. The specified suspension insulators differing in diameter, unit spacing and creepage distance can be provided. In addition, these insulators can be provided with zinc sleeve pins.

IEC Class		U70C	U70BL	U80BL	U120BS	U120BL	U160BS
Type		XP-70C	XP-70	XP-80	XP-120	XP-120	XP-160
Porcelain Disc Diameter mm		254	254	254	254	280	280
Unit Spacing,H,mm		146	146	146	146	170	146
Standard Coupling to IEC120		16mmC	16mmA or B	16mmA or B	16mmA or B	16mmA or B	20
Creepage Distance,mm		292	292	292	292	292	305
Combined M&E Strength,KN		70	70	80	120	120	160
Routine Test Load,KN		28	28	32	48	48	64
Power Frequency Flashover Voltage	Dry,KV	78	78	78	78	78	80
Power Frequency Flashover Voltage	Wet,KV	45	45	45	45	45	47
50% Impulse Flashover Voltage	Pos.,KV	120	120	120	120	120	125
50% Impulse Flashover Voltage	Neg.,KV	125	125	125	125	125	130
Power Frequency Withstand Voltage	Dry,KV	70	70	70	70	70	75
Power Frequency Withstand Voltage	Wet,KV	40	40	40	40	40	45
Impulse Withstand Voltage,KV		110	110	110	110	110	115
Power Frequency Puncture Voltage,KV		110	110	110	110	110	110
Net Weight,Approx.,kg		4.6	4.6	4.6	6	6	7.5

Experience: 16 years producing experience from 1999-2015 for insulator and line hardware

Product: Composite insulator, glass insulator and ceramic insulator

SML: From 40KN to 550KN From AC insulator to DC insulator.

Package: Exported free-fumigation

Quality control: Can do all the test according to IEC

Quality control System: Exactly according to ISO9001: 2000

Exporting Market: USA, Argentina, Mexico, Italy, South Africa, Turkey, Vietnam, France, Chile, etc.

Engineer term: Have 12 engineers to reply all your questions and offer professional service.

Sale term: All the sale man have been trained every month. And offer best service.
