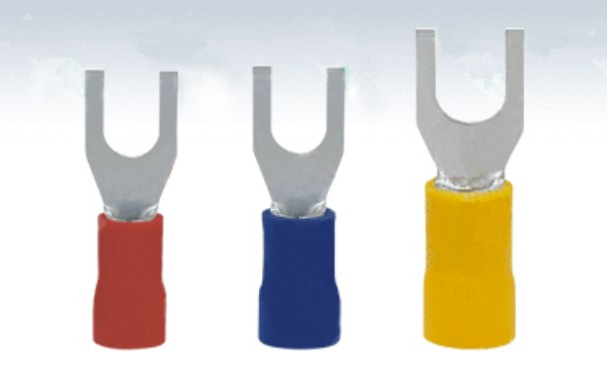

Sv Fork Pre Insulated Terminals

Name: Sv Fork Pre Insulated Terminals
Brand: all-electronics-online.com
SKU: 830583095
Availability: InStock
Rating: 4.8 (57 reviews)

Price:	US $ 0.01/Piece
Min Order:	1000/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	FSV
Type:	Socket Terminals
Material:	Copper
Application:	Transmission of Electrical Signals
Brand:	Ry

Product Description

1. Application: wire connection.

2. Material: pure copper;

3. Shape: eyelet lug;

4. Attribute: high conductivity,heavy current;

Diagrammatic Drawing And Data Sheet Of sv fork pre insulated terminals :

lead section:0.5~1.5mm2(A.W.G:22~16) Imax=19A material:pure copper thickness:0.75mm
Item NO	USA BOLT NO	BOLT dia.d2(mm)	dimension(mm)					color
Item NO	USA BOLT NO	BOLT dia.d2(mm)	B	L	F	H	Dφ	color
SV 1.25-3	#4	3.2	5.7	21.2	6.5	10	4.3	red
SVS 1.25-3.5	#6	3.7	5.7	21.2	6.5
SVL 1.25-3.5	#6	3.7	6.4	21.2	6.5
SVS 1.25-4	#8	4.3	6.4	21.2	6.5
SVM 1.25-4	#8	4.3	7.2	21.2	6.5
SVL 1.25-4	#8	4.3	8.1	21.2	6.5
SVS 1.25-5	#10	5.3	8.1	21.2	6.5
SVL 1.25-5	#10	5.3	9.5	21.2	6.5
SVS 1.25-6	1/4	6.4	9.5	21.2	6.5
SVL 1.25-6	1/4	6.4	12	27.2	11
lead section:1.5~2.5mm2(A.W.G:16~14) Imax=27A material:pure copper thickness:0.8mm
Item NO	USA BOLT NO	BOLT dia.d2(mm)	dimension(mm)					color
Item NO	USA BOLT NO	BOLT dia.d2(mm)	B	L	F	H	Dφ	color
SV 2-3	#4	3.2	5.7	21.2	6.5	10	4.9	blue
SVS 2-3.5	#6	3.7	5.7	21.2	6.5
SVL 2-3.5	#6	3.7	6	21.2	6.5
SVS 2-4	#8	4.3	6.4	21.2	6.5
SVM 2-4	#8	4.3	7.2	21.2	6.5
SVL 2-4	#8	4.3	8.1	21.2	6.5
SVS 2-5	#10	5.3	8.1	21.2	6.5
SVL 2-5	#10	5.3	9.5	21.2	6.5
SVS 2-6	1/4	6.4	9.5	21.2	6.5
SVL 2-6	1/4	6.4	12	27.2	11
lead section:2.5~4mm2(A.W.G:14~12) Imax=37A material:pure copper thickness:1.0mm
Item NO	USA BOLT NO	BOLT dia.d2(mm)	dimension(mm)					color
Item NO	USA BOLT NO	BOLT dia.d2(mm)	B	L	F	H	Dφ	color
SV 3.5-3	#4	3.2	5.7	24.8	7	13	6.2	black
SV 3.5-4	#8	4.3	8	24.8	7
SV 3.5-5	#10	5.3	8	24.8	7
SV 3.5-6	1/4	6.4	12	28	12.1
SV 3.5-8	5/16	8.4	12	33.7	13.7
lead section:4~6mm2(A.W.G:12~10) Imax=48A material:pure copper thickness:1.0mm
Item NO	USA BOLT NO	BOLT dia.d2(mm)	dimension(mm)					color
Item NO	USA BOLT NO	BOLT dia.d2(mm)	B	L	F	H	Dφ	color
SV 5.5-3.5	#6	3.7	8.3	25.2	7.5	13	6.7	yellow
SVS 5.5-4	#8	4.3	8.3	25.2	7.5
SVL 5.5-4	#8	4.3	9	25.2	7.5
SV 5.5-5	#10	5.3	9	25.2	7.5
SVS 5.5-6	1/4	6.4	9	25.2	7.5
SVL 5.5-6	1/4	6.4	12	31.2	12
SV 5.5-8	5/16	8.4	14	30	11.5

Our Company Professional wire harness manufacturer for automotive, Engine, home appliance, Electronic, industrial control, medical and so on. Have built business with some top 500 global corporations, like Honda, Briggs&Stratton. Our wire can be UL/VDE/CEA/CCC/CE cerficates, all RoHS. We accept OEM/ODM design, welcome any customized too. To perfect our service, we provide the products with good quality at the reasonable price.

It's our consistent and sole goal that customers' satisfactions are always of the first importance. We sincerely welcome customers and friends from all over the world to be hand in hand with us, To develop together, and create the beautiful future together with you.

Yueqing Riyue Machine Electricity Co., Ltd. is specialized in aftermarket automotive industry. With know-how, expertise, and rich experience, we are on the way to do better and better. There are more than 8, 000 different wire harness available in our company, including manycustomized ones. Our task is to offer qualified products and good services to all customers. Riyue would greatly appreciate the chance to convince you of our quality, ability and potential.
