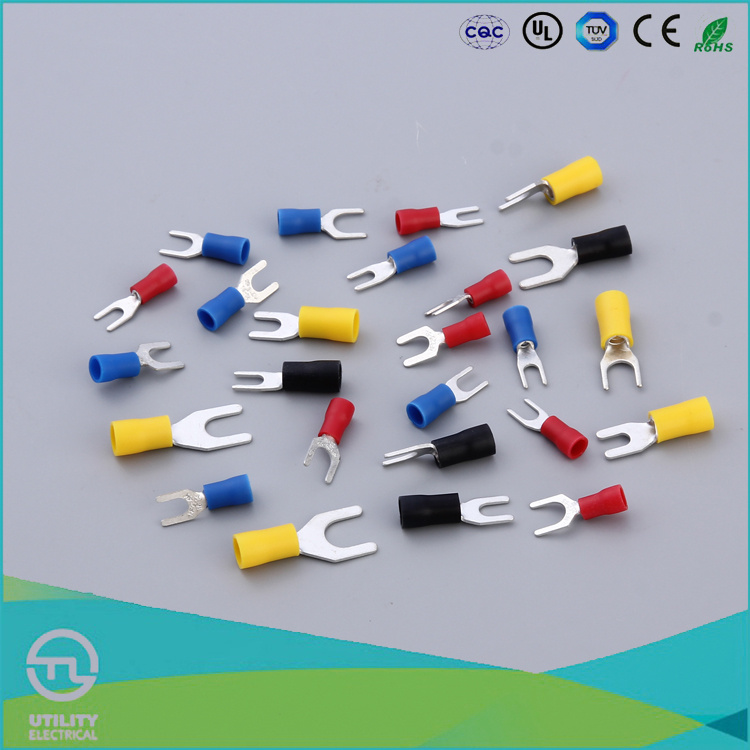

Sv Series Insulated Butt Copper Wire End Terminal

Name: Sv Series Insulated Butt Copper Wire End Terminal
Brand: all-electronics-online.com
SKU: 720918452
Availability: InStock
Rating: 4.6 (57 reviews)

Price:	US $ 0.01-1/Piece
Min Order:	1000/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	SV Terminal Lugs
Body Color:	Red or Blue
Current:	19A
Model:	Sv Series
Terminal Material:	Copper
Material:	Copper
Application:	Transmission of Electrical Signals
Type:	Lug
Species:	Lug
Shape:	Y Type Header
Certification:	Ce
Brand:	Utl

Product Description

UTL Hight Demand Products SV Series Insulated Butt Copper Wire End Terminal

Model No.	SV type
Item name	Cable lugs
Material	Terminal : Copper
Size	OEM
CLBLE SQ	--
Name Tab(mm)	Check the terminal chart
Type	OEM terminal various wire range
Max current	19A
Color	Red Blue Yellow or OEM colo
Payment term	A.Below US$300,western,paypal accepted B.Above US$300,bank account
Certificate	TUV/CE/UL/RoHS/SGS/CQC approved standard

ITEM NO.	USA Screw	d2	dimension(mm)					color	illustration
ITEM NO.	USA Screw	d2	B	L	F	H	dΦ	color	illustration
SV 1.25-3	#4	3.2	5.7	21.2	6.5	10.0	4.3	red	red copper conductor cross-section 0.5-1.5mm2 Imax=19A thinness:0.7mm
SV 1.25-3.5S	#6	3.7	5.7	21.2	6.5
SV 1.25-3.5L	#6	3.7	6.4	21.2	6.5
SV 1.25-4S	#8	4.3	6.4	21.2	6.5
SV 1.25-4M	#8	4.3	7.2	21.2	6.5
SV 1.25-4L	#8	4.3	8.1	21.2	6.5
SV 1.25-5S	#10	5.3	8.1	21.2	6.5
SV 1.25-5L	#10	5.3	9.5	21.2	6.5
SV 1.25-6S	1/4	6.5	9.5	21.2	6.5
SV 1.25-6L	1/4	6.5	12.0	27.2	11.0
SV 1.25-8	5/16	8.5	14.0	29.0	12.5
SV 2-3	#4	3.2	5.7	21.2	6.5	10.0	4.9	blue	red copper conductor cross-section 1.5-2.5mm2 Imax=27A thinness:0.8mm
SV 2-3.5S	#6	3.7	5.7	21.2	6.5
SV 2-3.5L	#6	3.7	6.4	21.2	6.5
SV 2-4S	#8	4.3	6.4	21.2	6.5
SV 2-4M	#8	4.3	7.2	21.2	6.5
SV 2-4L	#8	4.3	8.1	21.2	6.5
SV 2-5S	#10	5.3	8.1	21.2	6.5
SV 2-5L	#10	5.3	9.5	21.2	6.5
SV 2-6S	1/4	6.5	9.5	21.2	6.5
SV 2-6L	1/4	6.5	12.0	27.2	11.0
SV 2-8	5/16	8.5	14.0	29.0	12.5
SV 3.5-3.5	#4	3.7	5.7	24.8	7.0	12.5	6.2	black	red copper conductor cross-section 2.5-4mm2 Imax=37A thinness:1.0mm
SV 3.5-4	#8	4.3	8.0	24.8	7.0
SV 3.5-5S	#10	5.3	8.0	24.8	7.0
SV 3.5-6	1/4	6.5	12.0	28.0	12.1
SV 3.5-6S	1/4	6.5	9.0	25.2	7.5
SV 5.5-3.5	#6	3.7	8.3	25.2	7.5	12.5	6.7	yellow	red copper conductor cross-section 4-6mm2 Imax=48A thinness:1.0mm
SV 5.5-4S	#8	4.3	8.3	25.2	7.5
SV 5.5-4L	#8	4.3	9.0	25.2	7.5
SV 5.5-5	#10	5.3	9.0	25.2	7.5
SV 5.5-6S	1/4	6.5	9.0	25.2	7.5
SV 5.5-6L	1/4	6.5	12.0	31.2	12.0
SV 5.5-8	5/16	8.5	14.0	30.0	11.5

UTILITY electrical Co., Ltd. Was established in 1990, which is specialized in

The production of the terminal industry, distributors, is that the industry is

Strong in technology, growing rapidly, very large-scale enterprises. Since its

Establishment, the community's concern and support, through the joint

Efforts of all my colleagues, more than a decade UTILITY made remarkable

Achievements, from sales to the corporate image have been recognized by

Customers and industry peers and achieved gratifying brand.

The company has consistently adhered to the "people-oriented, market-

Oriented" business philosophy, product standards, UTILITY painstaking

Research of the IEC, UL, CSA, GB, CE, CCC and other international and

Domestic standards for terminals, and in accordance with these

Standards preparing their own more stringent corporate standards, from

The development, mold design, raw material procurement, production,

Plastic parts molding products, metal parts, to finished product assembly

And quality testing, packaging, shipping, etc.

The company produced dozens of series, thousands of specifications of

Products for our customers to provide a rich selection of product protection.

The company passed the ISO9001 quality management system certification,

The vast majority of products through the UL, CSA, CCC, CCS, CE

Certification, some products through the VDE certification, all products

Comply with RO environmental requirements.
