| Prod Model: |
SV |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Coating: |
Tin |
| Wire Range: |
0.5-1.5, 1.5-2.5, 2.5-6.0 |
| Copper Purity: |
> 99.9% |
| Insulating Material: |
PVC, PA, PC |
| PCS/Bag: |
100 PCS/Bag or Customized |
| MOQ: |
3000PCS |
| Color: |
Red, Blue, Black, Yellow |
| Product Name: |
Sv Type Copper Connecting Tube Terminals |
| Material: |
Copper |
| Application: |
Transmission of Electrical Signals |
| Type: |
Sv Type |
| Shape: |
Sv Type |
| Certification: |
Iaf, ISO9001, UL |
| Brand: |
Jiong |
Product Description
Products Descriptions

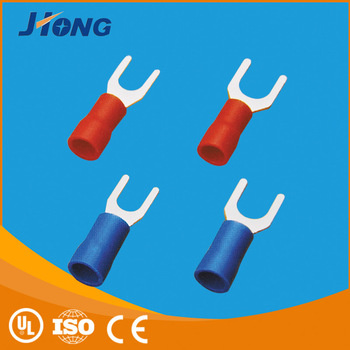

Sv Type Copper Connecting Tube Terminals
Products Features
Size of cable:0.5~1.5mm2(American standar 22-16)
Max.current=19A
Products Parameters
| 0.5~1.5mm2(22-16)Imax=19A |
| TYpe() | USA Screw() | Dimension(mm)() | Color |
| d2 | B | L | F | H | DQ |
| SV1.25-3 | #4 | 3.2 | 5.7 | 21.2 | 6.5 | 10 | 4.3 | Red |
| SVS1.25-3.5 | #6 | 3.7 | 5.7 | 21.2 | 6.5 | 10 | 4.3 | Red |
| SVL1.25-3.5 | #6 | 3.7 | 6.4 | 21.2 | 6.5 | 10 | 4.3 | Red |
| SVS1.25-4 | #8 | 4.3 | 6.4 | 21.2 | 6.5 | 10 | 4.3 | Red |
| SVM1.25-4 | #8 | 4.3 | 7.2 | 21.2 | 6.5 | 10 | 4.3 | Red |
| SVM1.25-4 | #8 | 4.3 | 8.1 | 21.2 | 6.5 | 10 | 4.3 | Red |
| SVS1.25-5 | #10 | 5.3 | 8.1 | 21.2 | 6.5 | 10 | 4.3 | Red |
| SVL1.25-5 | #10 | 5.3 | 9.5 | 21.2 | 6.5 | 10 | 4.3 | Red |
| SVS1.25-6 | #1/4 | 6.5 | 9.5 | 21.2 | 6.5 | 10 | 4.3 | Red |
| SVL1.25-6 | #1/4 | 6.5 | 12 | 21.2 | 11 | 10 | 4.3 | Red |
| 1.5~2.5m(16-14) Imax=27A |
| Type | USA Screw | Dimension(mm) | Color |
| d2 | B | L | F | H | DQ |
| SV2-3 | #4 | 3.2 | 5.7 | 21.2 | 6.5 | 10 | 4.9 | Blue |
| SVS2-3.5 | #6 | 3.7 | 5.7 | 21.2 | 6.5 | 10 | 4.9 | Blue |
| SVL2-3.5 | #6 | 3.7 | 6 | 21.2 | 6.5 | 10 | 4.9 | Blue |
| SVS2-4 | #8 | 4.3 | 6.4 | 21.2 | 6.5 | 10 | 4.9 | Blue |
| SVM2-4 | #8 | 4.3 | 7.2 | 21.2 | 6.5 | 10 | 4.9 | Blue |
| SVL2-4 | #8 | 4.3 | 8.1 | 21.2 | 6.5 | 10 | 4.9 | Blue |
| SVS2-5 | #10 | 5.3 | 8.1 | 21.2 | 6.5 | 10 | 4.9 | Blue |
| SVL2-5 | #10 | 5.3 | 9.5 | 21.2 | 6.5 | 10 | 4.9 | Blue |
| SVS2-6 | #1/4 | 6.5 | 9.5 | 21.2 | 6.5 | 10 | 4.9 | Blue |
| SVL2-6 | #1/4 | 6.5 | 12 | 27.2 | 110 | 10 | 4.9 | Blue |
| 2.5~4M(14-12)Imax=37A |
| Type | USA Screw | Dimension(mm) | Color |
| d2 | B | L | F | H | DQ |
| SV3.5-3 | #4 | 3.2 | 5.7 | 24.8 | 7 | 12.5 | 6.2 | Black |
| SV3.5-4 | #8 | 4.3 | 8 | 24.8 | 7 | 12.5 | 6.2 | Black |
| SV3.5-5 | #10 | 5.3 | 8 | 24.8 | 7 | 12.5 | 6.2 | Black |
| SV3.5-6 | #1/4 | 6.5 | 12 | 28 | 12.1 | 12.5 | 6.2 | Black |
| 4~6M(12-10) Imax=48A |
| Type | USA Screw | Dimension(mm)() | Color |
| d2 | B | L | F | H | DQ |
| SV5.5-3.5 | #6 | 3.7 | 8.3 | 25.2 | 7.5 | 12.5 | 6.7 | Yellow |
| SV5.5-4 | #8 | 4.3 | 8.3 | 25.2 | 7.5 | 12.5 | 6.7 | Yellow |
| SVL5.5-4 | #8 | 4.3 | 9 | 25.2 | 7.5 | 12.5 | 6.7 | Yellow |
| SV-5 | #10 | 5.3 | 9 | 25.2 | 7.5 | 12.5 | 6.7 | Yellow |
| SVS5.5-6 | #1/4 | 6.5 | 9 | 25.2 | 7.5 | 12.5 | 6.7 | Yellow |
| SVL5.5-6 | #1/4 | 6.5 | 12 | 31.2 | 12 | 12.5 | 6.7 | Yellow |
| SV5.5-8 | #5/16 | 8.4 | 14 | 30 | 11.5 | 12.5 | 6.7 | Yellow |
FAQ
Why Chose Us?
1.We are factory,the price are competitive.
2.Good quality,the goods are passed UL,ROHS,CE,SGS,CCS ect. They have been exported to many countries and enjoy good popularity.
3.Quickly delivery,we have automatic production line,so the production is much quicker. Keep smooth delivery on time.
4.Perfect package according your demand
5.We have design/technology team and can make new products according your demand.
Trade team of products
1.Payment:T/T,L/C,D/A,D/P ,Western Union,Paypal etc.
2.Supply Ability:20ft Container/Month
3.OEM: accept
4.Delivery: ?By Courier: 1-2 Working days by special offer
By Air: 4-7 Working days at appointed airport
By Sea:20-25 Working days at appointed port
Package of products
Common Packing:100Pcs+Polybag+Label+Export Carton
Customized Packing:Header card packing,Blister with card packing,Double Blister packing,Canister packing,other packing can be supplied according customers requirement.
Services
Excellent service and first-class after-sale service
Provide professional sale person to communicate with you before the order
Provide optimum system solution based on each client's export
Provide strict check for each part,each process before export.
Provide post-sale service,including installation,technical guide and training.
If you are interested in our products, please contact with us. Thank you.
