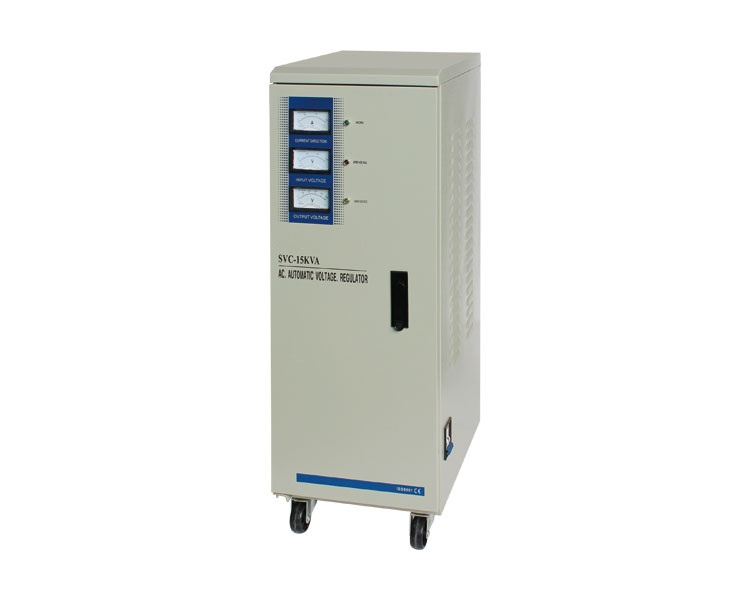

SVC 15va From 90-250V to 220VAC 15kVA Single Phase Voltage Stabilizer

Name: SVC 15va From 90-250V to 220VAC 15kVA Single Phase Voltage Stabilizer
Brand: all-electronics-online.com
SKU: 727697142
Availability: InStock
Rating: 4.9 (78 reviews)

Price:	Negotiable/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	15KVA
Current Type:	AC
Phase:	Single Phase
Usage:	JIW
Frequency:	Industrial Frequency

Product Description

SVC series single phase servo type high accuracy full automatic AC voltage regulator adopts the international advanced technology and intelligent CPU centralized control technology. It has beautiful design,easy to moving,large capacity, etc. which is composed of servo motor, control circuit and compensator. All products have over voltage, delay, temperature and error production and also voltage two-way indication, which make the function of the product more perfect and reliable. The stabilizer widely used in the household, industrial and agricultural production etc.

Advantage:

•Microprocessor control
•Stepless voltage regulation over a wide range
•The high output voltage accuracy (220V ±1.5%)
•Surge protection
•Protection against short circuit & overheating
•Differentiation and fault indication
•Informative meter display
•Modern design
•urge protection up to 300 V
•High speed regulation
•The multistage defense

Product Parameter

Model	SVC-500VA	SVC-1000VA	SVC-1500VA	SVC-2000VA	SVC-3000VA	SVC-5000VA	SVC-8000VA	SVC-10000VA
Power capacity	400W	800W	1200W	1600W	2400W	4000W	6400W	8000W
Input voltage	AC 140-260V
Output voltage	220V±1.5%or3.5%
Phase	Single Phase
Frequency	50-60Hz
Adjust time	1 second
Type of stabilization	Electromechanical
Display	Meter display
Protection over voltage	250±2V
Protection lack voltage	185±2V
Mode Bypass	No	No	No	No	Yes	Yes	Yes	Yes
Efficiency	98%
Type of connection	Euro plug/ earthing-pin	Euro plug/ earthing-pin	Euro plug/ earthing-pin	Euro plug/ earthing-pin	Terminal block	Terminal block	Terminal block	Terminal block
Degree of protection	IP20
Delay	3 second
Temperature protection	110°C±10°C
Ambient Temperature	-10~+45°C
Relative humidity	80%
Waveform distortion	No additional wave form distortion
Dimension of device (LWH)(mm)	190170145	210205165	210205165	275245215	305245215	365245215	485280240	485280240
Weight of device	4.1Kg	5.7Kg	6.2Kg	9.1Kg	11.5Kg	16.3Kg	25.4Kg	28.4Kg
