| Prod Model: |
SVC |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Place Of Origin: |
Zhejiang China (Mainland |
| Output Undervoltage Protection: |
184V±4V(Adjustable),246V±4V |
| Efficiency: |
>90% |
| Input Voltage: |
220V/380V |
| Certificate: |
CE |
| Packaging Detail: |
Standard Packing |
| Power: |
50kVA-5000kVA |
| Current Type: |
AC |
| Phase: |
Three Phase |
| Usage: |
SVC |
| Frequency: |
Low Frequency |
| Brand: |
CNC |
Product Description

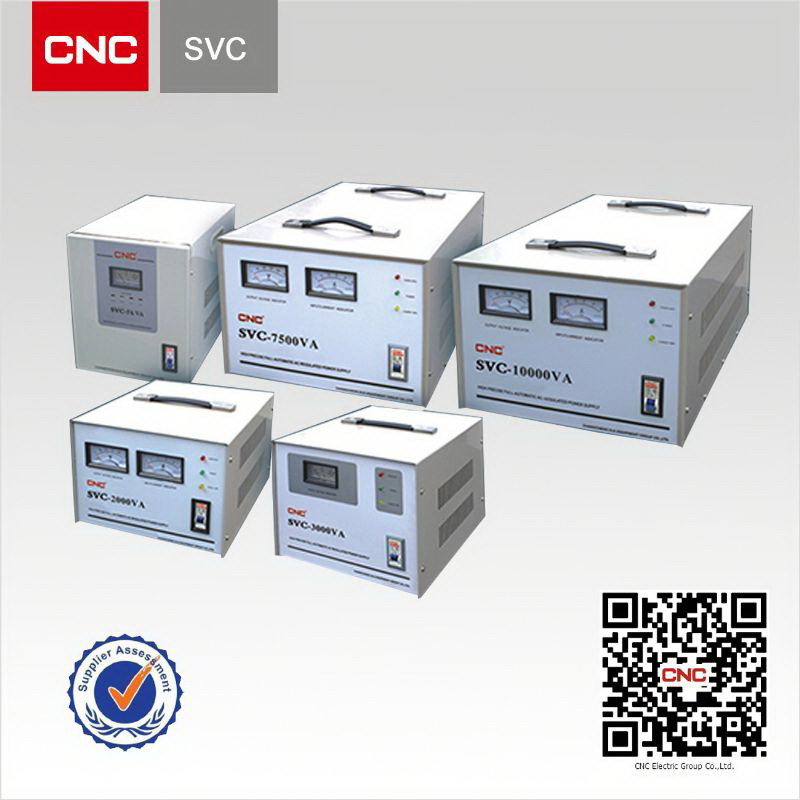

SVC High Accuracy Full-Automatic Three/Single Phase Voltage Stabilizer
SVC single Phase
SVC Single-phase Automatic Voltage stabilizer adopts linear integrated circuit to form the control system, drive the contact voltage regulator to regulate automatically by controlling the servo motor, it is provided with delay, over-voltage, under-voltage and over-current protection function which ensure the voltage stabilizer can supply safety; SVC Single-phase Automatic Voltage stabilizer has the advantage of high efficiencdy, same input and output voltage waveform, stable output voltage, work continuously and so on.
Excellent output voltage waveform, stable regulating process, no lost electricity phenomenon; High accuracy of output voltage generally it is fixed in 20+-3% when leave the factory, wide input voltage range, strong load adaptability; With satisfiable load property. It has (under-voltage), over-voltage and over-current protection function; It can cut off the power supply automatically to ensurre the safety of the consumer when the output voltage is over-high or the input is over-current. It adopted high breaking capacity mini circuit breaker with the over-current protection function when it is over load or short-circuit; It use high property carbon brush which prolong the service life of the voltage stabilizer.
SVC Three Phase
The SVC Three Phase product is constructed by connecting the three pieces of high accuracy full-automatic AC voltage stabilizers with Y connection method, with the advantage of: Wide input voltage range, high efficiency, with over (under)voltage, over-current protection function, high regulating accuracy, short adjusting time, same input and output voltage waveform, small volume, .
2. Scope Of Application:
It is available in the electric equipment and facilities in housing, factory, school, shop, office, precision instrument for scientific experiment, can long hours circulate.
Pls feel free to contact us for more details.
|
Input voltage |
280V~430V |
|
Output voltage |
380V± 3% |
|
Frequency |
50 / 60 Hz |
|
Response time |
< 1s (when input voltage varies 10%) |
|
Max rated output current |
1.5kva ~ 45kva |
|
Environment temperature |
' -5º C~+40º C |
|
Temperature rise |
< 60 º C |
|
Relative humidity |
less than 90% |
|
Waveform aberration |
No additional distortion |
|
Efficiency |
> 90% |
|
Withstand voltage |
1500 V/min |
|
Model |
Specification & capacity (VA) |
Overall size (W*D*L) mm |
Net weight kg |
Package size/set(W*D*L) mm |
Gross weight kg |
|
Three-phase movable type TNS/SVC |
TNS/SVC-1500 |
480*300*180 |
16 |
560*385*235 |
17.5 |
|
TNS/SVC-3000 |
180*380*325 |
18.5 |
560*385*235 |
20 |
|
TNS/SVC-4500 |
180*380*325 |
20.5 |
560*385*235 |
22 |
|
Three-phase cubicletype TNS/SVC |
TNS/SVC-6000 |
300*280*670 |
32 |
430*390*770 |
38 |
|
TNS/SVC-9000 |
300*320*760 |
42 |
430*430*860 |
50 |
|
TNS/SVC-15000 |
410*320*830 |
60 |
540*480*930 |
65 |
|
TNS/SVC-20000 |
440*425*870 |
76 |
640*540*1090 |
81 |
|
TNS/SVC-30000 |
510*425*980 |
117 |
640*540*1090 |
132 |
|
TNS/SVC-40000 |
840*500*1230 |
220 |
980*630*1430 |
240 |
|
TNS/SVC-50000 |
840*500*1230 |
235 |
980*630*1430 |
255 |
|
TNS/SVC-60000 |
840*500*1230 |
248 |
980*630*1430 |
268 |
