| Current Type: |
AC |
| Usage: |
SVC |
| Phase: |
Single Phase / Three Phase |
| Frequency: |
Power Frequency |
| Iron Core Shape: |
E |
| Application Range: |
Industry, Bank, Data Center, Hospital, etc |
| Brand: |
Gridstone |
Product Description

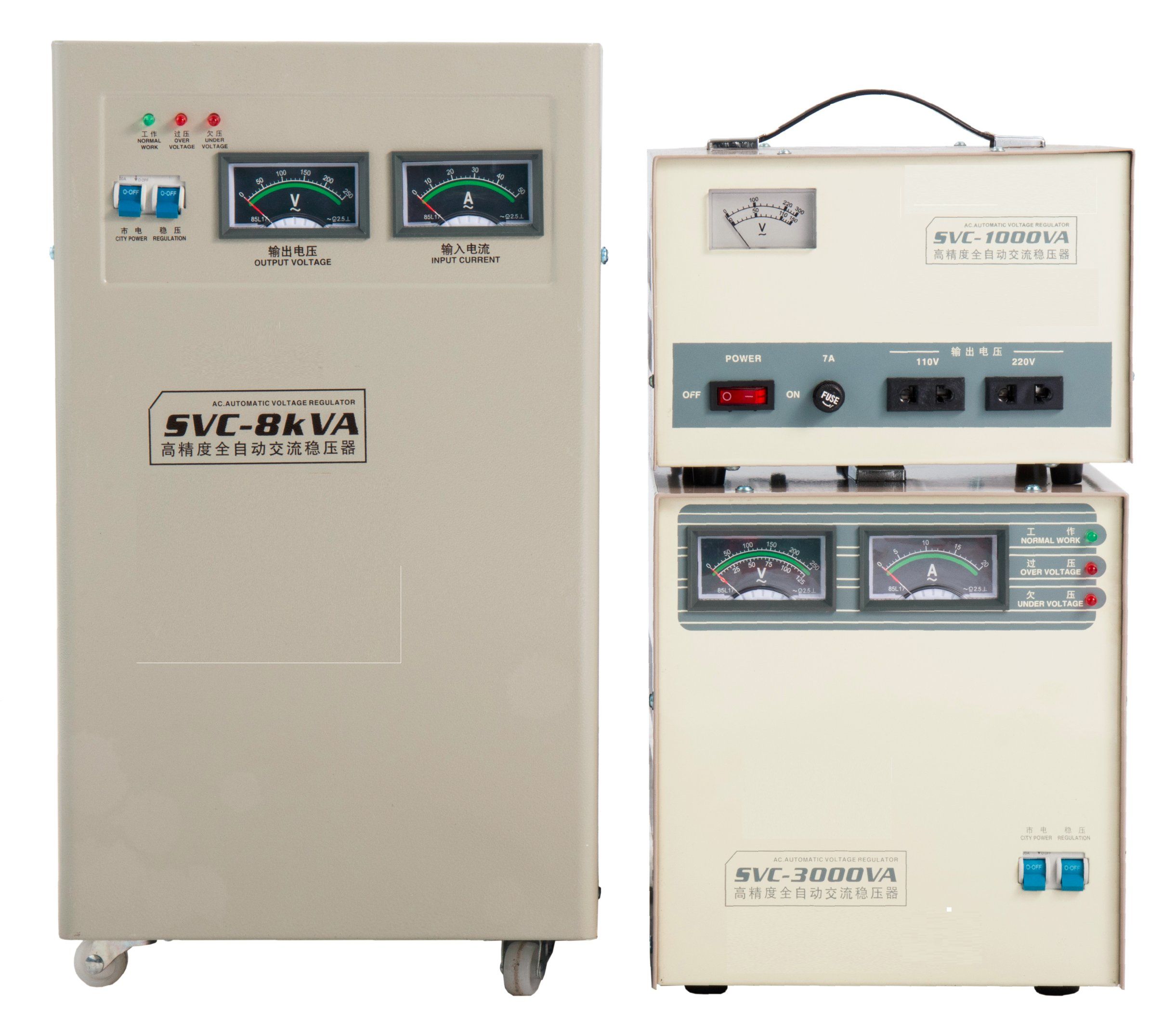

SpecificationSVC single - phase and three -phase high accuracy full-automatic AC voltage stabilizer is one kind of our dominant products, made up of contact auto voltage regulator, servo motor, automatic control circuit, etc. When the power network voltage fluctuates or the load varies, automatic sampling control circuit will send signal to drive the servo motor which can adjust the position of carbon brush of auto voltage regulator, then, the output voltage will be adjusted to rated value and get a steady state. This voltage stabilizer is of common type , it has the function of connecting through the commercial power. Compared with other voltage stabilizers, it has the advantage of great variety , complete specification, nice appearance and obvious features of high efficiency, no wave distortion, reliable performance, working continually for long time, besides, it is provided with short time delay and over voltage protection, and the long time delay and under voltage protection also can be set according to user requirement. This product is an ideal stabilized voltage supply, widely used in any locations requiring electricity and ensures your power device can run normally.
Capacity: Single Phase: 0.5kVA to 10kVA
Three Phase: 10 to 60 kVA
Parameters:Input voltage: 270V-430V/240V-430V
Output voltage: 220V/ 380V
Stabilization accuracy: ±3%
Frequency: 50Hz/60Hz
Delay time: long 180s,short 5s
Debug time: ≤1s (with the input voltage variation of 10%)Overload
Efficiency: ≥90%
Dielectric strength: 1,500V/min Voltage
temperature: -10±40°CRelative
humidity: ≤95%
Temperature rise: lower than 60°C
Wave form distortion: no additional waveform distortionInsulation
resistance: ≥2MΩ
Company Profile:
Founded in 1983, GridStone Electric is a leading manufacturer of automatic voltage stabilizer and transformer. The products currently include digital static voltage stabilizer, digital servo voltage optimizer, power factor correction units, LV and MV transformers and reactors, UPS, Variable Frequency Power Source, Oil Immersed Induction Voltage Regulator. Thanks to over 30 years in the business and on going technical research, GridStone have become a competitive high-tech company, and meet the requirements of a constantly growing number of customers through design, production and service.
Besides standard production, GridStone is flexible and strong at custom design and production according to the customers' specification. Expert training and technical support are available to serve the customers quickly and professionally.
GridStone factories are ISO9001 and ISO14001 certified.
Founded in 1983, GridStone Electric is a leading manufacturer of automatic voltage stabilizer and transformer. The products currently include digital static voltage stabilizer, digital servo voltage optimizer, power factor correction units, LV and MV transformers and reactors, UPS, Variable Frequency Power Source, Oil Immersed Induction Voltage Regulator. Thanks to over 30 years in the business and on going technical research, GridStone have become a competitive high-tech company, and meet the requirements of a constantly growing number of customers through design, production and service.
Besides standard production, GridStone is flexible and strong at custom design and production according to the customers' specification. Expert training and technical support are available to serve the customers quickly and professionally.
GridStone factories are ISO9001 and ISO14001 certified.
Watch 360 degree video of GridStone factory on computer: http://www.is360.com/GridStone/index.html
(Click mouse on the video and drag the mouse at the same time, the video will turn to different angle and show 360 degree of GridStone factory. )

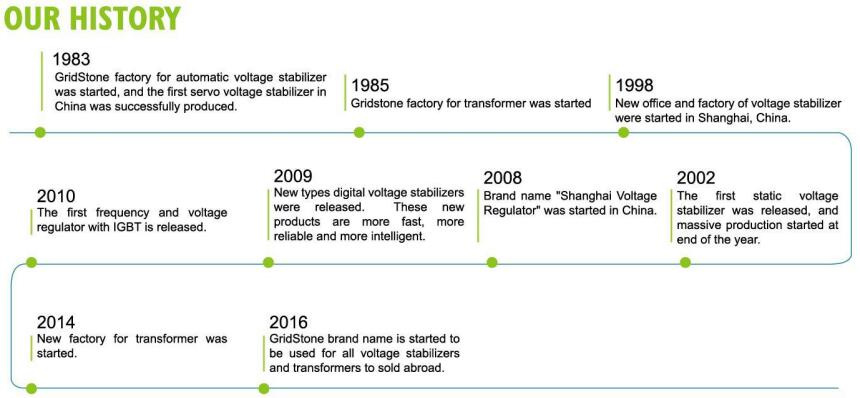

Our History
1983, GridStone factory for automatic voltage stabilizer was started, and the First servo voltage Stabilizer in China was successfully produced.
1985. Gridstone factory for transformer was started
1998. New office and factory of voltage stabilizer were started in Shanghai, China.
2002. The first static voltage stabilizer was released, and massive production Started at end of the Year.
2008. Brand name "Shanghai Voltage Regulator" was started in China.
2009. New types digital voltage stabilizers were released. These new Products are more fast, More reliable and more intelligent.
2010. The first frequency and voltage regulator with IGBT is released.
2014. New factory for transformer was started.
2016. GridStone brand name is started to be used for all voltage Stabilizers and transformers to Sold abroad.
