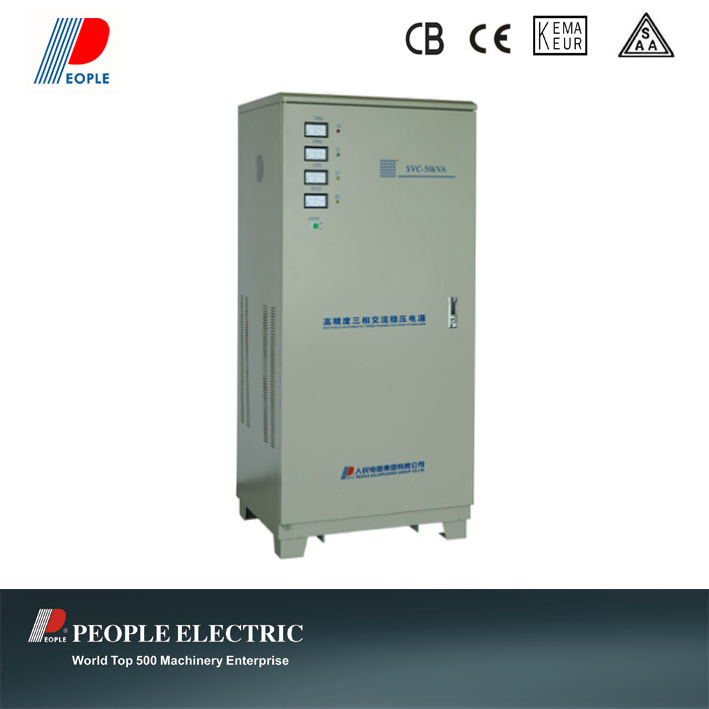

SVC Three-Phase High Accuracy Full-Automatic AC Voltage Stabilizer
| Price: |
US $ 25.04/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
10/Piece |
| Pay Type: |
L/C,T/T |
| Prod Model: |
SVC |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| SVC: |
0.5 kVA |
| 1 KVA: |
1.5 kVA |
| 2 KVA: |
3 kVA |
| 5 KVA: |
10 kVA |
| Current Type: |
AC |
| Phase: |
Three Phase |
| Usage: |
SVC |
| Brand: |
People |
Product Description

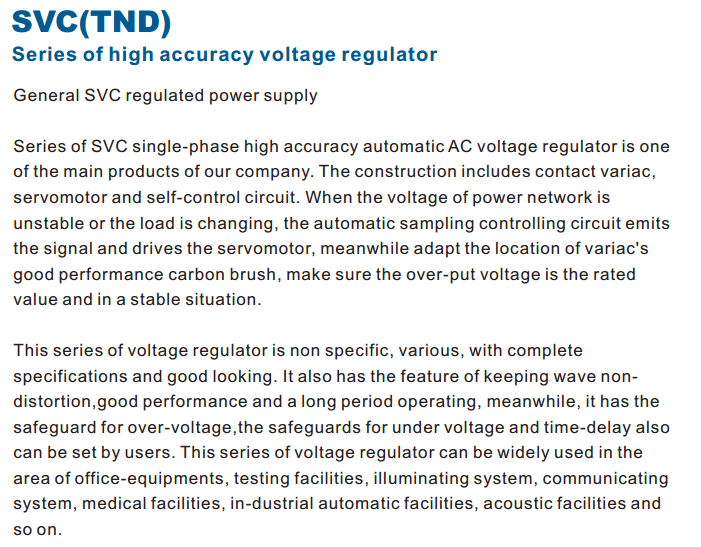

SVC three phase high accuracy full-sutomatic AC voltage stabilizer is one kind of our dominant products, made up of contact auto voltage regulator, servo motor, automatic control circuit, etc. When the power network volthge fluctuates or the load varties, automatic sampling control circuit will send signal to drive the servo motor which can adjust the position of carbon brush of auto voltage regulator, hen, the output voltage will be adjusted to rated value and get a steady state. Servo Motor Type Full Copper
| Single-phase output voltage | 160V-250V(120-260V) | Frequency | 50Hz/60Hz |
| Single-phase input voltage | 0.5KVA-3KVA 220V and 110V
5KVA-30KVA 220V | Adjustable Time | less than 1s(when input voltage has a change of 105) |
Three-phase input voltage | Phase voltge 160V-250V
Wire voltage 277V-430V | Ambient temperature | -5°C -- 40°C |
| Waveform distortion | No additional waveform distortion |
Three-phase output voltage | Phase voltge 220V
Wire voltage 380V | Load power factor | 0.8 |
| Dielectric strength | 1500V/1 min |
| Accuracy of voltgae stabilization | 220V±3% 110V±6% | Insulation resistance | more than 2MΩ |
Model and spec
Three-phase four wire
| Spec.(KVA) | Products size D×W×H(CM) | PackageD×W×H(CM) | Weight(KG) | Qty |
| SVC- 1.5 | 40×36×17 | 52×48×28 | 18 | 1 |
| SVC- 3 | 42×38×19 | 54×50×31 | 23 | 1 |
| SVC- 4.5 | 42×38×19 | 54×50×31 | 27 | 1 |
| SVC- 6 | 37×28×68 | 48×40×78 | 39 | 1 |
| SVC- 9 | 35×33×78 | 48×45×90 | 48 | 1 |
| SVC- 15 | 43×38×73 | 55×51×90 | 85 | 1 |
| SVC- 20 | 43×51×91 | 64×55×106 | 124 | 1 |
| SVC- 30 | 43×51×91 | 64×55×106 | 197 | 1 |
| SVC- 45 | 65×43×95 | 78×55×110 | 260 | 1 |
| SVC- 60 | 77×55×100 | 90×67×115 | 260 | 1 |
| SVC- 80 | 77×55×100 | 90×67×115 | 290 | 1 |
| SVC- 100 | 77×55×100 | 90×67×115 | 350 | 1 |
People Ele.Applianceas Group established in 1996, is one of leading manufactures of electric appliance in China.People Group specialized in manufacturing low, medium and high voltage electric apparatus, complete equipment, electrcal wire & cable, electrical transmission & transformation equipment, as well as explosion proof eletric apparatus, meters and instrument, power automation system and so on.
From People Group's brith till present, self-accumulation of capital and resource integration are their secrets to success.By means of restructuring, merging, and building partnerships People Group has created a business model of multi-industries and global diversification, such as urban construction, hydropower stations, energy resources, modern logistics, electronic information systems, foreign trading and so on.People Group possess 4 modernized production bases that total area is over 50 branches and offices overseas.
People Group has been approved by ISO9001, ISO14001 and OHSAS18001 systems.The products are employed in key national projects, such as Pudong airport, the Three Gorges Projects, Beijing Metro, Olympic Palaestra etc.People Group is rated as one of Top 500 Enterprises in China and World Machinery 500."People" is awarded as China Well-known Trademark by China Industrial and Commercial Administration General Department.People products won China TOP Brand and National Inspection Exemption Certificate.
Of era of economic globalization, the international electric appliance industry is growing dramatically, with creates numerous opportunities and challenges.To compete with others for global marketplace, People Ele.Appliance Group Zhejiang Import and Export Corp, an exclusively-invested enterprise, is given birth by People Group.It is registered with National Industrial and Commercial Department, permission granted to incorporate and enjoy independent import and export trading.Improt and Export Corp is a member of China Council for the Promotion of International Trade(CCPIT) and China Chamber of Commerce for Import and Export of Machinery and Electronic Products.As People Group's window onto the rest of world, Import and Export Corp with conception of quality assurance standards and sincere service has won good reputation from our loyal customers all around the world.
The size of staff in People Electrical Appliance Group has increased by 45 folds for over ten years, the marketing network has expanded by 65 times, and the production value is now 75 times as that 0 the very beginning.Though multinationals and domestic enterprises are challenging the group in international market as well as in China, Mr.Zheng Yuanbao, leader of People Electrical Appliance Group, is exerting all his efforts.
