SVC/Tnd 500va Voltage Stabilizer with Ce Certificate Approved

Name: SVC/Tnd 500va Voltage Stabilizer with Ce Certificate Approved
Brand: all-electronics-online.com
SKU: 746006055
Availability: InStock
Rating: 4.8 (81 reviews)

Price:	US $ 23-28/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	10/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	SVC/TNS-500VA
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Input Voltage:	160-260V
Output Voltage:	220V/110V
Power Factor:	0.8
Phase No.:	Single Phase
Adjustable Time:	<1 Sec.Against 10% Input Voltage Deviation
Efficiency:	>90%
Relative Humidity:	<95%
Ambient Temperature:	-10-+40 Degree
Temperature Rise:	<60 Degree
Withstand Voltage:	1500V/Min
Current Type:	AC
Phase:	Single Phase
Usage:	SVC
Frequency:	Low Frequency
Application Range:	Household
Brand:	Chana

Product Description

Product Description of voltage stabilizer

Feature

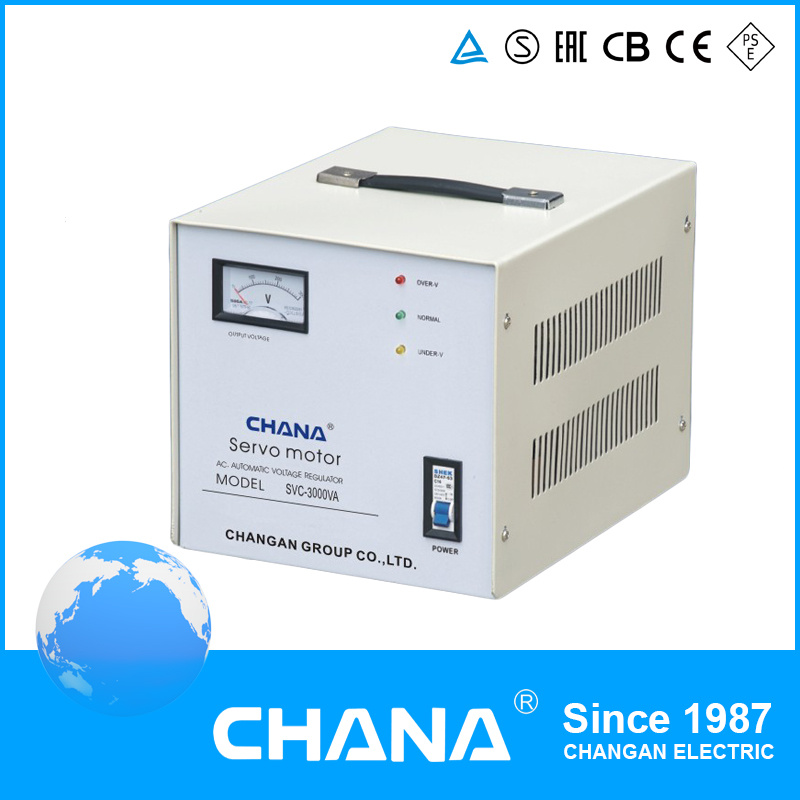

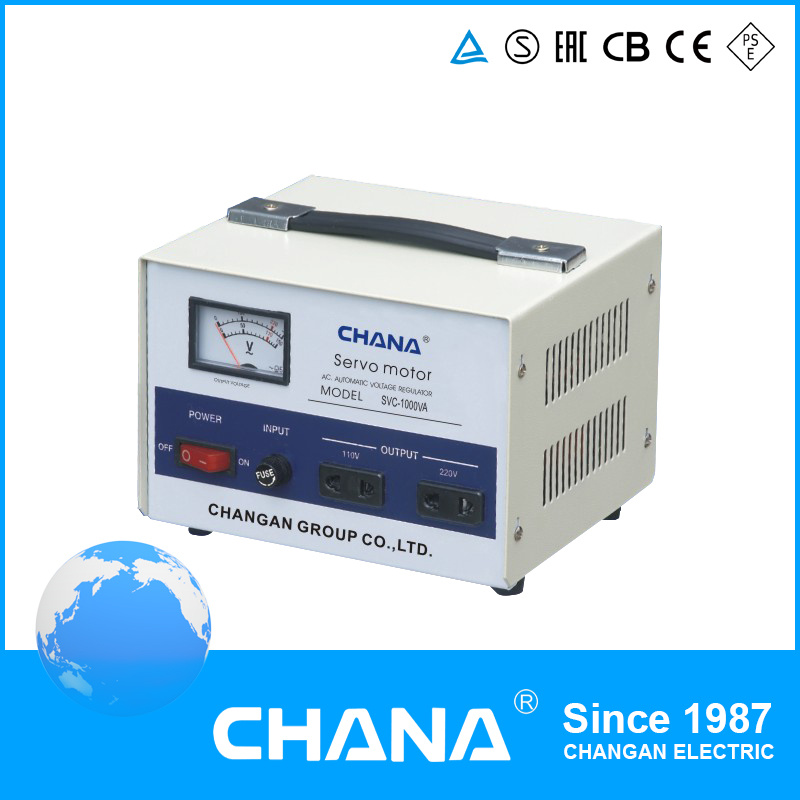

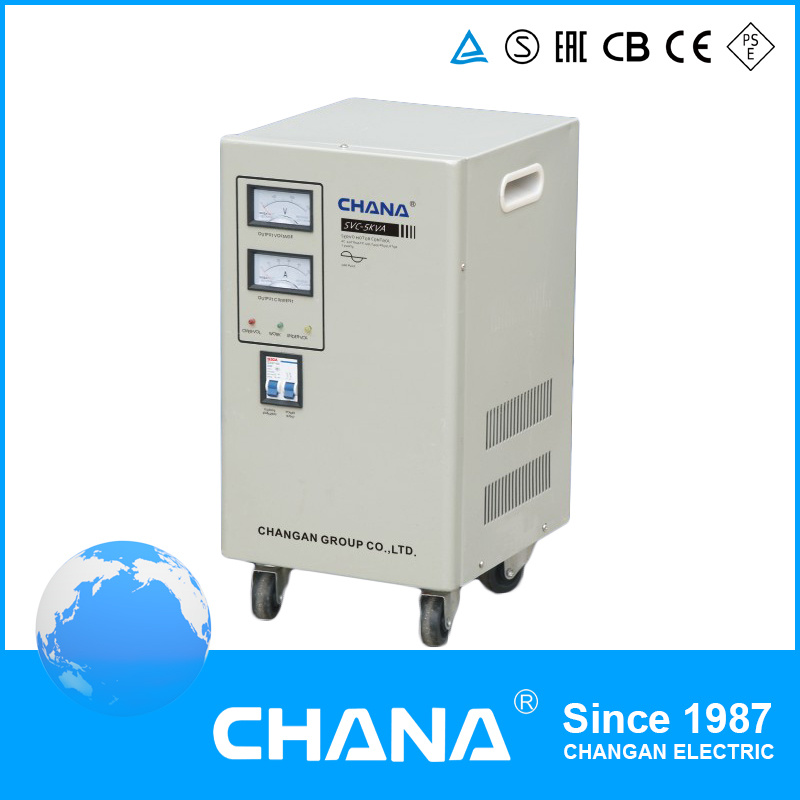

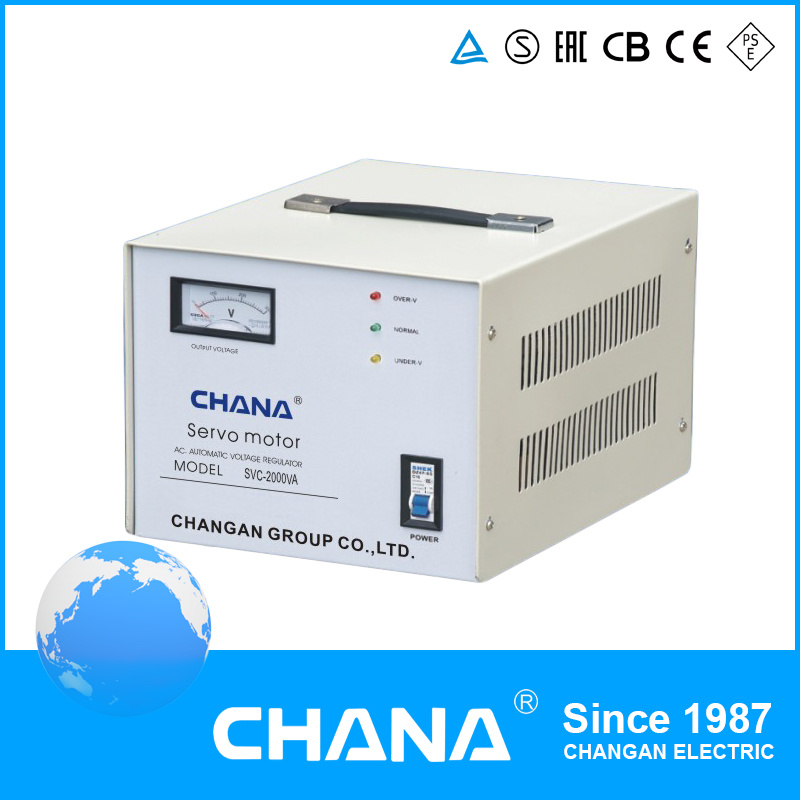

The SVC series voltage stabilizer is a servo-motor type high accuracy household voltage stabilizer. Low power consumption, reliable work, high accuracy of stabilization, and good for use in regions where the net voltage is much fluctuating.

Main Technical Data
Phase no.: Single-phase
Input voltage: 160V - 250V
Output voltage: 220V/ 110V +/- 2.5% (<=5000VA with 110 +/- 2.5%)
Frequency: 50Hz/ 60Hz
Adjustable time: < 1 sec. Against 10% input voltage deviation
Efficiency: >90%
Ambient Temperature: - 10 degree - + 40 degree
Relative humidity: < 95%
Temperature rise: < 60 degree
Waveform distortion: Non additional waveform distortion
Withstand voltage: 1500V/min
Insulation resistance: > 2M ohm
With over current protector
With output voltage indication

Application of the voltage stabilizer
Computer, Tesing equipment, Lighting system, Communication system, Medical equipment, Industrial automatic equipment, Stereo sound equipment and home appliance etc.

Note: If input voltage AC50V - 130V, or 160V - 250V with 110/220V input voltage selector switch required by ccustomers, please specify when ordering.

Special Specification can be made according to orders.

Model	Nos&Kinds of Pkg.Packing Size(cm)	Package size (cm)
SVC-500VA	4 Uint/Ctn	50 * 46 * 20
SVC-1000VA	4 Uint/sCtn	55 * 50 * 21
SVC-1500VA	4 Uints/Ctn	55 * 50 * 21
SVC-2000VA	2 Uints/Ctn	61 * 35.5 * 25.5
SVC-3000VA	2 Uints/Ctn	61.5 * 39 * 29
SVC-5000VA	1 Uint/Case	33 * 28 * 54
SVC-5KVA (Vertical)	1 Uint/Case	31.5 * 35 * 55.5
SVC-7500VA	1 Uint/Case	37.5 * 35.5 * 60
SVC-7.5KVA(Vertical)	1 Uint/Case	41.5 * 45 * 63
SVC-10000VA	1 Uint/Case	37.5 * 35.5 * 60
SVC-10KVA (Vertical)	1 Uint/Case	41.5 * 45 * 63
SVC-15KVA	1 Uint/Case	52 * 51 * 83
SVC-20KVA	1 Uint/Case	52 * 51 * 83
SVC-25KVA	1 Uint/Case	52 * 51 * 101
SVC-30KVA	1 Uint/Case	52 * 51 * 101
SVC-50KVA	1 Uint/Case	80 * 65 * 154

Established in 1987, CHANGAN GROUP Co., Ltd. Has been acknowledged as one of the most respected nation-wide manufacturers and exporters of low-voltage electrical apparatus in P. R. China.

Comprising more than 62 factories with over 2500 employees and the whole corporation occupies 82000m2 ground during past 27 years.

We manufacture and export varieties of low voltage electrical appliance including all kinds of CIRCUIT BREAKER, CONTACTOR, RELAY, SWITCH, SOLAR INVERTER etc.

All of our production procedures strictly follow ISO9001, ISO14001 and OHSAS18001, most of our products are certified such as SEMKO, TUV, CB and CE which can prove our guarantee quality and our products also have been chosen as "Chinese FAMOUS BRAND PRODUCT".

We not only make efforts in developing our own products with "CHANA"brand but also provide OEM services. Hope to establish good business relationships with your esteemed company in near future.
