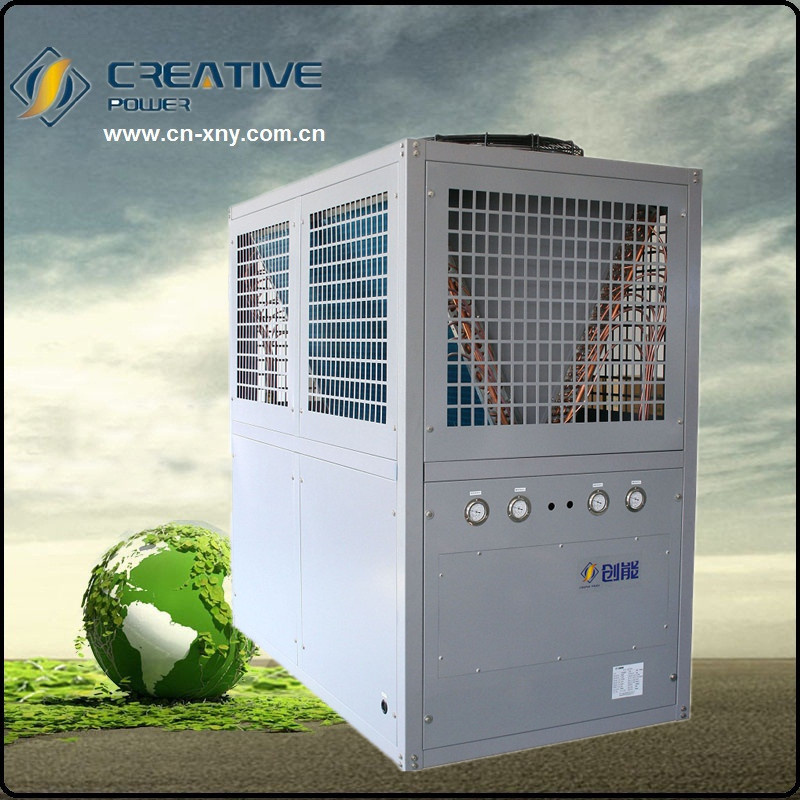

Swimming Pool Heat Pump With 40kw Heating Capacity

Name: Swimming Pool Heat Pump With 40kw Heating Capacity
Brand: all-electronics-online.com
SKU: 673183462
Availability: InStock
Rating: 4.8 (139 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB
Min Order:	2/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Rated Capacity (Kw):	13
Rated Outlet Hot Water Quantity(L/H):	860
Rated Outlet Hot Water Temperature:	28 Degree
Maximum Outlet Hot Water Temperature:	35 Degree
Certification:	CE
Control Type:	Digital
Display Type:	LCD
Material:	Stainless Steel
Usage:	Hot Water

Product Description

Swimming Pool Heat Pump With 40kw Heating Capacity

1. High COP, reach 6.0.
2. Low noise compressor and ventilator
3. Ecological: To protect environment, use R410A refrigerant.
4. Could supply both cool water and hot water to cool or heat the swimming pool.
5. Reliable and stable

Use famous brand name parts. The use of titanium heat exchanger leads to efficient heat transfer without any danger of corrosion. Provided with power defrost system, keeps working even at low ambient temperature.

Heat Pump, Air Source Heat Pump, Air to Water Heat Pump, Home Use Heat Pump, Commercial Use Heat Pump, Water Source Heat Pump, Water to Water Heat Pump, Ground Source Heat Pump, High COP.

Product:Swimming Pool Heat Pump
model		CKFCRS-8.0I	CKFCRS-13II	CKFCRS-20II	CKFCRS-40II	CKFCRS-80II	CKFCRS-120II
Rated Heating capacity (KW)		8	13	20	40	80	120
Rated producte hot water capacity(L/H)		529	860	1323	2645	5291	7937
Outlet water rated temp		28
Outlet water max temp		35
electricity parameter	Rated power (KW)	1.62	2.57	3.9	7.8	15	23.5
	Current (A)	8	4.2	7.1	14.7	31.6	47.6
	Rated voltage (V)	220V	380~3N	380~3N	380~3N	380~3N	380~3N
	Rated frequency (HZ)	50HZ
	Max power (KW)	2.15	3.1	5.1	11.9	22.9	31.5
	Max current (A)	9.7	7.1	9.6	19.7	47.2	59.5
Refrigerant		R410a
Pipe size (mm)		2* DN32	2* DN32	2* DN50	2* DN50	2* DN65	2* DN90
Circulation Water Flow (M3/h)		2.2	3.7	5.7	11.4	22.8	34.4
Dimensions (mm)		695655640	695655740	706686940	14408001400	2060×1100×2140
Weight (KG)		67	102	166	263	943	985
Noise (Db)		53Db	58Db		65Db	68Db	70Db
Heat exchange		Titanium tube heat exchanger
Expansion valve		Emerson thermal expansion valve

Zhejiang Cen New Energy Technology Co., Ltd. Our company is still developing more styles of products. We take the technology as the core\regard the quality as life\treat the user as god. We dedicated to provide you with the highest cost-effective energy-saving products\high-quality engineering design and meticulous transformation of after-sales service!

Our main products as follows:
Air-source heat pump unit for household and commercial
Ground source heat pump unit
Water source heat pump unit
Combine cooling\heating and hot water heat pump unit
Swimming pool heat pump unit
Heat recovery of centre air-conditioner so on energy-saving products, our products passed prove ISO9001\CCC\CE certificate.
Product features: Reasonable structure\stable quality\reliable and nice.

We consistently insist on the sane business strategy. We don't demand the biggest, only best. Take the most serious attitude, do the most professional thing. Let us enhance friendship with large clients and sincere cooperation, create brilliance!
