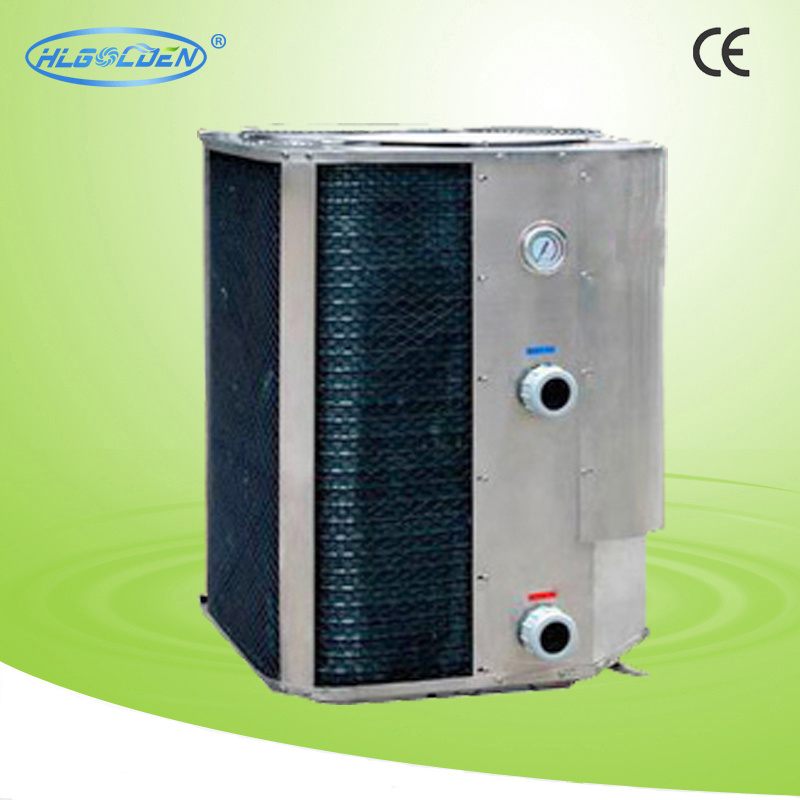

Swimming Pool Heat Pump with Small Cooling Capacity (HLLS-13AD~17BC)

Name: Swimming Pool Heat Pump with Small Cooling Capacity (HLLS-13AD~17BC)
Brand: all-electronics-online.com
SKU: 721592915
Availability: InStock
Rating: 4.9 (60 reviews)

Price:	US $ 650/Piece
Trade Terms:	FOB,CFR,EXW
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	HLLS-13AD~17BC
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Cooling Capacity:	9000-12000W
Cooling Method:	Indirect Cooling

Product Description

Swimming pool heat pump

*Constant heating and cooling function, applicable to swimming pool, SPA or fish cultivation.
*Advanced corrosion resistance Titanium heat exchanger, virtually impervious to water chemistry damage.
*World famous Japanese brand compressor.
*Digital LCD display wire control panel, controls water temperature to within 1-5° C difference from set point.
*On-off timing function, no human attendance is required for operation once started.
*Insufficient water flow protection & high/low pressure protection.
*Auto defrosting with 4-way valve, ensure reliably running at low ambient temperature.
*Warms your pool or SPA with the reliability and efficiency can also cool your pool and SPA during hot summer season.

Model HLLS~			13AD	13BD	14AD	14BD	17AD	17BD	17AC	17BC
Model HLLS~			(4.5P)	(4.5P)	(5P)	(5P)	(6P)	(6P)	(6P)	(6P)
Heating capacity		W	12500	12500	14000	14000	17000	17000	17000	17000
Heating capacity		BTU/h	42500	42500	48000	48000	60000	60000	60000	60000
Cooling capacity		W	9000	9000	10000	10000	12000	12000	12000	12000
Cooling capacity		BTU/h	30000	30000	34500	34500	42000	42000	42000	42000
Heating range		° C	15 ~ 40	15 ~ 40	15 ~ 40	15 ~ 40	15 ~ 40	15 ~ 40	15 ~ 40	15 ~ 40
Cooling range		° C	8 ~ 30	8 ~ 30	8 ~ 30	8 ~ 30	8 ~ 30	8 ~ 30	8 ~ 30	8 ~ 30
Heating input power		W	2550	2604	2980	2916	3600	3600	3696	3650
Cooling input power		W	2495	2540	2910	2840	3540	3540	3628	3590
Running current heating		A	11.7	12.3	13.6	13.1	16.7	16.7	5.9× 3	5.85× 3
Running current cooling		A	11.4	11.9	13.3	12.8	16.4	16.4	5.7× 3	5.6× 3
COP			4.9	4.8	4.7	4.8	4.7	4.7	4.6	4.6
EER			3.6	3.5	3.5	3.5	3.4	3.4	3.3	3.3
Compressor Type			Scroll
Power Supply			220V/1ph/50Hz						380V/3ph/50Hz
Refrigerant			R407C, R410A
Fan Motor Input		W	200	150	200	150	200	150	200	150
Fan Speed		RPM	850	850	850	850	830	930	830	930
Noise		dB(A)	60	60	60	60	60	60	60	60
Water Connections		inch	1-1/2"	1-1/2"	1-1/2"	1-1/2"	1-1/2"	1-1/2"	1-1/2"	1-1/2"
Water Flow Volume		m3/h	5-8	5-8	5-8	5-8	5-8	5-8	5-8	5-8
Water Pressure Drop		kpa	15	15	15	15	16	16	16	16
Applicable ambient temp.		° C	-7+43	-7+43	-7+43	-7+43	-7+43	-7+43	-7+43	-7+43
Dimension	L	mm	660	1115	660	1115	660	1115	660	1115
	W		660	470	660	470	660	470	660	470
	H		860	690	860	690	860	935	860	935
Paking Dimension	L	mm	750	1220	750	1220	750	1220	750	1220
	W		710	480	710	480	710	480	710	480
	H		980	710	980	710	980	1045	980	1045
Weight	NW.	kg	83	84	102	104	103	114	105	116
Weight	GW.	kg	100	100	119	120	120	132	122	134
Loading quantity (20' /40G/40H)			48/96/96	60/129/129	48/96/96	60/129/129	48/96/96	40/86/86	48/96/96	40/86/86
