| Prod Model: |
YM-20-C12PE-01-001 YM-20-J12SX-01-001 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: |
Red+Black |
| Protection Level: |
IP65/IP67 |
| Current Rating(a): |
5A |
| Shell & Insulated Parts: |
High Performance Engineering Plastics |
| Hardware Matel: |
Zinc Alloy (Pearl Hard Chromium) |
| Connecting Mode: |
1/4 Bayonet Connect |
| Assembly: |
Solder |
| Operating Voltage: |
500V |
| Contact Pin: |
Copper Alloy(Gold-Plated) |
| Export Markets: |
Global |
Product Description

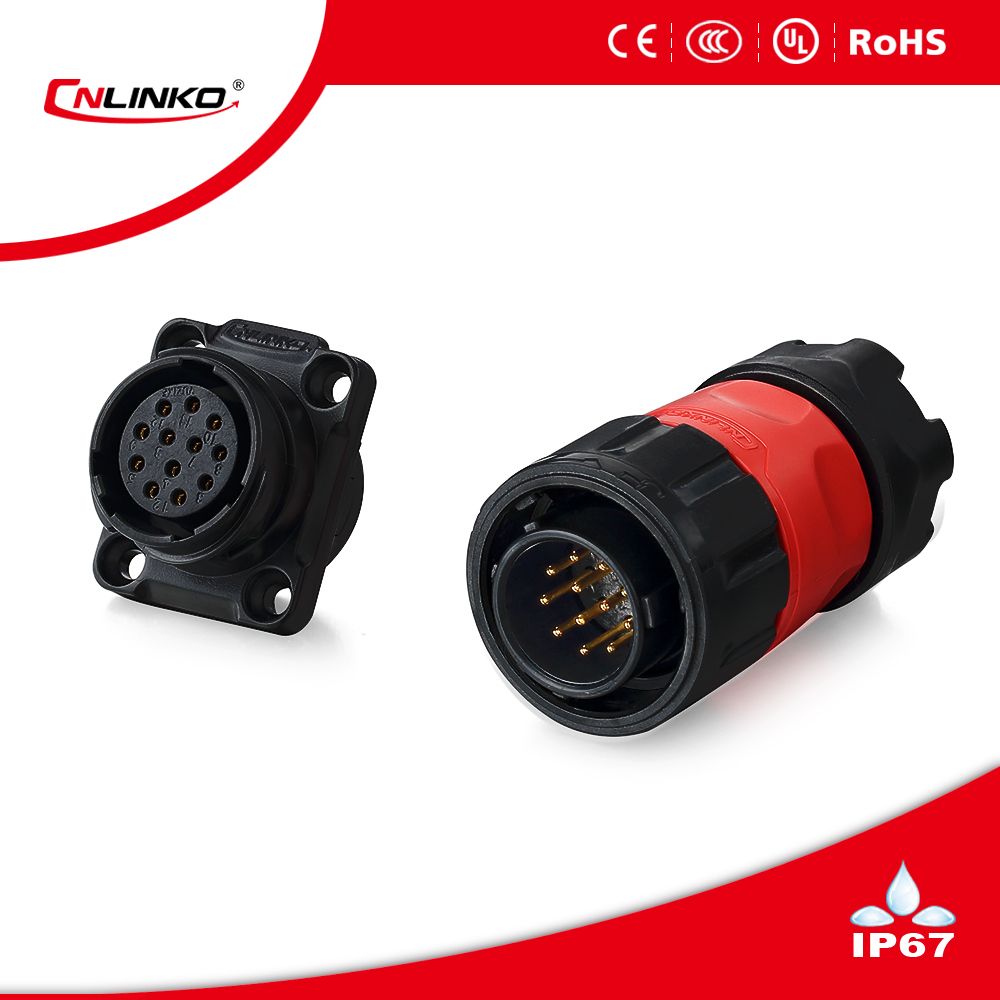

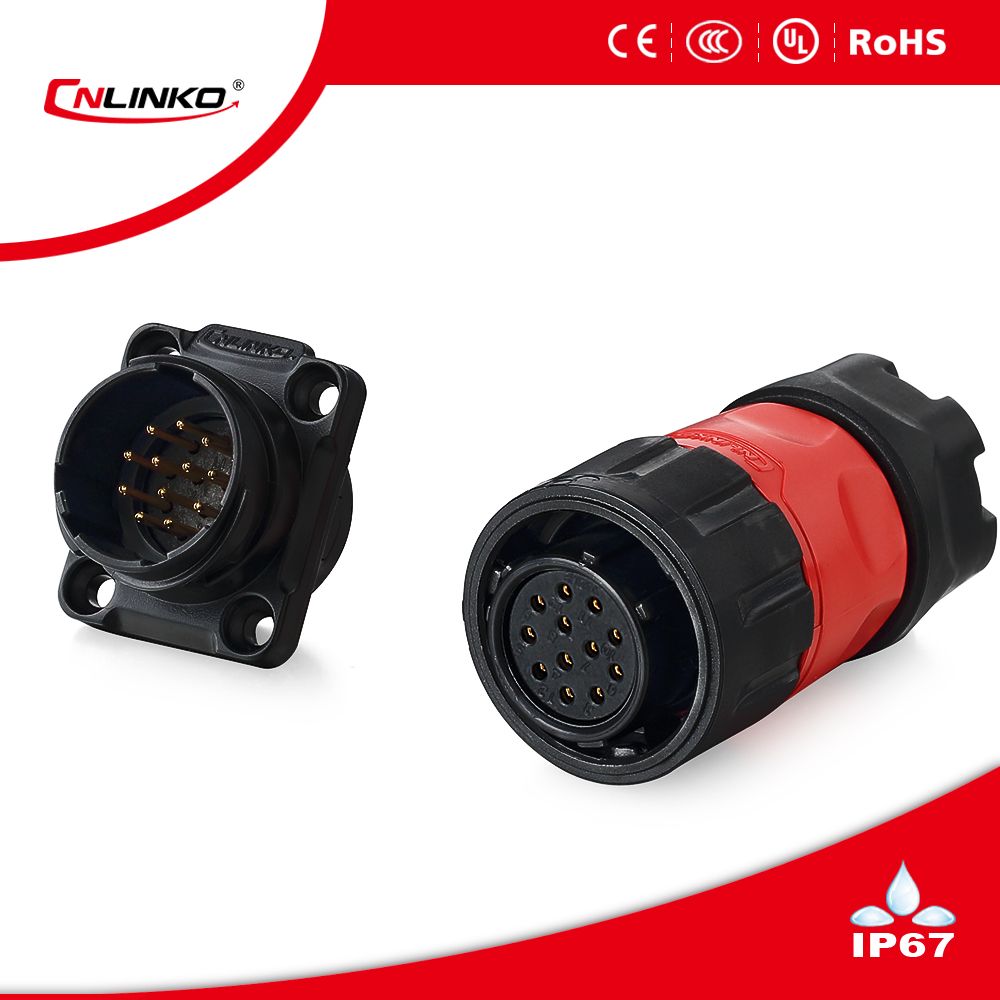

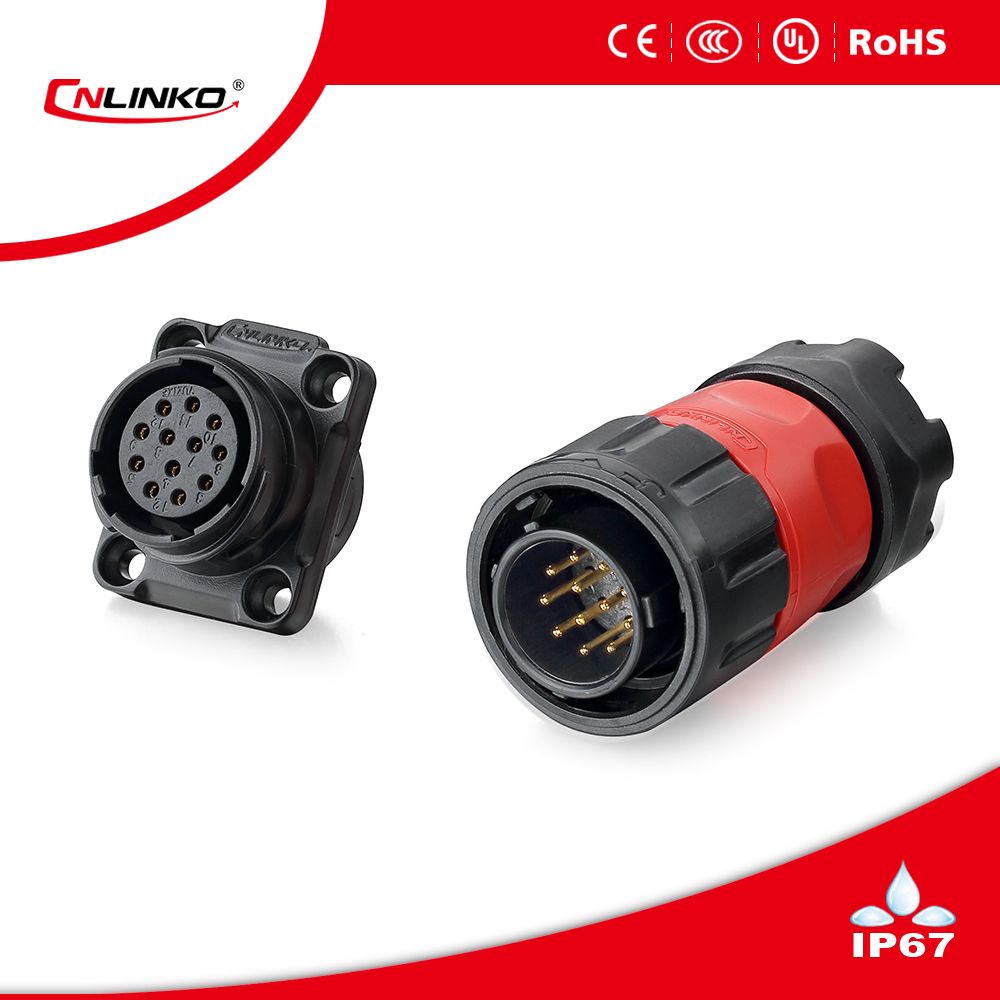

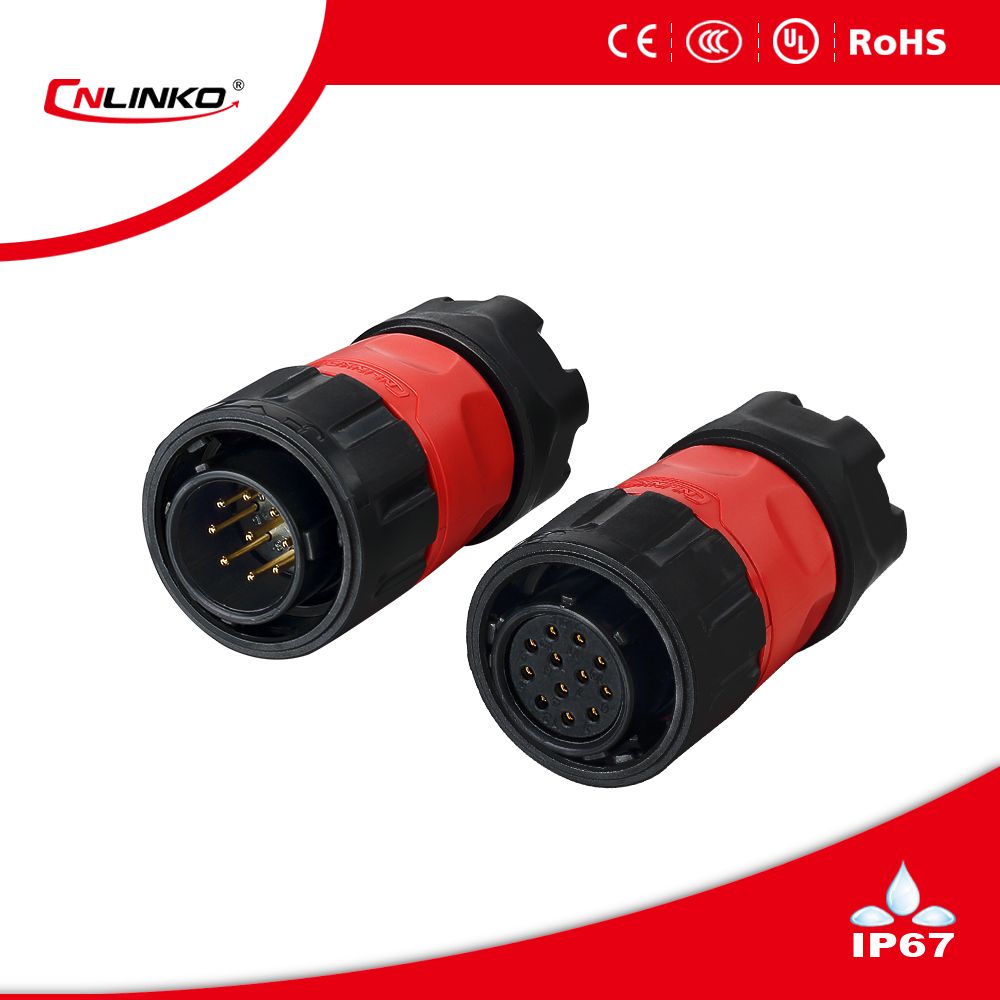

Swimming pool lights par56 led connector 12pin
bulkhead waterproof ip67 multi-pin auto electrical wire connectors
YM Series Product Description:YM series connectors, using high-end injection molding PBT material, ensuring stable performance, the multi-core design of the product, while meeting the needs of a lot of power and signal equipment, the central shell distinctive logo, highlighting the latest design cnlinko.
1: Multi-pins(2-12 PINGS) for varies industrial demands
2: PBT shell ensure fire safety, stable, compression, anti-explosion, and anti-deformation
3: Gold-plated contact, high performance of corrosion resistance and electrical
4: Conductivity effectively deals with temperature rise.
5: 1/4 mount connector, easy operation, and installation
6: Dustproof cover design under the off-working condition
7: Rated current is 12A rms
8: Protection level: IP65/67
Specifications:| YM-20-C12PE-01-001 YM-20-J12SX-01-001 |
| Connecting mode | 1/4 bayonet connect |
| Protection level | IP65/67 |
| Cable specification | 0.15mm ² ~ 0.2mm ² /26~24AWG |
| Diameter range | Φ7mm ~Φ9mm |
| Contact diameter ×Qty | Φ1.0x12 |
| Current rating(A) | 5A |
| Operating voltage(AC.V.rms) | 500V |
| Withstand voltage(AC.V)1min | 2500V |
| Insulation resistance | >500MΩ |
| Durability | ≥500 mating&unmating cycles |
| Temperature rating | -40°C~80°C |
| Prevent the combustion level | UL94-V0 |
| Temperature rise | 12A per contact at 30°C, 15A per contact at 40°C, 20A per contact at 50°C |
| Color | Red |
| Protective housing | PBT Material |
| Install method | 1/4 Quick bayonet |
| Material | |
| Shell&Insulated parts | High-performance engineering plastics |
| Hardware metal | Zinc alloy(pearl hard chromium) |
| Assembly wire | Solder |
| Copper needles | Copper alloy(gold-plated) |
| Waterproof | Silica gel |
Packaging & ShippingNormally, our price is based on our box packing.Customized packing is welcome, MOQ of printing customized box is 1000 pcs/modelDelivery Detail: 1-10 working days after received the deposit .You may choose our shipping partner or your own partner .100% T/T in advance is required after confirming the order.
Our ServicesCE,CCC,CUL,UL, ROHS, ISO9001:2008 Standard.Supply OEM service.We have a professional quality control system and R&D department to strictly manufacture each product.100,000 pcs per month.National level laboratory, and have the flexible production line, to make the quick action to urgent customized needs.We will supply the best service to you. Anything, please feel free to contact us at:
