Swing Gate/Garage Door/Automatic Gate / Photocell Safety Sensor (WS-212)

Swing Gate/Garage Door/Automatic Gate / Photocell Safety Sensor (WS-212)
Price: US $ 10-15/Piece
Trade Terms: FOB
Min Order: 1/Piece
Pay Type: L/C,T/T,D/P,Paypal
Prod Model: WS-212
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Power Input: DC12V
Technology: Infrared Through Beam
Output: Relay Output
Sensing Distance: 30 Meter
Dimension: 75*50*26mm

Product Description

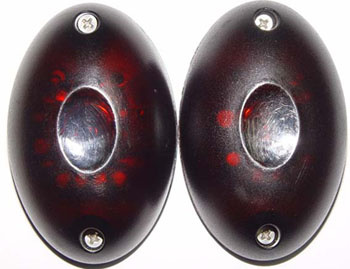

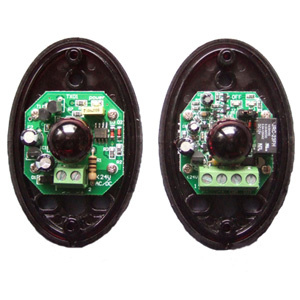

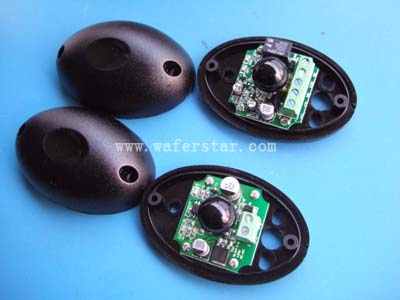

Surface Mounted photocell safety beam sensor
(Model:WS-212)
Working Swing Gate/Garage Door/Automatic Gate safety protection


SURFACE MOUNT

WEATHERPROOF HOUSING

PULSED INFRARED BEAM RANGES UP TO 20 m

BUILDING IN VARIABLE OUTPUT TYPE(NO/NC)



The WS-212 is self-contained surface mount active infrared safety beam for interior of exterior use on any automatic sliding gate ,swing gate ,garage door ,pedestrian door ,industrial door and so on.WS-212 iss fetured by a flexibility and and an easiness for universal installations.

When the infrared beam is interrupted, the WS-212's relay output signals an industrial door or gate control to open, stop or reverse. On pedestrian swing doors, the WS-212 is mounted on the guide rails. When the door is closing and the overhead safety sensor is locked out, interrupting the WS-212 beam will bring this sensor protecting the swing side of the door back into the safety circuit thus inhibiting the door from reopening.

Technical Specification Type
Technology  Active infrared
Detection MethodThrough Beam
Sensing Range30 meters
Detection modePresence(beam interruption)
Response time(Relay output)<10 ms
Hold time(Relay output) 300ms
Supply voltage12 VDC
Dimension75mm X 50mm X 26mm


Shanghai Wafer Microelectronics Co., Ltd. was built up in 2006. We are acknowledged as the leader in the development, manufacturing and distribution of sensor series for automatic doors and coin acceptors for vending machines in our local market. We also get a constant increase in the world market.

For automatic door application, Wafer manufactures automatic door sensors, automatic door safety beam sensors, infrared and microwave contactless sensor switches, active and passive infrared control systems, automatic door spare parts, vehicle loop detectors, program switch series and automatic door hopping code remote control systems.

For vending machine application, Wafer manufactures multi-coin coin acceptors, comparable type electronics coin acceptors, USB kiosk control boards, coin operated timer control boxes, GSM vending machine management units, and single type coin acceptors.

For GSM application, Wafer manufactures GSM vending machine management units, GSM-KEY automatic door or gate remote controllers, GSM water pump automatic control systems, GSM monitoring units, and GSM game machine monitoring units.

Wafer provides the customers with the best products and system solutions for automatic doors and vending machines. Wafer has built two reliable systems, including automatic door sensor system and GSM management system. We hope to have a wide cooperation with companies all over the world. We will provide you with our best products and best service.

Now, our clientsare from not only Mainland China but also other countries and regions, including Singapore, Europe, Taiwan Area, South Korea, India, Malaysia, Australia and South Africa.

Wafer has also used sensor technology expertise to expand markets, such as vehicle detective system, safety alarm system, transportation and industrial application system.

Wafer uses the best software technology and hi-tech electrical system design for the management of vending machines.

With our excellent staff, advanced and efficient test equipment, perfect sales network, and strict QA systems, we have all reasons to be confident on products and our service. We have all reasons to make our customers be confident on us as well. Let's enter a brighter future with you together.
